14 Attaching chair upholsteries

14 Attaching chair upholsteries

14.1 Attaching upholstery support plate

Steps
70
Planmeca Compact i3
NOTE
The pictures in this section are taken from other Planmeca Compact i dental
unit model, but the instructions apply also to Planmeca Compact i3.

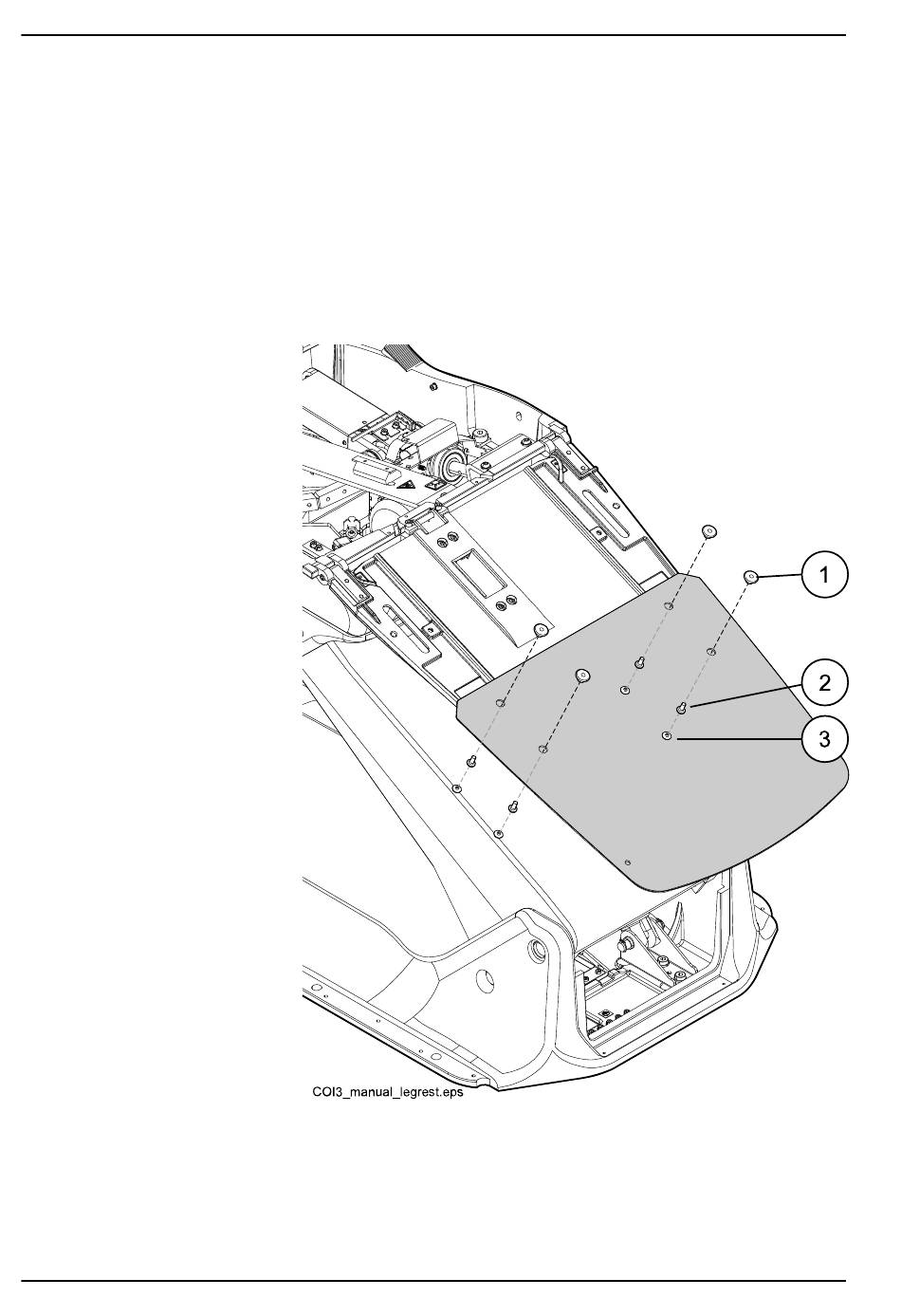

1. Attach the upholstery support plate to the legrest with four sets of sliding
part (1), screw ISO7380-1 M6x12 (2) and protective cap (3).
