10 Installing monitor
54
Planmeca Compact i3

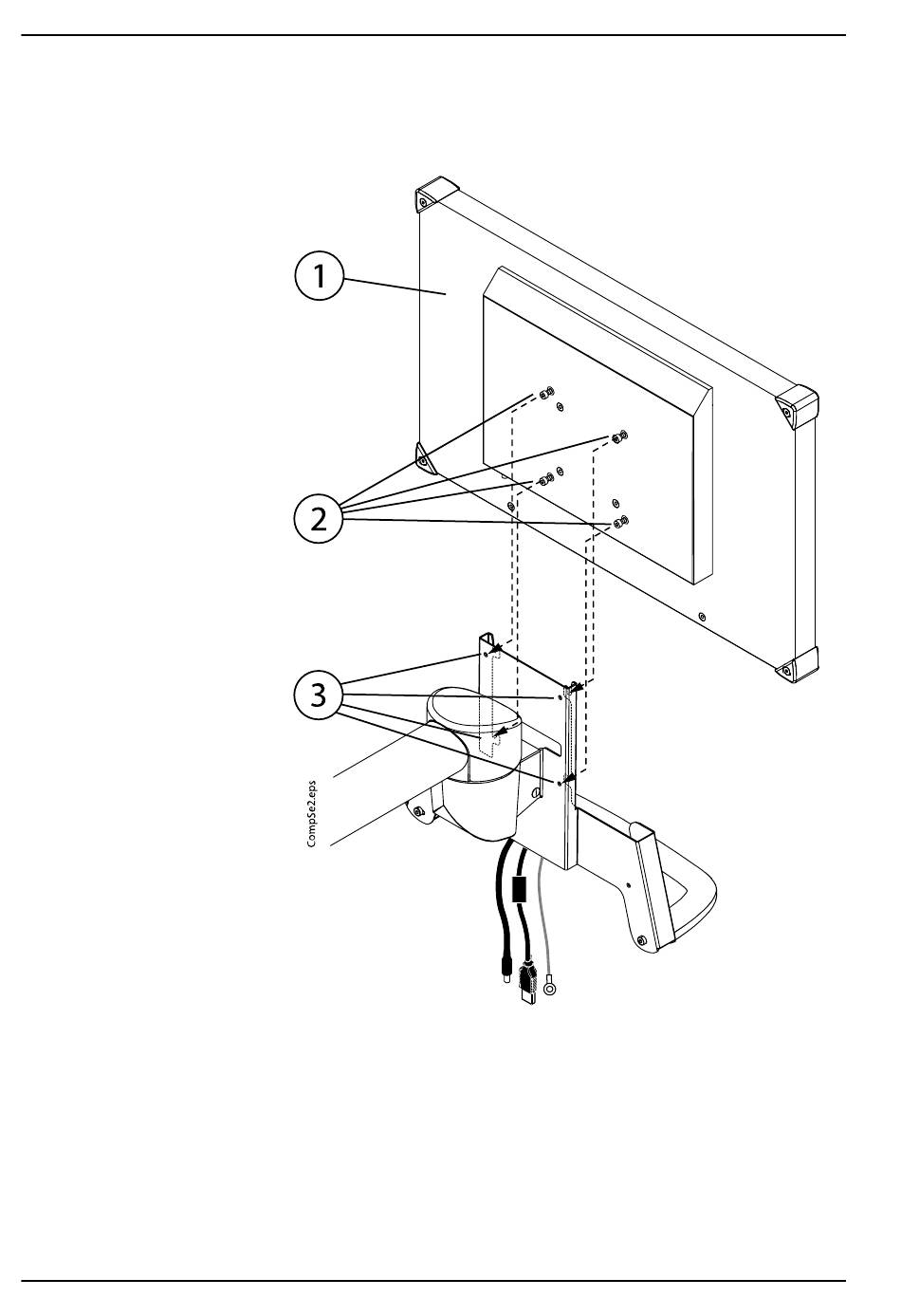

The monitor (1) is attached to the adapter with four attachment screws.
Attach the monitor attachment screws (2) tentatively to the monitor using a 3
mm Allen key. Lift the monitor to its position and tighten the attachment
screws (3).
Installation manual
