Installation manual

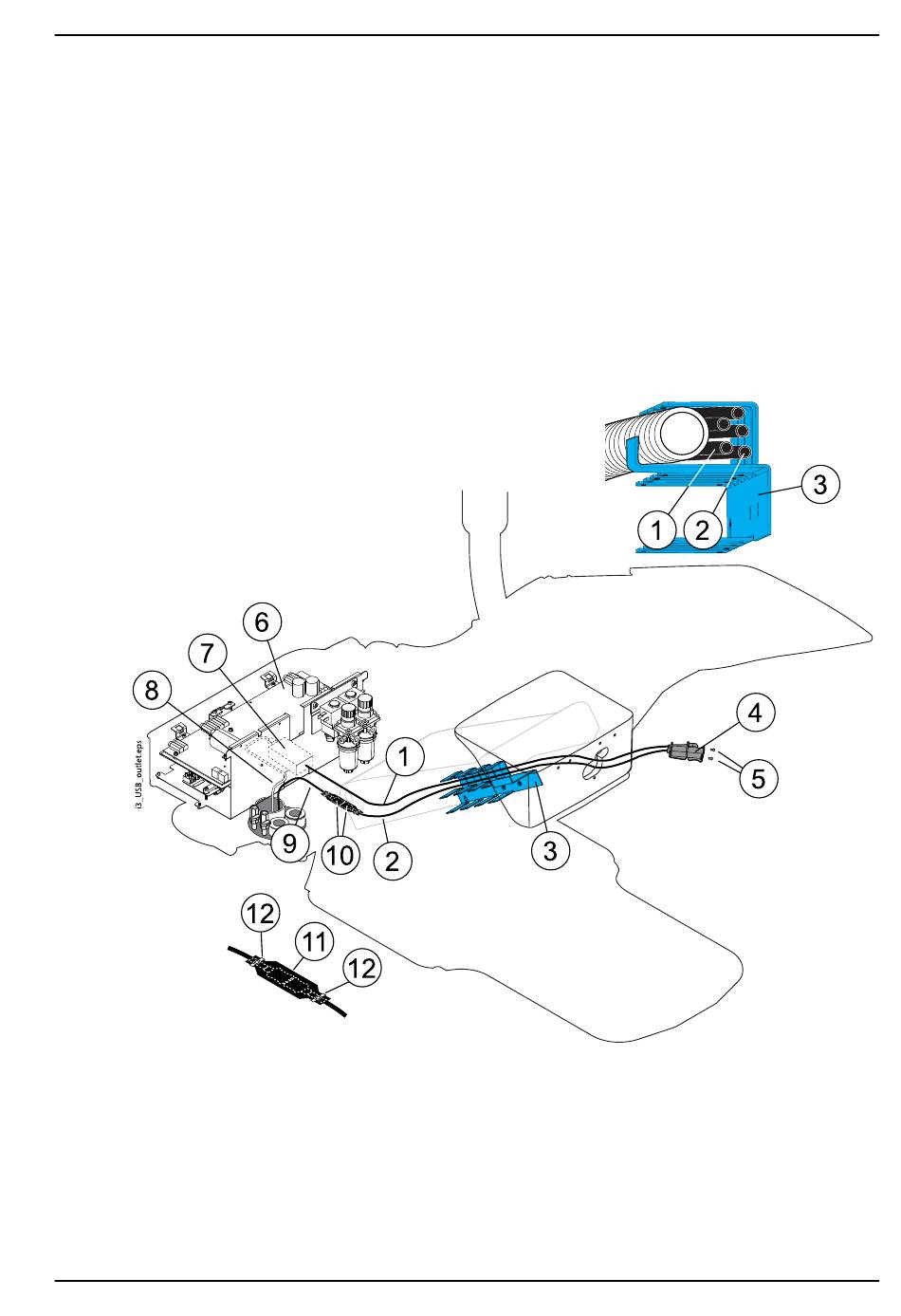

cable guide and cables through the lifting mechanism to the
suction element.
In the lifting mechanism, the cables are placed on the upper cable
duct (3).
The suction element end of the cables (4) will later be attached to
the USB opening in the suction element with two attachment
screws (5), see step 5e.
2.c.
Lift the Main control PCB up from its position (6) and place the
Emerald power supply in the junction box (7).
2.d.
Connect the Emerald power cable (1) to the power supply.
2.e.
Connect (10) the USB cable coming from the PC (9) to the active
repeater cable (2).
2.f.
Shield the connection (11 and 12).
3. Install the suction tube.
3.a.
Attach a draw cord to the suction tube.
3.b.
With the help of the draw cord, route the suction tube (1) through
the lifting mechanism from the opening for the suction element to
the junction box.
In the lifting mechanism, the suction tube is placed on the upper
cable duct (2).
12 Installing suction element
Planmeca Compact i3
61
