7 Installing OP delivery arm
7.3 Installing safety switch
Steps
7.4 Attaching covers
Steps
32
Planmeca Compact i3

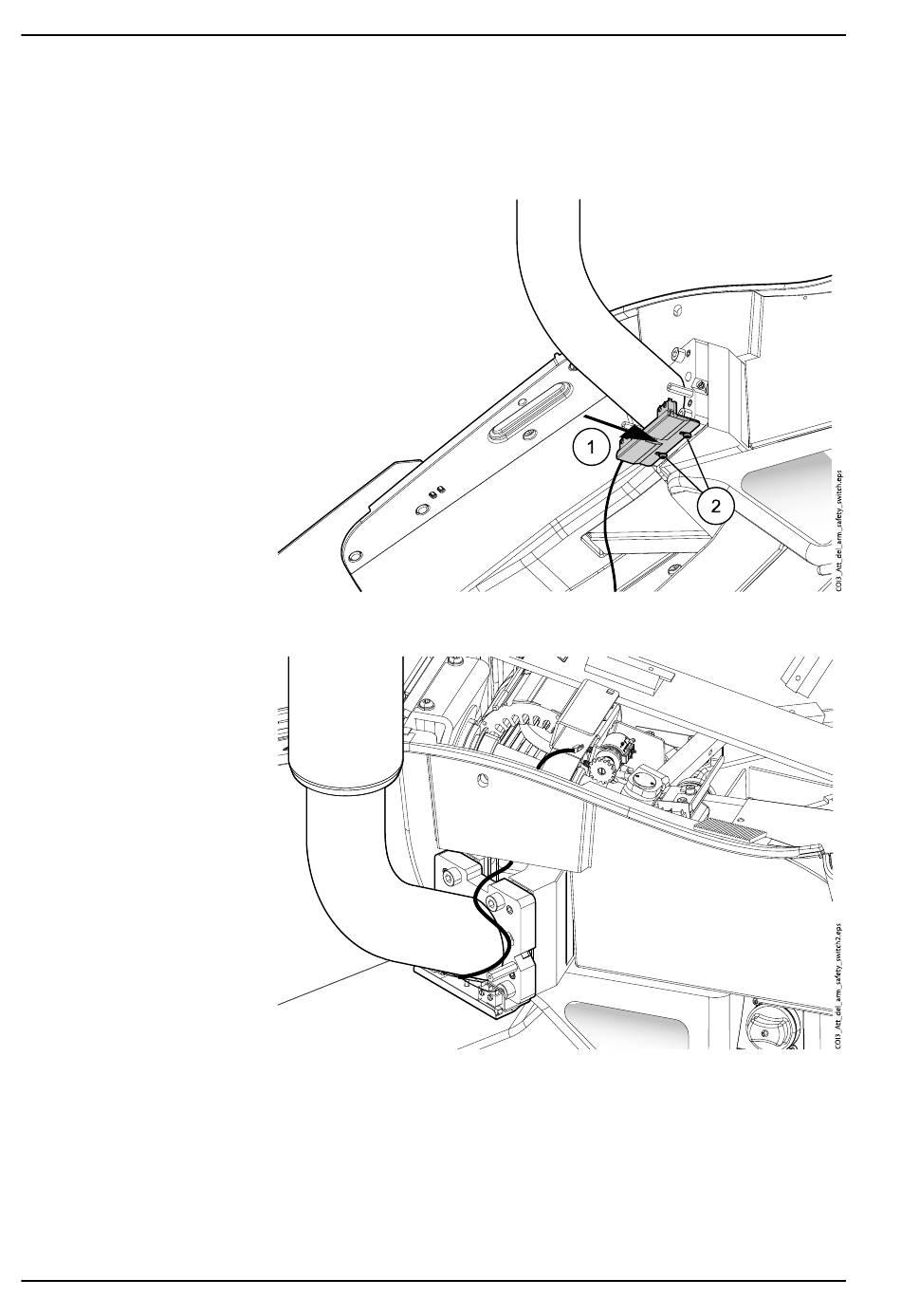

1. Place the microswitch assembly (1) to its position and secure it with two
screws ISO7380-1 M4x8 (2).
2. Route the microswitch cable into the seat casting as shown on the figure
below.
3. Remove the jumper from the seat microswitch and connect the
microswitch cable to that connector.
1. Attach the hex spacers to the adapter tube plate.
Installation manual
