Installation manual

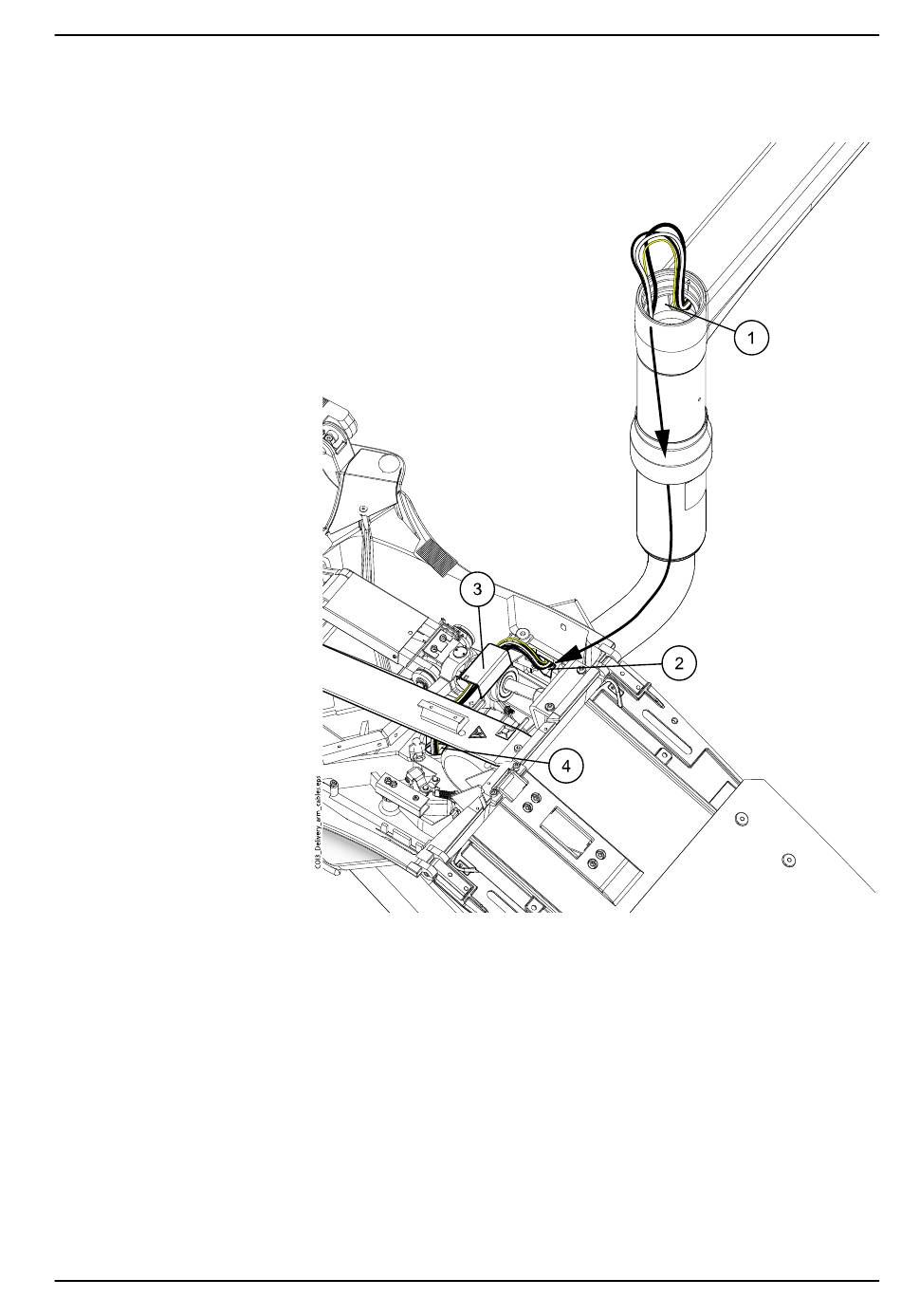

2. Route the cable guide together with the cables and tubes through the
adapter tube (1) and into the seat (2). Route the cables and tubes below
the mounting plate (3) and through the seat opening (4).
3. Route the cables and tubes from the seat (1 and 2) along the lifting
mechanism and to the junction box (3).
In the lifting mechanism, the cables and tubes are placed on the lower
cable duct.
7 Installing OP delivery arm
Planmeca Compact i3
29
