Installation manual
NOTE

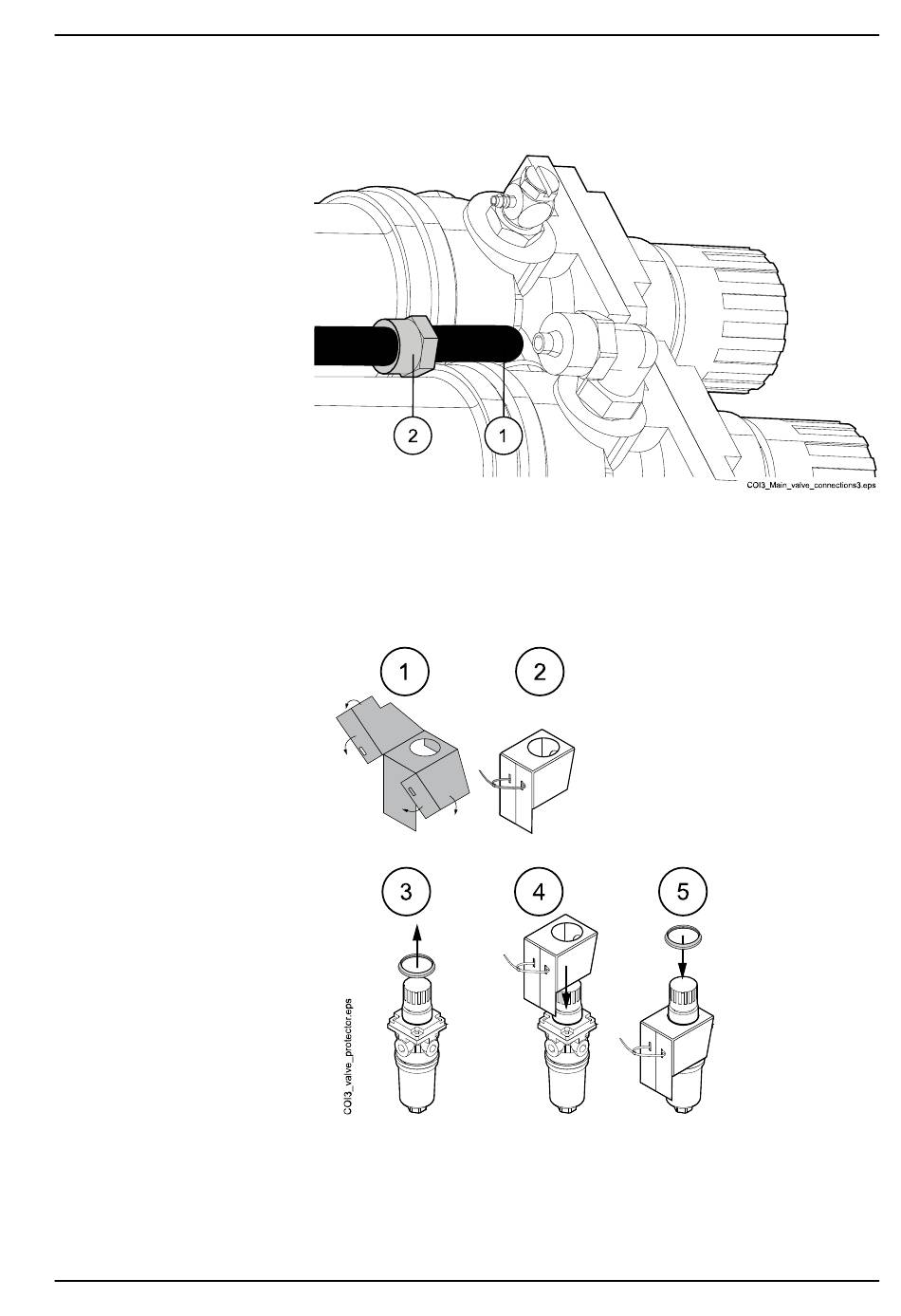

Dental units without city water: Connect the air tube to the nipple in the
front of the air pressure regulator (1). Secure the air tube (2).
3. Shield the water main valve with a main valve splash protector.
3.a.
Fold the splash protector (1, 2).
3.b.
Remove the lock ring from the water main valve (3).
3.c.
Place the splash protector on the water main valve (4).
3.d.
Place the lock ring back on the water main valve (5).
7 Installing OP delivery arm
Planmeca Compact i3
37
