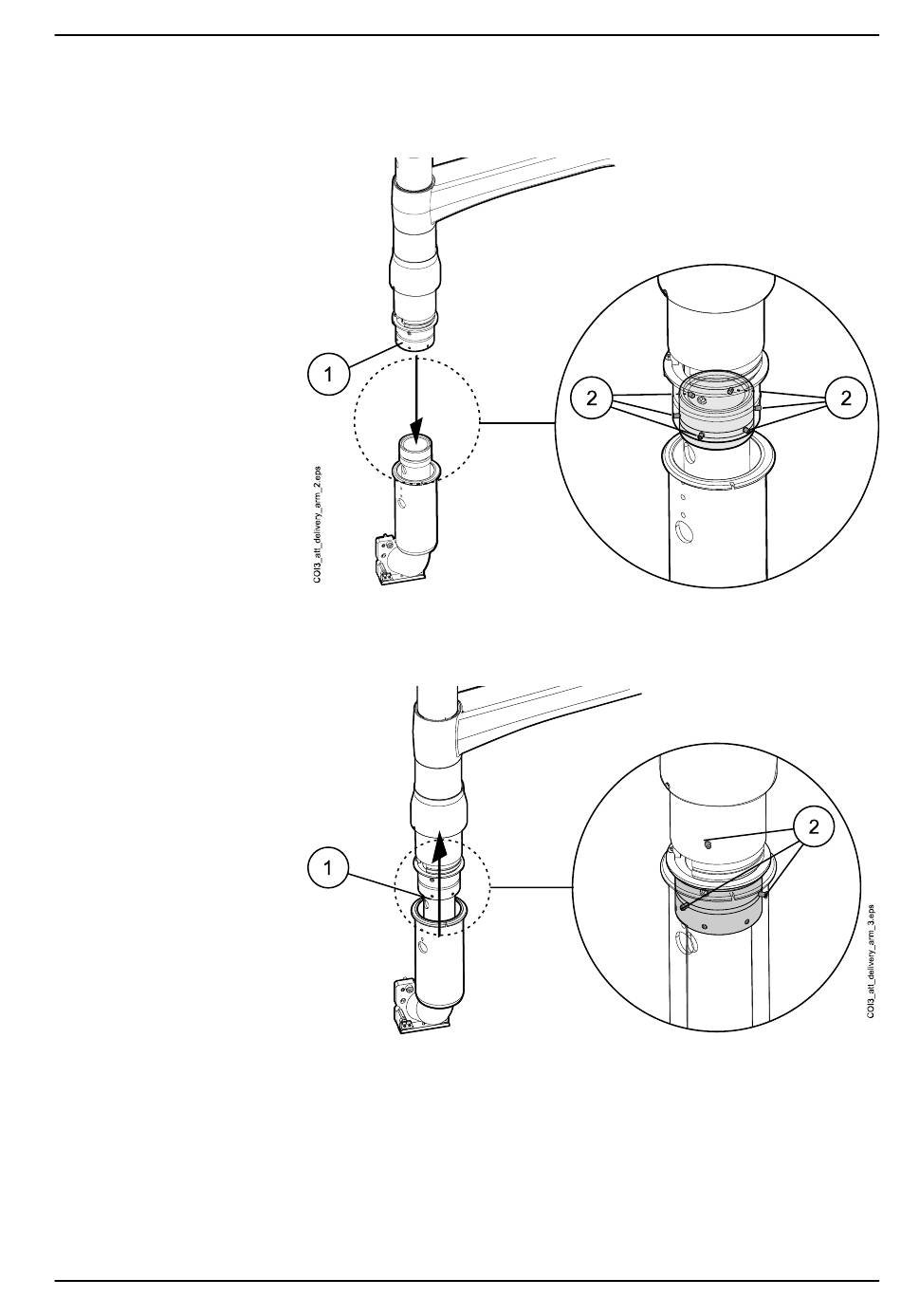

10. Lift the OP delivery arm to the adapter post (1) so that the rotation limiter
screw is in the direction shown in step 9 (rotate the arm collar, if
needed). Secure the delivery arm to its position with six set screws M6x8
DIN914 (2).
11. Make sure that the joint cover is located so that the openings on the joint
cover are towards the chair legrest. Lift the joint cover upwards (1).
Secure the joint cover to its position with three set screws M4x6 DIN916
(2).
7 Installing OP delivery arm
Planmeca Compact i3
27
