12 Installing suction element

12 Installing suction element
Before you begin
About this task
Steps
60 Planmeca Compact i3
Swivel the chair to a 90° position so that the vertical arm is facing towards
the junction box. For instructions, see section "Chair swivel" on page 59.
NOTE
The suction element is an optional feature.

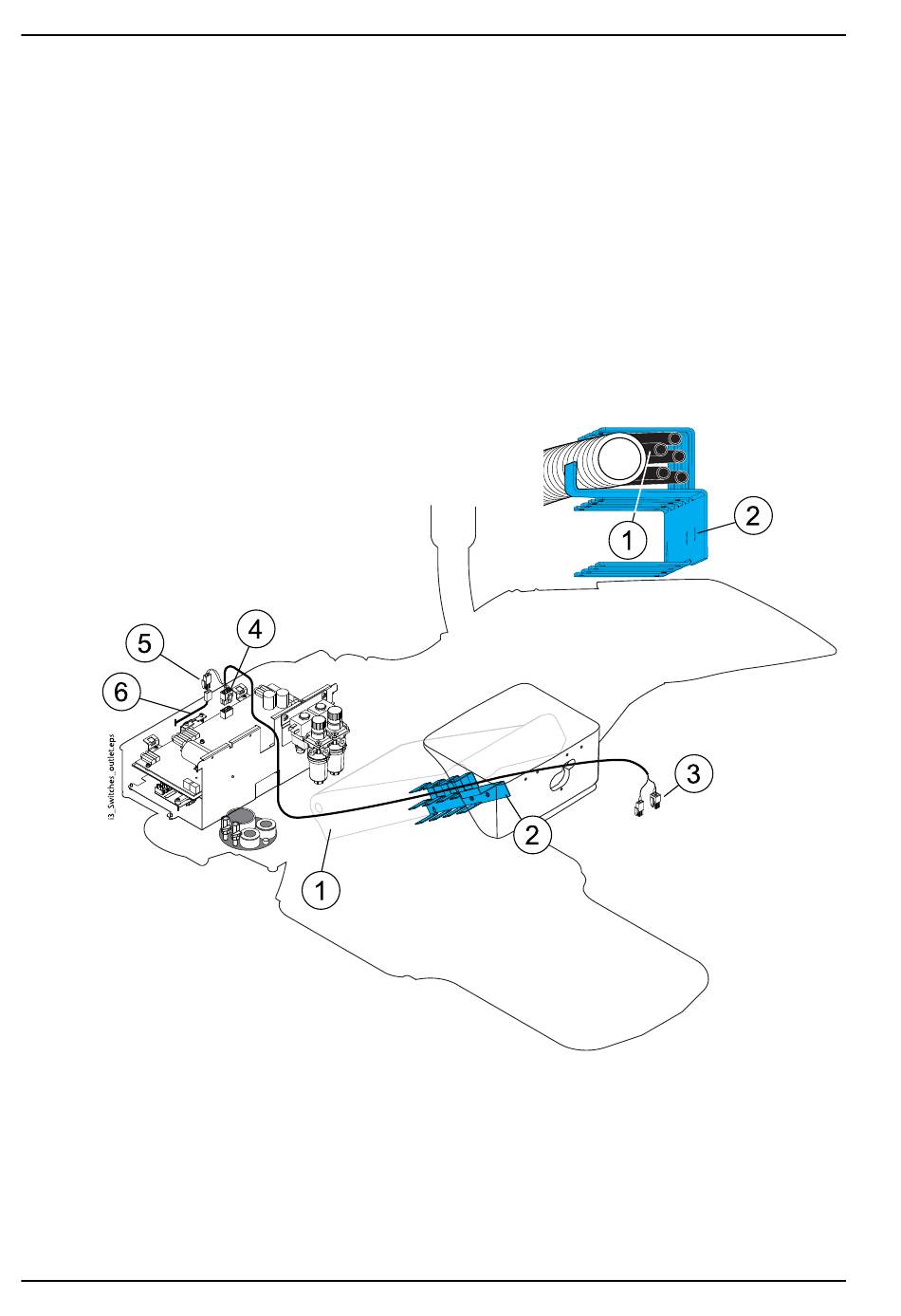

1. Check that the suction arm and safety extension cable is installed to the
lifting mechanism (1-6).
2. Install the Planmeca Emerald USB cables.
NOTE
The Planmeca Emerald intraoral scanner is an optional feature.
2.a. Route a cable guide through the lifting mechanism.
2.b. Attach the Planmeca Emerald active repeater and power cables (1
and 2) to the cable guide on the junction box side and route the
