14 Attaching chair upholsteries
14.4 Attaching armrests
Steps
76
Planmeca Compact i3

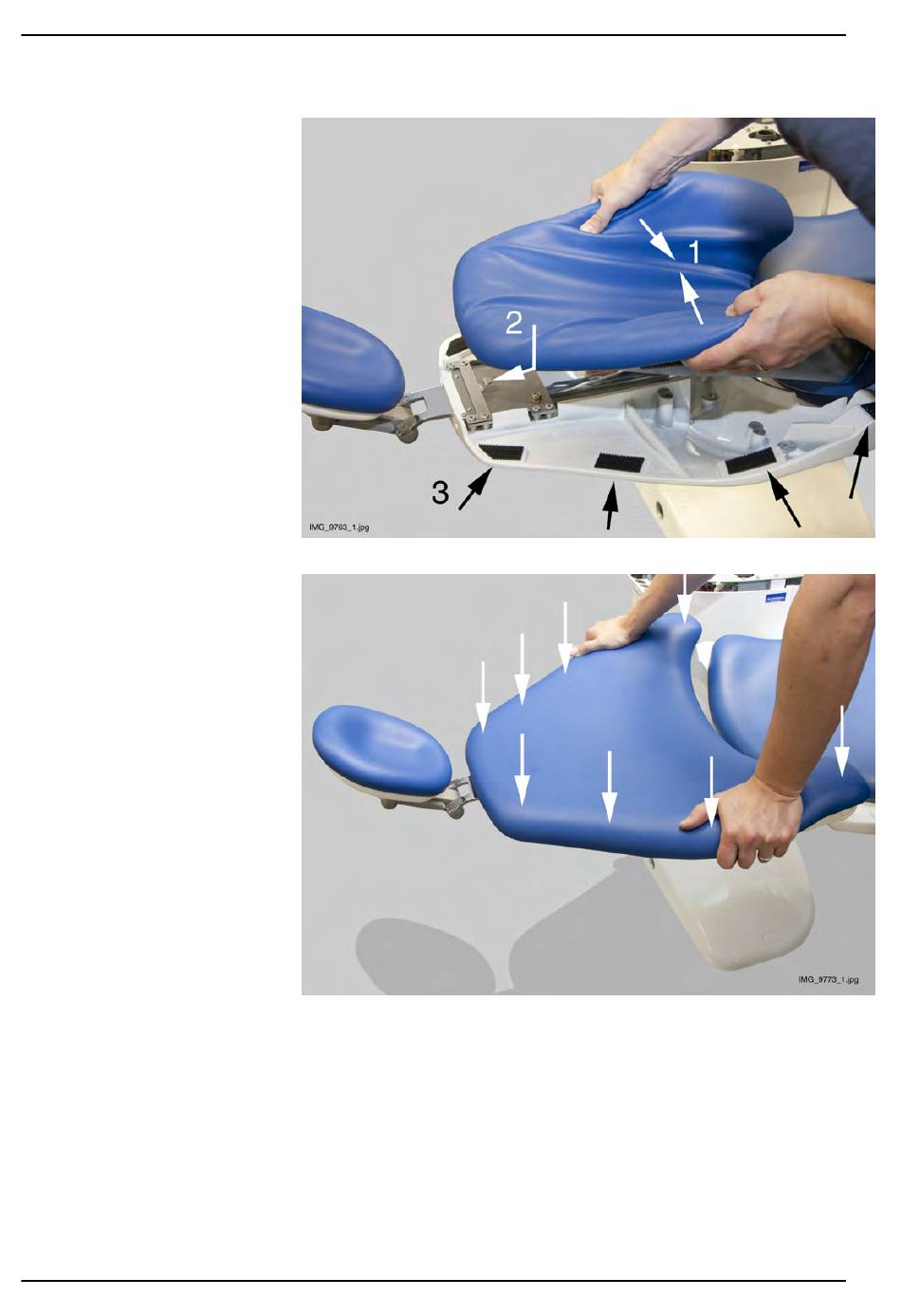

into the groove of the upholstery's backplate (2). Press the upholstery
against the velcro tape counterparts (3).
2. Firmly press the upholstery outer edges.
1. Unscrew the armrest plate attachment screw (1) and remove the plate
(2). Attach the armrest plate with an opening (3) to the seat. Place the
armrest attachment pin to the opening on the seat in a position shown in
Installation manual
