Planmeca ProScanner
®
user's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProScanner and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planmeca ProScanner

Summary of Contents for Planmeca ProScanner

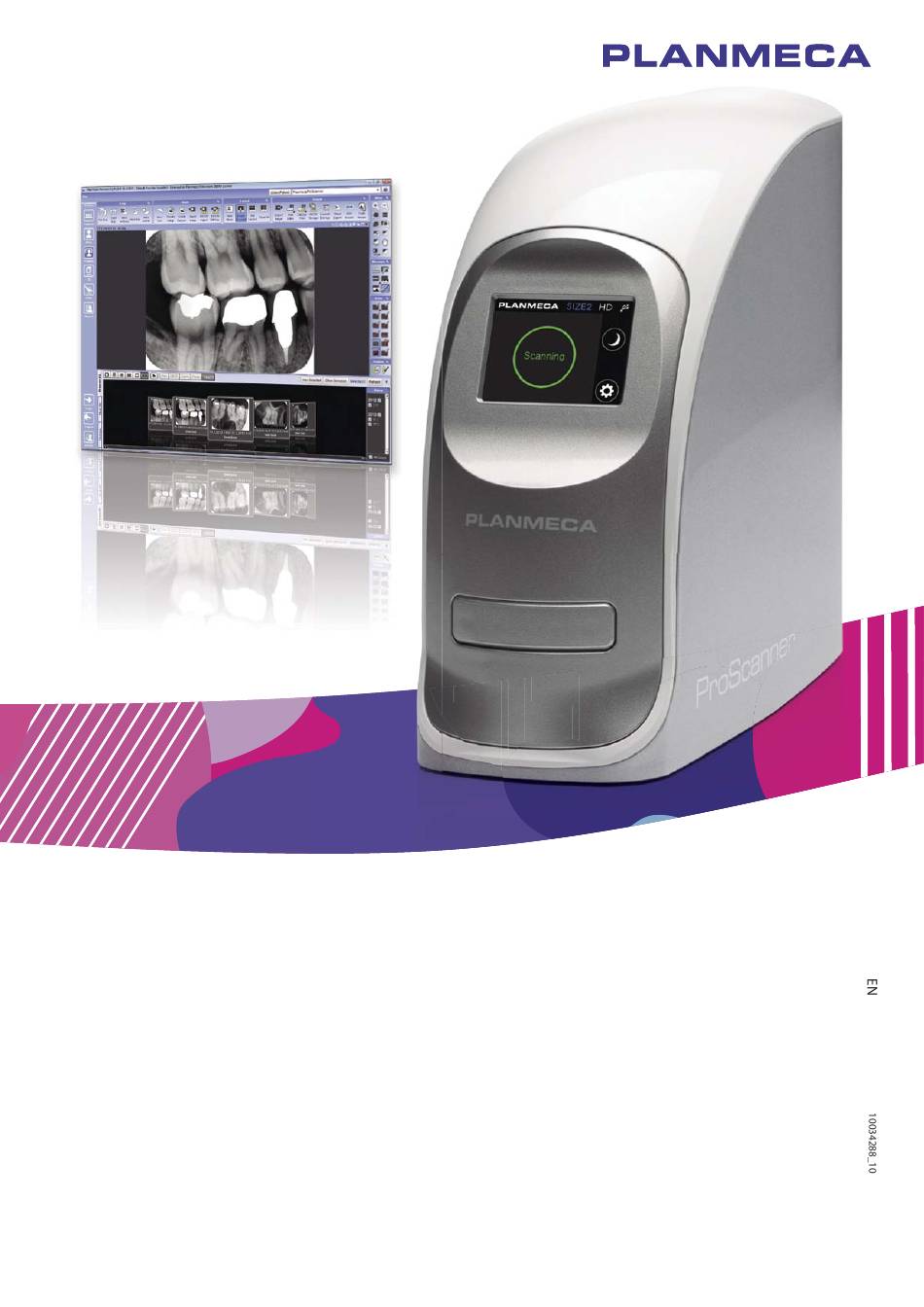

  • Page 1 Planmeca ProScanner ® user's manual...

  • Page 3: Table Of Contents

    8.2 1-to-1 Ethernet network configuration ...............14 8.3 N-to-N Ethernet ....................14 SYSTEM SETUP ..................15 9.1 Scanner placement ...................15 9.2 Planmeca Romexis and Planmeca ProScanner USB driver installation ..16 9.3 Planmeca ProID driver installation ..............17 9.4 Connecting cables ....................21 9.5 Switching on the scanner ..................24 9.6 Installing calibration files ...................24...
  • Page 4 IEC 60364 - equipment is used according to the operating instructions. Planmeca pursues a policy of continual product development. Although every effort is made to produce up-to-date product documentation this publication should not be re- garded as an infallible guide to current specifications. We reserve the right to make changes without prior notice.

  • Page 5: Introduction

    The system consists of a scanner, reusable imaging plates, RFID reader (optional) and workstation software. NOTE This manual is valid for ProScanner SW revision 1.0.0.211 or later. NOTE This device must be operated in a radiological environment by qualified personnel only.

  • Page 6: Associated Documentation

    FOR US USERS Federal law restricts this device to sale by or on the order of a health care professional 2 ASSOCIATED DOCUMENTATION • Planmeca Romexis User’s manual (publication number 10014593) • Planmeca Romexis Installation manual (publication number 10014600) Planmeca ProScanner...

  • Page 7: Registering Your Scanner

    The serial number can be found on the scanner’s device plate. The serial number is formed of the numbers that come after (10) and after (21). Thus the serial number of this example equipment is formed as follows: FR1101AH100230. User’s & installation manual Planmeca ProScanner...

  • Page 8: Symbols On Product Labels

    If unauthorized changes have been made to delivered system and accessories, the warranty by Planmeca Oy becomes void. Planmeca Oy will not accept any responsibility or liability for the improper functioning of the product in such a...
  • Page 9 WITH RESPECT TO ELECTRIC SHOCK, FIRE, AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH UL60601-1 / CAN / CSA CSS.2 No. 601.1 3SE3 The software is created by 3Disc Imaging and fulfils the requirements of Directive 93/42/EEC. User’s & installation manual Planmeca ProScanner...

  • Page 10: Safety Precautions

    Failure to comply with these safety guidelines may result in injury to operator, service personnel, or patient. Planmeca assumes no liability for failure to comply. CAUTION Any changes to software and hardware delivered by Planmeca may only be made with prior written permission from Planmeca.
  • Page 11 • The power cord, the power adapter or the Planmeca ProID USB cable has been damaged. • An object has fallen into the device. • The device has been exposed to water.

  • Page 12: Laser Safety Statement

    WARNING Use of controls or adjustments or perfor- mance of procedures other than those speci- fied herein may result in hazardous radiation exposure. Planmeca ProScanner User’s & installation manual...

  • Page 13: System Requirements

    If possible, isolate the system from office network. NOTE Please note that these requirements are recommendations. Not meeting them may lead to degraded performance. For latest up-to-date system recommendations http://www.planmeca.com/en/ browse to Software/Desktop/Planmeca-Romexis/ Compatibility-and-DICOM/. User’s & installation manual Planmeca ProScanner...
  • Page 14 Windows: Java SE Runtime Platform, Environment 8 (JRE) Environment 8 (JRE) Standard Apple OS X: Java SE Runtime Apple OS X: Java SE Runtime Edition Environment 6 (JRE) Environment 6 (JRE) (included in installation) (included in installation) Planmeca ProScanner User’s & installation manual...

  • Page 15: Unpacking Planmeca Proscanner

    7 UNPACKING PLANMECA PROSCANNER 7 UNPACKING PLANMECA PROSCANNER Planmeca ProScanner is shipped in a custom designed container to protect the scanner from external shock. Before unpacking the scanner, inspect the shipping container for damage. In case the container is damaged, notify the shipper immediately.

  • Page 16: Planmeca Proid Kit (Optional)

    • Imaging plate starter kit • Hygienic bags, size 0, 100 pcs • Hygienic bags, size 2, 100 pcs • Planmeca Manuals media • Planmeca Romexis Installation & License media 7.2 Planmeca ProID kit (optional) • Planmeca ProID RFID reader • Mini USB cable Planmeca ProScanner User’s &...

  • Page 17: System Description

    N-to-N Ethernet mode and 1-to-1 Ethernet mode cannot be used in the same network at the same time. 8.1 USB or direct 1-to-1 Ethernet Planmeca ProScanner is attached to the PC using direct USB or Ethernet connection. Crossed Ethernet cable must be used. Planmeca...

  • Page 18: 1-To-1 Ethernet Network Configuration

    8 SYSTEM DESCRIPTION 8.2 1-to-1 Ethernet network configuration Planmeca ProScanner is attached to a HUB/ switch using Ethernet connection. Crossed or straight Ethernet cable can be used depending on the HUB/switch type. Planmeca Romexis PC ProScanner Ethernet cable Max. 100m Ethernet cable Max.

  • Page 19: System Setup

    Do not place anything on top of the reader. CAUTION This equipment may be interfered with or may interfere with electromagnetic or other interferences. Assure a distance of minimum 1.0m between reader and neighbouring equipment. User’s & installation manual Planmeca ProScanner...

  • Page 20: Planmeca Romexis And Planmeca Proscanner Usb Driver Installation

    9 SYSTEM SETUP 9.2 Planmeca Romexis and Planmeca ProScanner USB driver installation 1. Install Romexis from the Romexis installation media delivered together with the unit. ProScanner 2. Tick the checkbox during Romexis Component Selection installation in dialogue under Client Components...

  • Page 21: Planmeca Proid Driver Installation

    9 SYSTEM SETUP The USB driver can also be installed separately from DidapiKit by selecting the ProScanner USB driver in the component selection window. 9.3 Planmeca ProID driver installation When attaching the Planmeca ProID RFID reader to the computer, the driver is installed automatically if the computer is connected to the Internet.
  • Page 22 9 SYSTEM SETUP 2. In the following window select Extract. 3. Click Next. Planmeca ProScanner User’s & installation manual...
  • Page 23 9 SYSTEM SETUP 4. Click Finish to complete the installation. 9.3.2 Method 2 1. Start the installation by inserting the Planmeca Romexis installation media to the PC. Start 2. From the Windows menu select Control Panel. Device Manager 3. Go to...
  • Page 24 9 SYSTEM SETUP 7. Click Next. When the driver is installed correctly, a USB Serial Converter is added under Universal Serial Bus Controller category and a new USB Serial Port is displayed under Ports category. Planmeca ProScanner User’s & installation manual...

  • Page 25: Connecting Cables

    Do not use the cord with any electrical power supply that does not meet the ratings dis- played on the power adapter. Usage of any other power adapter may lead to fire or elec- trocution. User’s & installation manual Planmeca ProScanner...
  • Page 26 Do not unplug the power cord or turn the power switch off during scanning. 1. Connect the power cord to the back side of the scanner. 2. Connect the other end of the cord to a grounded power outlet. Power cord connector Planmeca ProScanner User’s & installation manual...
  • Page 27 9 SYSTEM SETUP 9.4.2 USB interface cable The scanner interfaces with computer via USB 2.0 cable. NOTE Use the USB cable delivered with Planmeca ProScanner. CAUTION Use only devices meeting the requirements of IEC60950-1 or IEC60601-1 when con- necting to the Planmeca ProScanner via USB port.

  • Page 28: Switching On The Scanner

    ProScannerAdmin.exe. 1. To retrieve the calibration files, connect the scanner using USB connection (see section 8.1 “USB or direct 1-to-1 Ethernet” on page 13). 2. Make sure Planmeca ProID is connected to the PC. Client 3. Browse to Planmeca Romexis installation folder on your computer.
  • Page 29 5. When using shared scanners, repeat the same procedure with all used scanners and copy all calibration file folders to all client computers. As a safety precaution, it is suggested that a backup of the files is created. User’s & installation manual Planmeca ProScanner...

  • Page 30: Connecting Scanner To Network

    ProScannerAdmin.exe. By default the CONNECTION parameter is set to AUTO in which case the HOST parameter is not used. The IP-address of the scanner is automatically detected. //-----------------------------FireCR.ini------------------- [SCANNER] CONNECTION=AUTO [NETWORK] HOST=0.0.0.0 //-------------------------------------------------------------- Planmeca ProScanner User’s & installation manual...
  • Page 31 CONNECTION parameter is by default set to AUTO. The CONNECTION parameter cannot be set to MANUAL in N-to-N mode. However, make sure the Planmeca ProID reader is attached to the PC before attempting to connect from PC to the scanner in N-to-N mode.

  • Page 32: Main Parts

    The tray is intended for placing imaging plates. To start scanning, the tray is inserted into the scanner manually. The outlines on the tray indicate the correct placement for imaging plates of different sizes. Planmeca ProScanner User’s & installation manual...

  • Page 33: Touch Panel Display

    10 MAIN PARTS 10.2 Touch panel display The touch panel display indicates the status of the Planmeca ProScanner and is used to adjust the settings of the scanner. 10.2.1 Initialization (booting screen) The booting screen is displayed during system initialization after the scanner is switched on.
  • Page 34 HD (High resolution) SD (Standard resolution) Connection status No connection Network connection USB connection Sleep button See section 10.2.3 “Sleep mode” on page 31. Settings button See section 10.2.5 "Settings" on page 32. Planmeca ProScanner User’s & installation manual...
  • Page 35 To start scanning insert the tray. The UID code is the image plate specific serial Image number. The code is saved to the properties window in Planmeca Romexis together with the image. User’s & installation manual Planmeca ProScanner...
  • Page 36 To access the menu touch this button. Settings In the menu you can set the resolution and adjust the system, language and network settings. Resolution Choose scanning resolution between standard (SD) and high resolution (HD). Planmeca ProScanner User’s & installation manual...
  • Page 37 With auto trim enabled, the excess white area around the image will be automatically removed. Language Language Click the menu to select the language for the user interface. Network Network related settings. User’s & installation manual Planmeca ProScanner...
  • Page 38 The system will restart automatically. Default gateway Network From the menu select Default Gateway. Enter gateway address manually. Save the new gateway by touching the check mark button. The system will restart automatically. Planmeca ProScanner User’s & installation manual...
  • Page 39 10 MAIN PARTS 10.2.6 System information Clicking the Planmeca logo opens a window displaying scanner related information. 10.2.7 System error An unexpected system error occurred. Contact technical support. User’s & installation manual Planmeca ProScanner...

  • Page 40: Capturing Images With Planmeca Proscanner

    1. Open the Planmeca ProScanner imaging window in Planmeca Romexis 2D module. 2. Show the imaging plate to the Planmeca ProID reader. When the imaging plate serial number has been recognized the serial number appears on the Planmeca Romexis Imaging window (see Planmeca Romexis 2D User’s Manual).

  • Page 41: Scanning / Erasing Imaging Plates

    1. Open the Planmeca ProScanner imaging window in Planmeca Romexis 2D module (if not already open). When the following screen appears the scanner is ready for scanning and the imaging plate can be placed on the tray.
  • Page 42 NOTE If the tray cannot be inserted check that the Planmeca Romexis imaging window is open and that the plate has been read with Planmeca ProID (when applicable) 4. When the tray is attached to the interlock remove your hand from the opening.
  • Page 43 5. When the tray has ejected gently lift the plate off of the tray. When the plate has been removed, the preview image will disappear from the ProScanner touch panel display. Alternatively, the preview image can be hidden by touching the screen when the plate is still on the tray.

  • Page 44: Retrieving Stored Images

    Planmeca Romexis 2D Imaging User’s manual. NOTE Retrieving the images is not possible in N-to-N Ethernet mode i.e. when using ProScanner with Planmeca ProID reader. If the image must be retrieved when the scanner is connected using 1-to-1 Ethernet or USB mode.
  • Page 45 14 RETRIEVING STORED IMAGES 3. From the bottom of the Planmeca ProScanner image capturing window select Retrieve image. 4. Select the desired image from the image list. NOTE Make sure that the retrieved image belongs to the selected patient. User’s & installation manual...
  • Page 46 14 RETRIEVING STORED IMAGES The selected image is transferred to Planmeca Romexis. Planmeca ProScanner User’s & installation manual...

  • Page 47: Exposure Values

    15 EXPOSURE VALUES 15 EXPOSURE VALUES The following tables show the recommended exposure values for Planmeca ProScanner Short cone 20 cm (8”) exposure values TIME MAXI 70 kV/ 8 mA child MAND MAXI 66 kV/ 8 mA child MAND MAXI...

  • Page 48: Use, Care, Maintenance And Infection Control Of Imaging Plates

    Before using the plates, read carefully the instructions delivered inside the imaging plate kit. NOTE Only Planmeca imaging plates can be used with Planmeca ProScanner. NOTE Handle the imaging plates with care. Damage in the plate can result in the production of artifacts that may interfere with diagnosis.

  • Page 49: Using Hygienic Bags

    WARNING Active side of the imaging plate should face the blank side of the hygienic bag and the x- ray source. User’s & installation manual Planmeca ProScanner...

  • Page 50: X-Ray Exposure

    The blank side of the hygienic bag (active side of imaging plate) must face the tooth and X-ray source. 16.4 Cleaning imaging plates Clean imaging plate using soft lint-free cellulose cloth with Ethanol (99.7%). Planmeca ProScanner User’s & installation manual...

  • Page 51: Cleaning Planmeca Proscanner

    17 CLEANING PLANMECA PROSCANNER 17 CLEANING PLANMECA PROSCANNER NOTE Do not try to clean inside the Planmeca ProScanner. WARNING There are no user serviceable parts inside the Planmeca ProScanner and Planmeca ProID reader. They should only be opened and serviced by qualified service personnel.

  • Page 52: Shipping

    If this is no longer available, we recommend carefully wrapping the Planmeca ProScanner in at least 75 mm (3 inch) and the Planmeca ProID RFID Reader in at least 25 mm (1 inch) of foam or bubble pack sheeting. The wrapped device should then be placed in a sturdy cardboard carton.

  • Page 53: Disposal

    Do not dispose of any part of this equipment without consulting a Plan- meca’s representative first. Planmeca does not assume any responsibility for damage resulting from disposal of this equipment without consulting Planmeca. In order to reduce the environmental load over the product’s entire life cycle, Planmeca’s...

  • Page 54: Technical Specifications

    10.4 (H) x 4.7 (W) x 12.5 (D) inch Weight 5.5 kg (12.1 lbs) Power requirements 100 ~ 240V / 50 ~ 60Hz, 30W Planmeca ProID RFID reader Dimensions 27 x 60 x 96 (H x L x W) Weight Frequency 13.56 MHz...

  • Page 55: Operating Conditions

    Pollution degree Ingress of liquids IPX0 Altitude Up to 2,000m Protective class Class 1 Equipment maintenance No user maintenance is required and no service is allowed. Please contact technical support if there is a problem. User’s & installation manual Planmeca ProScanner...

  • Page 56: Appendix A: Exposure Value Tables For Planmeca Prox

    Appendix A: Exposure value tables for Planmeca ProX A.1 Default exposure values The following table shows the default exposure values for Planmeca ProScanner with no target selected Short cone Long cone Adult 0,125 Adult 0,25 Child Child A.2 Preprogrammed settings values Short cone 20 cm (8”)
  • Page 57 Appendix A: Exposure value tables for Planmeca ProX A.2 Preprogrammed settings values Long cone 30 cm (12”) PREMOLARS AND INCISORS MOLARS CANINES time time time Adult Maxilla 0.16 0.25 Mandible 0.125 0.16 Child Maxilla 0.125 0.16 Mandible 0.125 0.16 OCCLUSAL...

  • Page 58: Appendix B: Installing Planmeca Proscanner On Macos

    Appendix B: Installing Planmeca ProScanner on MacOS B.1 Romexis and ProScanner USB driver installation The Planmeca ProScanner USB does not require a separate driver installation as the driver is installed automatically during Planmeca Romexis client installation. Therefore (contrary to Windows version): •...

  • Page 59: Installing Calibration Files

    On Mac OS the calibration files are installed to Romexis client installation folder. B.5 Setting on windowed option If Planmeca Romexis is not used in Full screen mode with MacOS the ProScannerApp opens in the background. To avoid this set the windowed option on.
  • Page 60 B.5 Setting on windowed option Appendix B: Installing Planmeca ProScanner on MacOS Contents/ 3. Open the Romexis file in subfolder MacOS with a text editor. -windowed 4. Add parameter to Romexis file: host=localhost language=en -windowed \ 5. Save the file and restart Romexis.
  • Page 62 Planmeca Oy | Asentajankatu 6 | 00880 Helsinki | Finland tel. +358 20 7795 500 | fax +358 20 7795 555 | sales@planmeca.com | www.planmeca.com...
