SECTION 1
 GENERAL
• Operating frequency range:
• Type of emission:
• Antenna impedance:
• Antenna connector type:
• Operating temperature range:
• Frequency stability:
• Frequency resolution:
• Transfer rate:
• Current drain:
• Power supply voltage:
• Dimensions:
(Projections not included)
• Weight (Approximate):
 TRANSMITTER
• Output power:
• Modulation system:
• Maximum frequency deviation:
• Occupied bandwidth:
• Spurious emissions:
 RECEIVER
• Receive system:
• Sensitivity:
• Selectivity:
• Intermodulation:
• Receive spurious:
• Spurious & image rejection:
• Audio output power:
• AF output impedance:
L Measurements made without an antenna.
L All stated specifications are subject to change without notice or obligation.

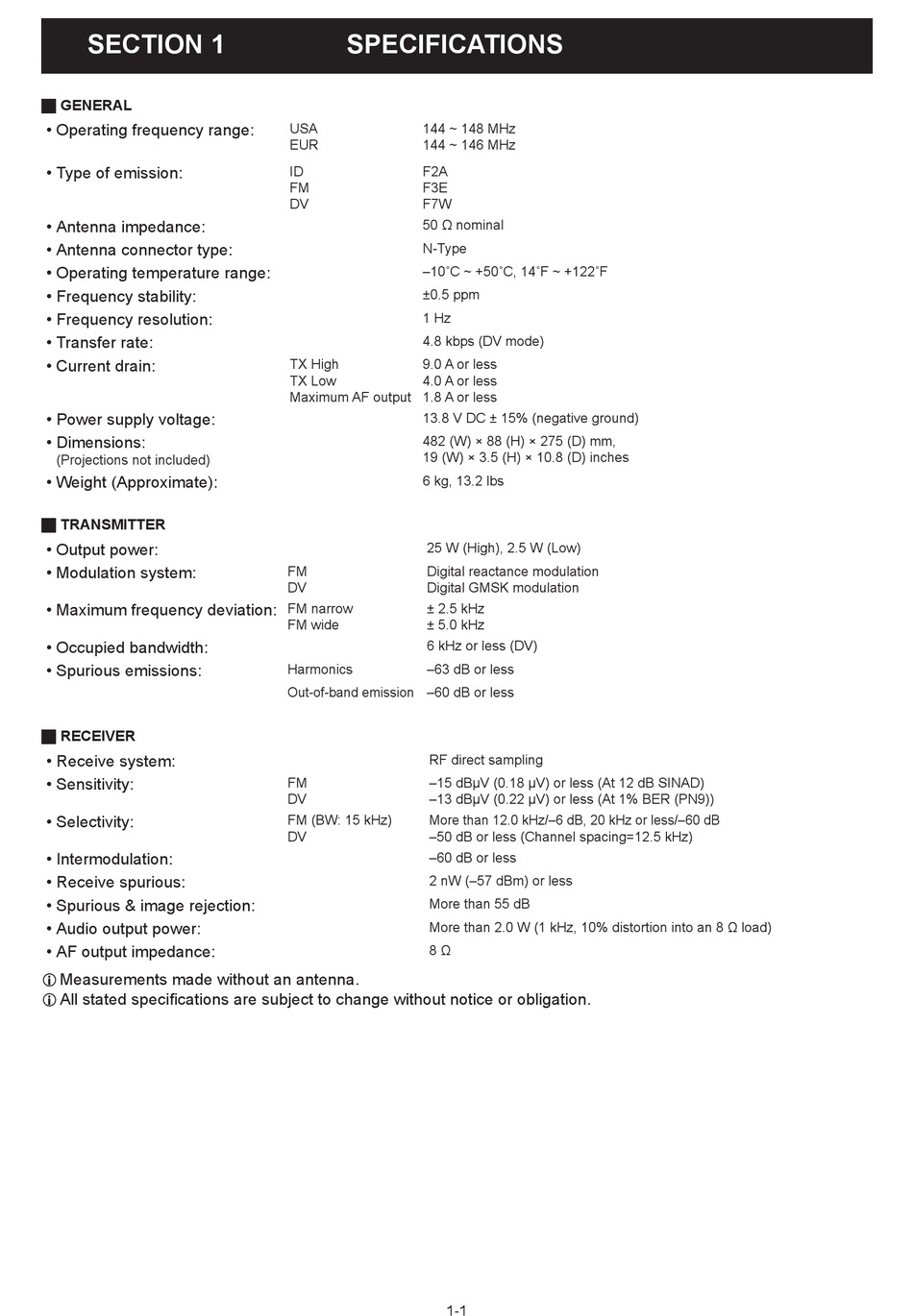

SPECIFICATIONS

USA 144 ~ 148 MHz
EUR 144 ~ 146 MHz
ID F2A
FM F3E
DV F7W
50 Ω nominal
N-Type
–10˚C ~ +50˚C, 14˚F ~ +122˚F
±0.5 ppm
1 Hz
4.8 kbps (DV mode)
TX High 9.0 A or less
TX Low 4.0 A or less
Maximum AF output 1.8 A or less
13.8 V DC ± 15% (negative ground)
482 (W) × 88 (H) × 275 (D) mm,
19 (W) × 3.5 (H) × 10.8 (D) inches
6 kg, 13.2 lbs
25 W (High), 2.5 W (Low)
FM Digital reactance modulation
DV Digital GMSK modulation
FM narrow ± 2.5 kHz
FM wide ± 5.0 kHz
6 kHz or less (DV)
Harmonics –63 dB or less
Out-of-band emission –60 dB or less
RF direct sampling
–15 dBµV (0.18 μV) or less (At 12 dB SINAD)
FM
–13 dBµV (0.22 μV) or less (At 1% BER (PN9))
DV
More than 12.0 kHz/–6 dB, 20 kHz or less/–60 dB
FM (BW: 15 kHz)
–50 dB or less (Channel spacing=12.5 kHz)
DV
–60 dB or less
2 nW (–57 dBm) or less
More than 55 dB
More than 2.0 W (1 kHz, 10% distortion into an 8 Ω load)
8 Ω
