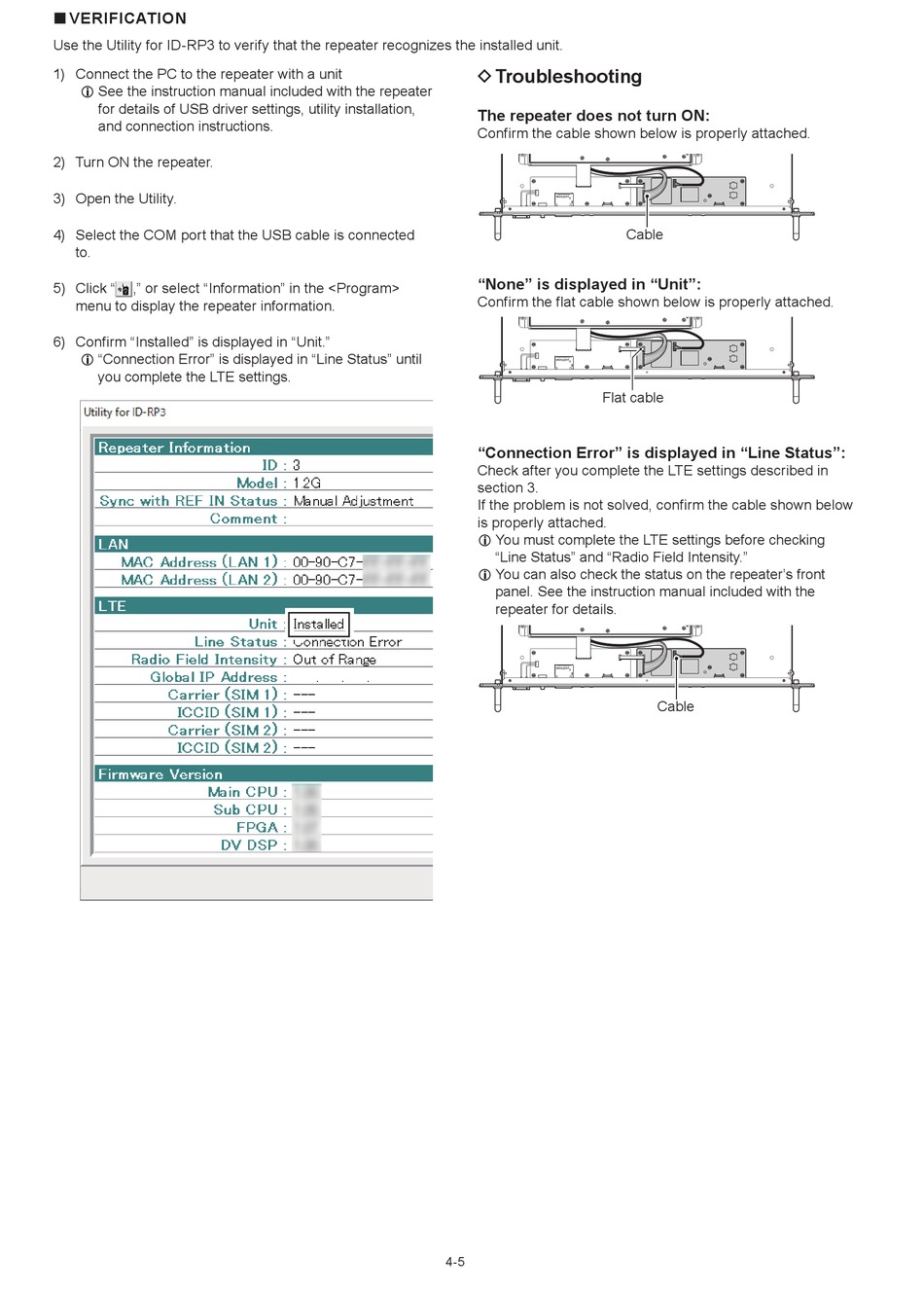

■ VERIFICATION
Use the Utility for ID-RP3 to verify that the repeater recognizes the installed unit.
1) Connect the PC to the repeater with a unit
L See the instruction manual included with the repeater
for details of USB driver settings, utility installation,
and connection instructions.
2) Turn ON the repeater.
3) Open the Utility.
4) Select the COM port that the USB cable is connected
to.
5) Click " ," or select "Information" in the <Program>
menu to display the repeater information.
6) Confirm "Installed" is displayed in "Unit."
L "Connection Error" is displayed in "Line Status" until
you complete the LTE settings.
D Troubleshooting
The repeater does not turn ON:
Confirm the cable shown below is properly attached.
"None" is displayed in "Unit":
Confirm the flat cable shown below is properly attached.
Flat cable
"Connection Error" is displayed in "Line Status":
Check after you complete the LTE settings described in
section 3.
If the problem is not solved, confirm the cable shown below
is properly attached.
L You must complete the LTE settings before checking
"Line Status" and "Radio Field Intensity."
L You can also check the status on the repeaterʼs front
panel. See the instruction manual included with the
repeater for details.
