SECTION 3

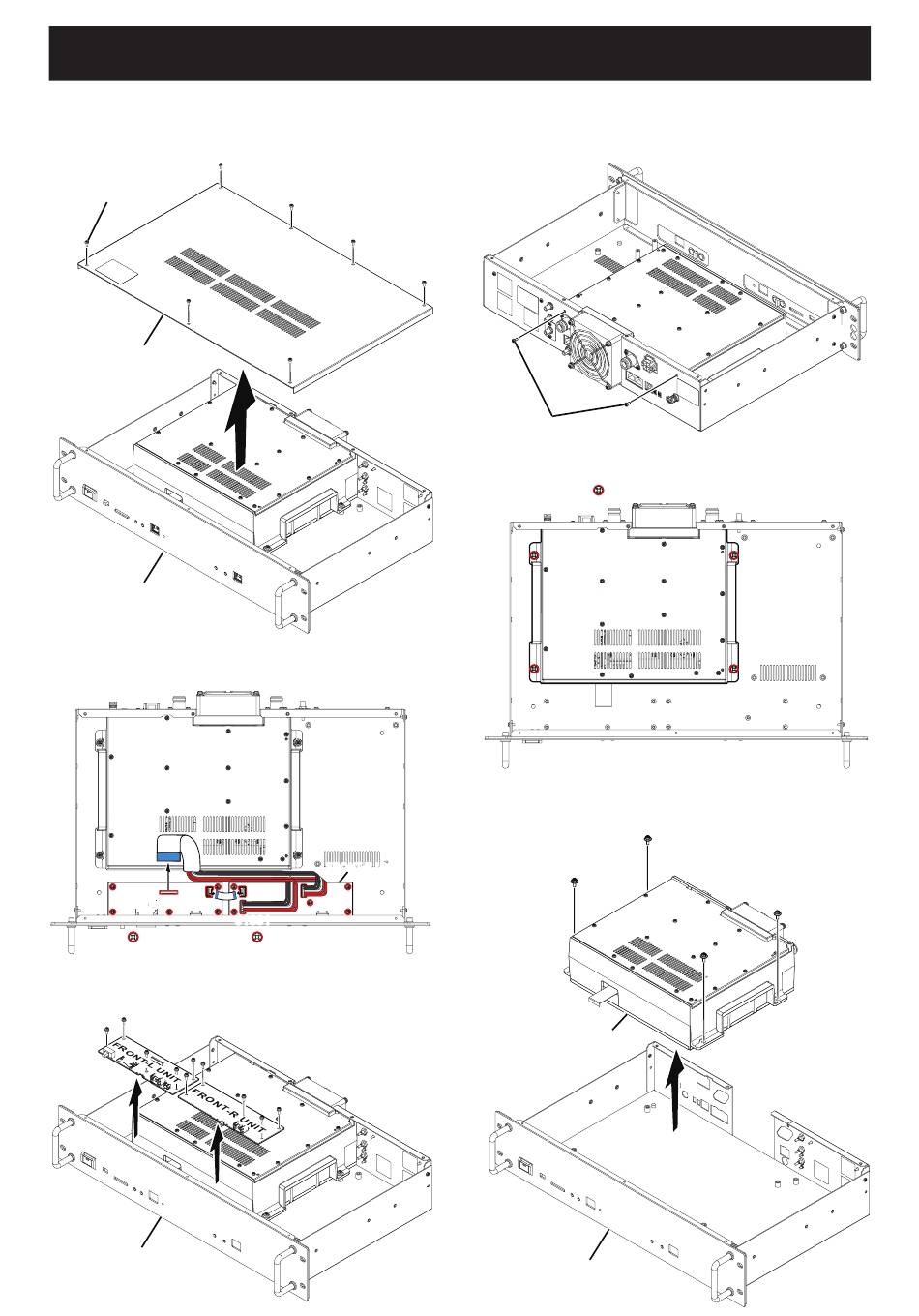

1. Removing the FRONT-R and FRONT-L UNITS
1) Remove the 7 screws from the top cover, then remove the
top cover from the repeater chassis.
7 screws
Top cover
Repeater chassis
2) Remove the 10 screws and the 4 cables from the
FRONT-R and FRONT-L UNITS.
J1
FRONT-L UNIT FRONT-L UNIT
J51
×5 screws
3) Remove the FRONT-R and FRONT-L UNITS from the
repeater chassis.
Repeater chassis

DISASSEMBLY INSTRUCTION

FRONT-R UNIT FRONT-R UNIT
J2002
J1255
J1801 J1801
×5 screws
2. Removing the RF UNIT ASSEMBLY
1) Remove the 2 screws from the rear panel of the repeater
chassis.
2 screws
2) Remove the 4 screws from the RF UNIT ASSEMBLY.
×4 screws
RF UNIT ASSEMBLY
3) Remove the RF UNIT ASSEMBLY from the repeater
chassis.
RF UNIT ASSEMBLY
Repeater chassis
3-1
