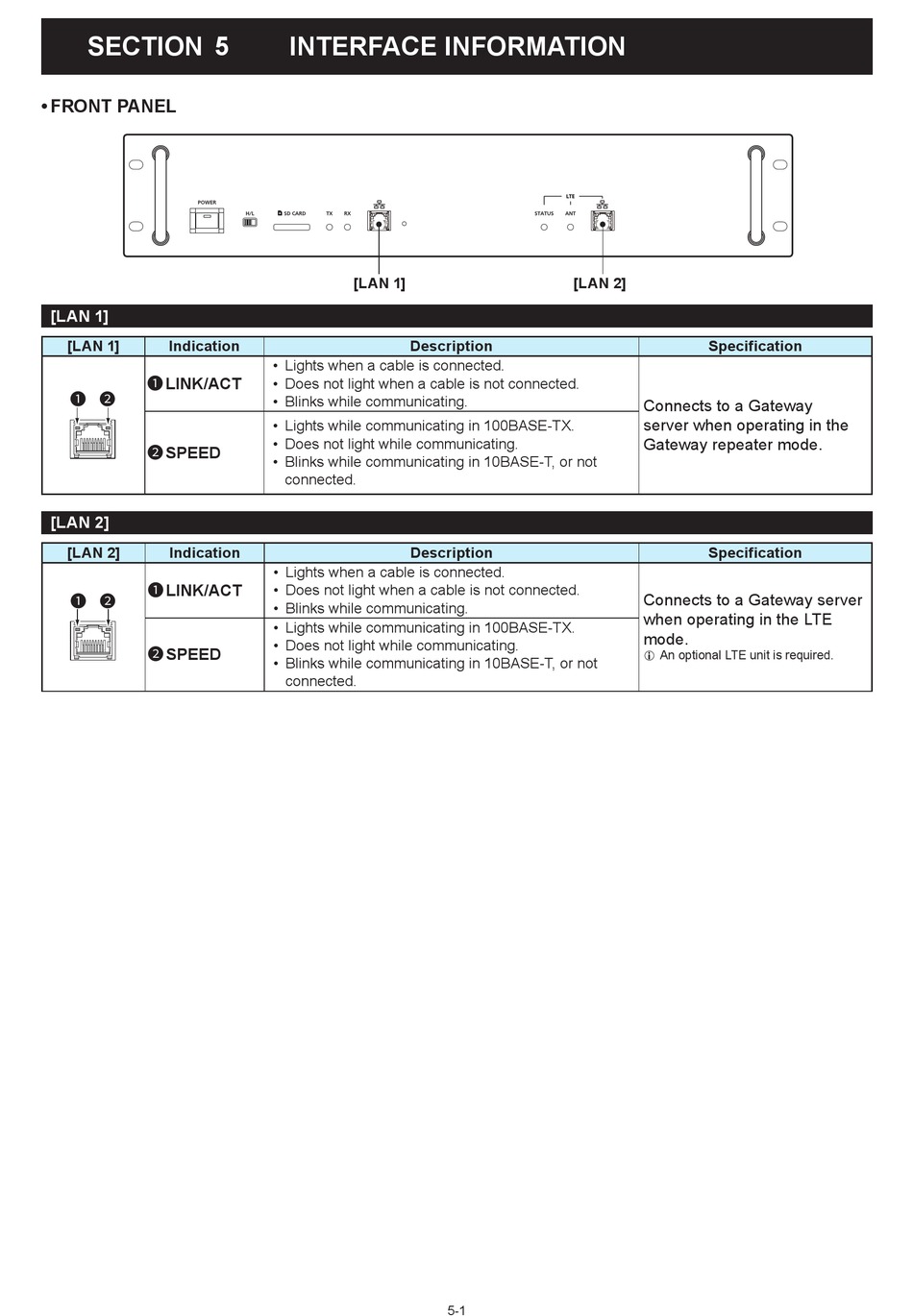

SECTION 5
• FRONT PANEL
[LAN 1]
[LAN 1]
Indication
1 LINK/ACT
1
2
2 SPEED
[LAN 2]
[LAN 2]
Indication
1 LINK/ACT
1
2
2 SPEED
INTERFACE INFORMATION
[LAN 1]
Description
• Lights when a cable is connected.
• Does not light when a cable is not connected.
• Blinks while communicating.
• Lights while communicating in 100BASE-TX.
• Does not light while communicating.
• Blinks while communicating in 10BASE-T, or not
connected.
Description
• Lights when a cable is connected.
• Does not light when a cable is not connected.
• Blinks while communicating.
• Lights while communicating in 100BASE-TX.
• Does not light while communicating.
• Blinks while communicating in 10BASE-T, or not
connected.
[LAN 2]
5-1
Specification
Connects to a Gateway
server when operating in the
Gateway repeater mode.
Specification
Connects to a Gateway server
when operating in the LTE
mode.
L An optional LTE unit is required.
