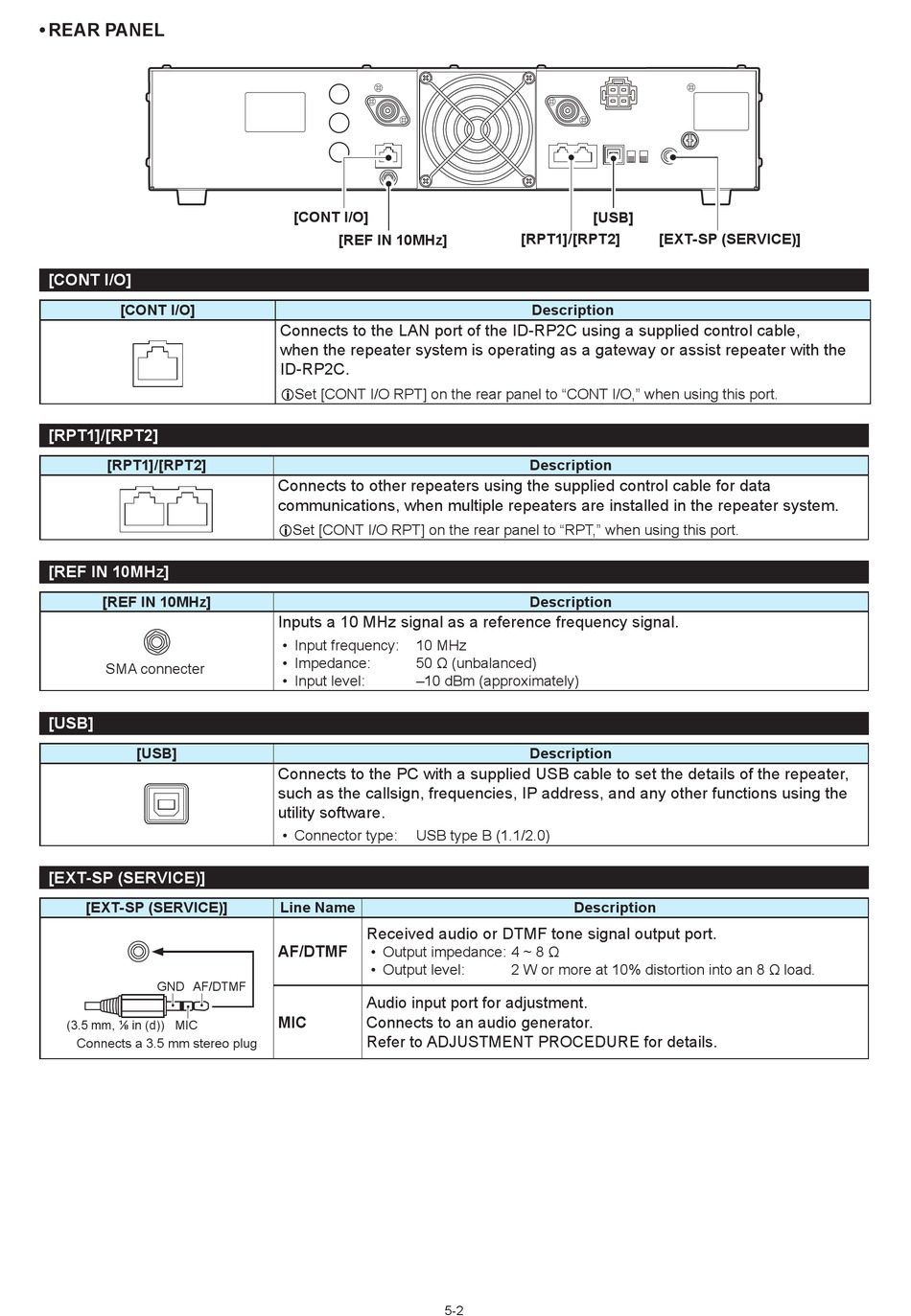

• REAR PANEL
[CONT I/O]
[CONT I/O]
[RPT1]/[RPT2]
[RPT1]/[RPT2]
[REF IN 10MHz]
[REF IN 10MHz]
SMA connecter
[USB]
[USB]
[EXT-SP (SERVICE)]
[EXT-SP (SERVICE)]
GND AF/DTMF
(3.5 mm, ⅛ in (d))
MIC
Connects a 3.5 mm stereo plug
[CONT I/O]
[REF IN 10MHz]
Connects to the LAN port of the ID-RP2C using a supplied control cable,
when the repeater system is operating as a gateway or assist repeater with the
ID-RP2C.
L Set [CONT I/O RPT] on the rear panel to "CONT I/O," when using this port.
Connects to other repeaters using the supplied control cable for data
communications, when multiple repeaters are installed in the repeater system.
LSet [CONT I/O RPT] on the rear panel to "RPT," when using this port.
Inputs a 10 MHz signal as a reference frequency signal.
• Input frequency: 10 MHz
• Impedance: 50 Ω (unbalanced)
• Input level: –10 dBm (approximately)
Connects to the PC with a supplied USB cable to set the details of the repeater,
such as the callsign, frequencies, IP address, and any other functions using the
utility software.
• Connector type: USB type B (1.1/2.0)
Line Name
Received audio or DTMF tone signal output port.
• Output impedance: 4 ~ 8 Ω
AF/DTMF
• Output level:
Audio input port for adjustment.
MIC Connects to an audio generator.
Refer to ADJUSTMENT PROCEDURE for details.
5-2
[USB]
[RPT1]/[RPT2] [EXT-SP (SERVICE)]
Description
Description
Description
Description
Description
2 W or more at 10% distortion into an 8 Ω load.
