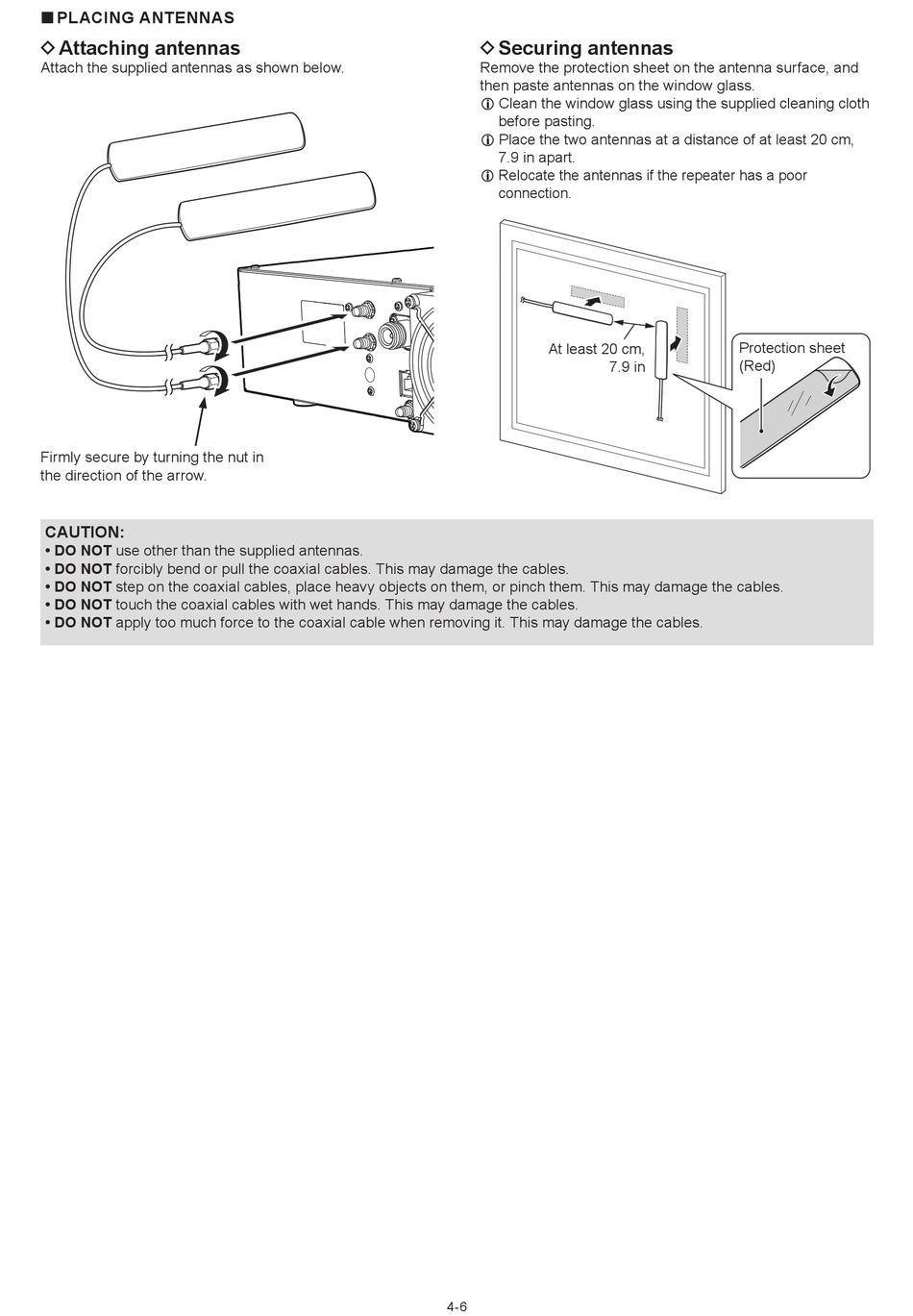

■ PLACING ANTENNAS
D Attaching antennas
Attach the supplied antennas as shown below.
Firmly secure by turning the nut in
the direction of the arrow.
CAUTION:
• DO NOT use other than the supplied antennas.
• DO NOT forcibly bend or pull the coaxial cables. This may damage the cables.
• DO NOT step on the coaxial cables, place heavy objects on them, or pinch them. This may damage the cables.
• DO NOT touch the coaxial cables with wet hands. This may damage the cables.
• DO NOT apply too much force to the coaxial cable when removing it. This may damage the cables.
D Securing antennas
Remove the protection sheet on the antenna surface, and
then paste antennas on the window glass.
L Clean the window glass using the supplied cleaning cloth
before pasting.
L Place the two antennas at a distance of at least 20 cm,
7.9 in apart.
L Relocate the antennas if the repeater has a poor
connection.
At least 20 cm,
7.9 in
4-6
Protection sheet
(Red)
