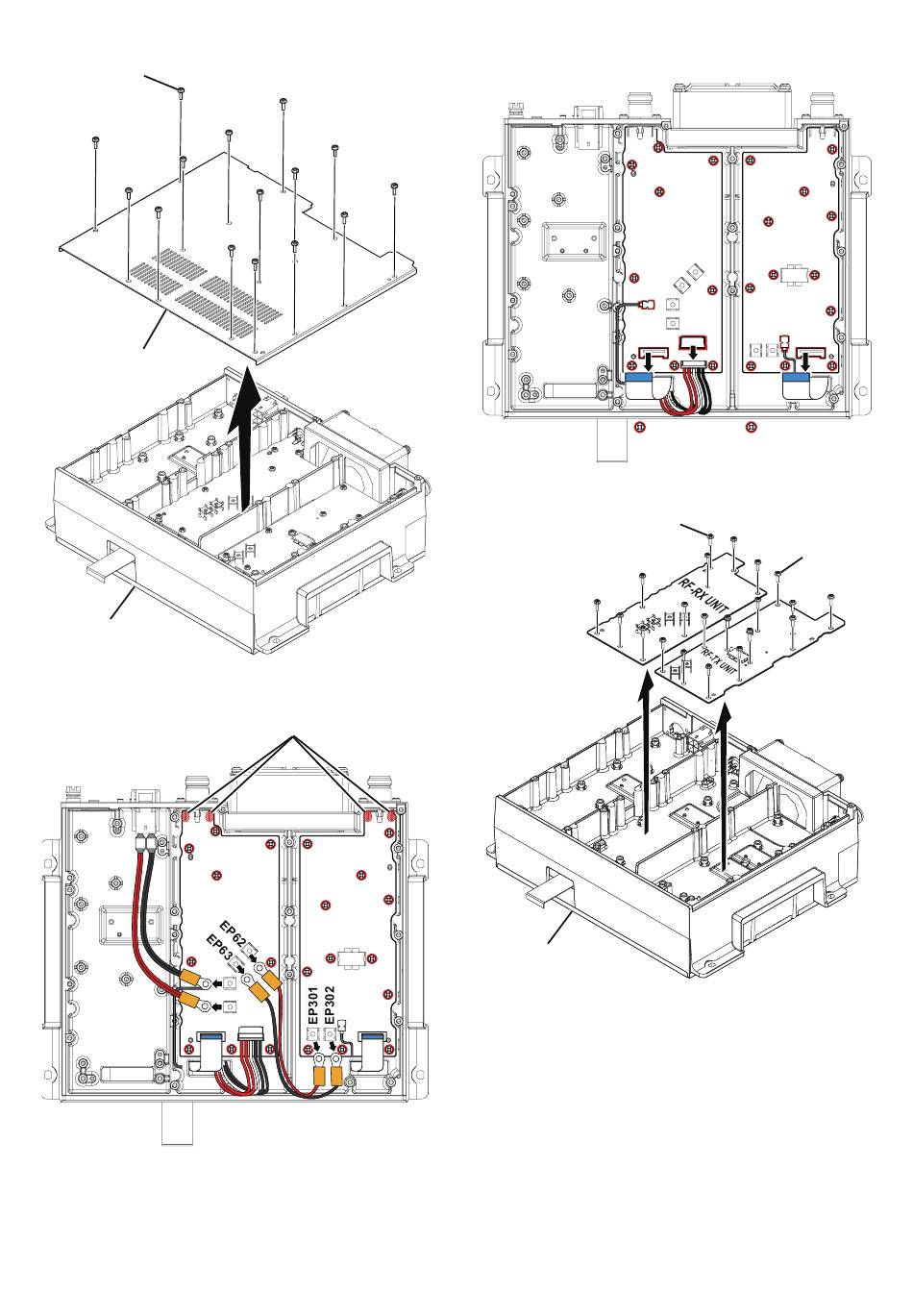

3. Removing the RF-RX and RF-TX UNITS
1) Remove the 15 screws from the top cover, then remove it.
15 screws
Top cover
Chassis
(RF UNIT ASSEMBLY)
2) Remove the DC cables from the RF-RX and RF-TX
UNITS, and unsolder the antenna connectors (ground).
RF-RX UNIT
Unsolder
RF-TX UNIT
EP22
EP21
(Continued on the right above)
3) Remove the 21 screws and disconnect the cables from
the RF-RX and RF-TX UNITS.
4) Remove the RF-RX and RF-TX UNITS from the chassis.
9 screws
Chassis
(RF UNIT ASSEMBLY)
3-2
RF-RX UNIT RF-TX UNIT
J1201
J101
J41
J1
×9 screws
×12 screws
from RF-RX UNIT from RF-TX UNIT
J1
12 screws
