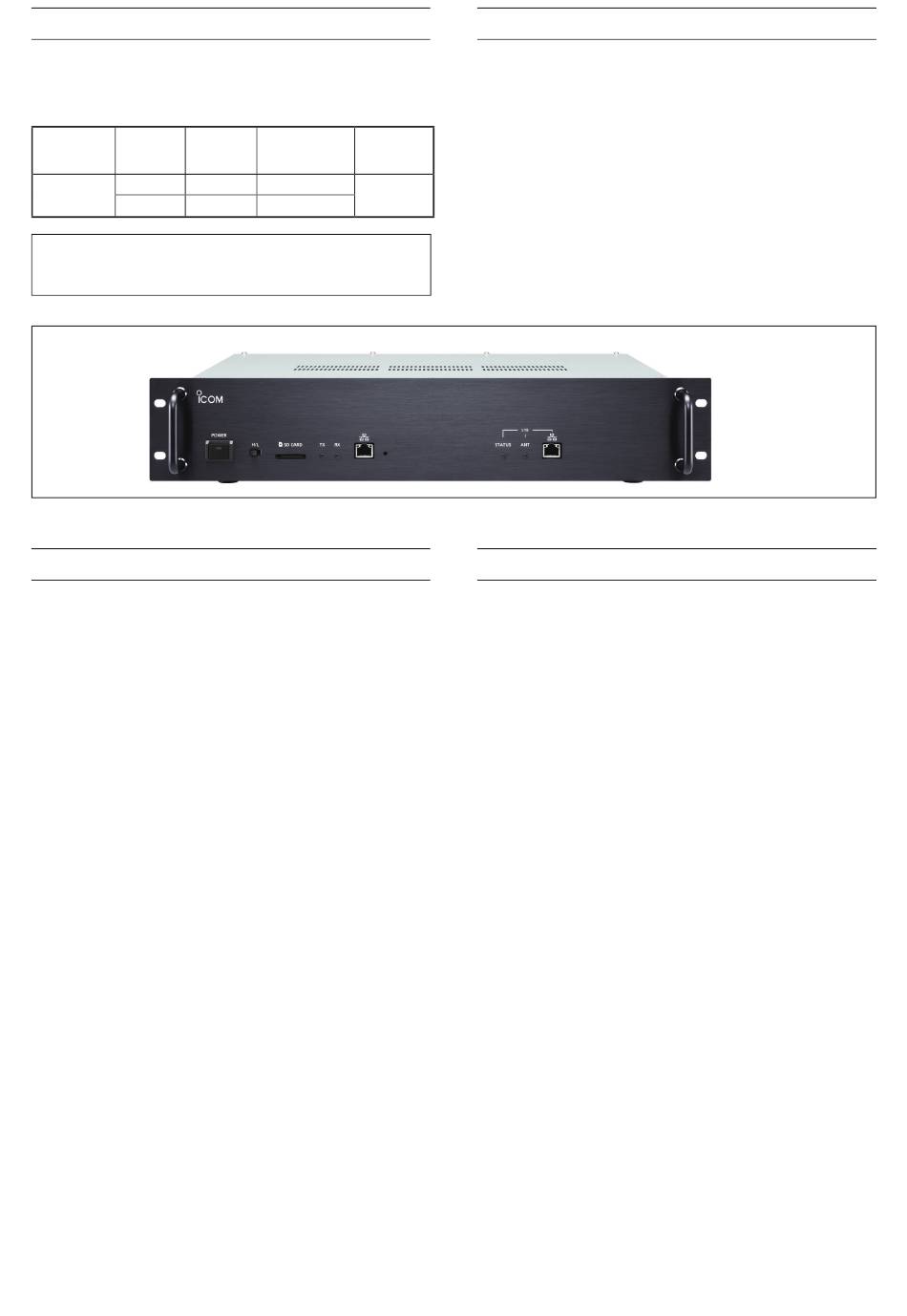

Icom ID-RP2010V Service Manual page 2

INTRODUCTION
This service manual describes the latest technical
information for the following version of the ID-RP2010V
vhf repeater at the time of publication.
VERSION
MODEL VERSION
NUMBER
EUR
ID-RP2010V
USA
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
ORDERING PARTS
Be sure to include the following four points when
ordering replacement parts:
1. 10-digit Icom part number
2. Component name
3. Equipment model name and unit name
4. Quantity required
<ORDER EXAMPLE>
2710001060 FD128025HB
2710000870 0402B104K160 ID-RP2010V MAIN
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.
MAXIMUM
FREQUENCY
OUTPUT
RANGE (MHz)
POWER
#21 144 ~ 146
25 W
#31 144 ~ 148
ID-RP2010V CHASSIS 5 pieces
1 piece
SERVICE CAUTION
NEVER connect the repeater to an AC outlet or to a
DC power supply that outputs more than the specified
voltage. This will ruin the repeater.
DO NOT expose the repeater to rain, snow or liquids.
DO NOT reverse the polarity of the DC power cable
when directly connecting to the repeater.
DO NOT apply an RF signal of more than 20 dBm
(100 mW) to the RX antenna connector. This could
damage the repeater's front-end.
REPAIR NOTES
1. Make sure that the problem is internal before
disassembling the repeater.
2. DO NOT open the repeater until the repeater is
disconnected from its power source.
3. DO NOT short any circuits or electronic parts.
An insulated tuning tool MUST be used for all
adjustments.
4. DO NOT keep power ON for a long time when the
repeater is defective.
5. NEVER directly transmit power into any test
equipment such as Standard Signal Generator or
a Sweep Generator, otherwise the RF power may
damage them.
6. ALWAYS connect a 40 dB to 50 dB attenuator
between the repeater and such test equipment.
7. READ the instructions of the test equipment
thoroughly before connecting it to the repeater.
