Icom ID-RP2010V Service Manual page 49

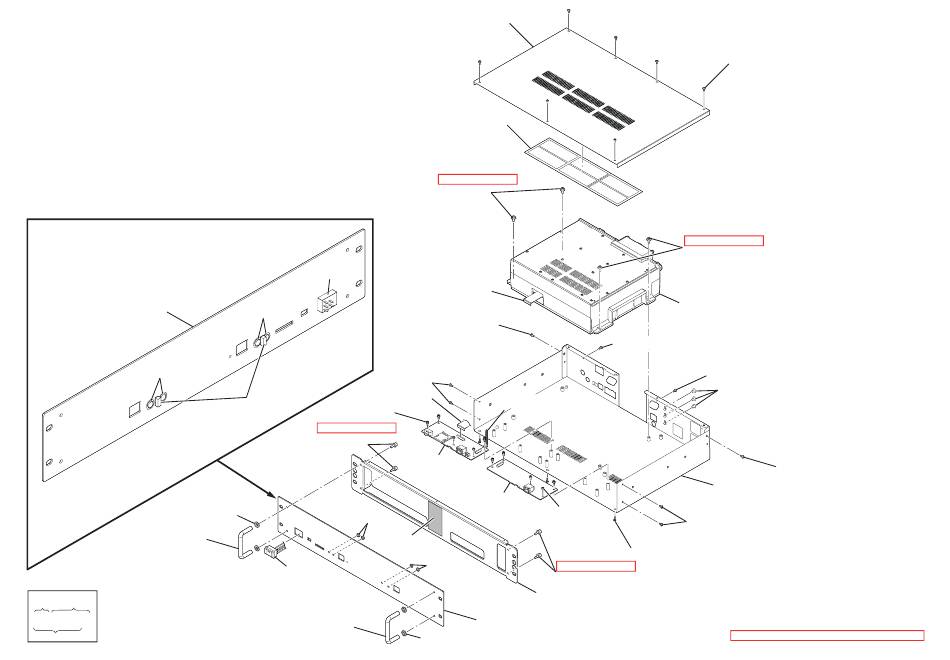

• CHASSIS ASSEMBLY
• MP112 rear view
MP112 (CHASSIS)
(Refere to the parts list.)
MP40 (CHASSIS)
(8930048350)
MP116 (CHASSIS) ×2
(8850003920)
MP115 (CHASSIS)
(8930102560)
Legend:
Ref. No.
Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
W206 (CHASSIS)
(8920003390)
MP40 (CHASSIS)
(8930048350)
MP95 (CHASSIS)
(8810003161)
W204 (CHASSIS)
MP43 (CHASSIS) (8910000220)
(8930079140)
MP58 (CHASSIS) ×5
(8810007231)
Torque: 1.0 N·m (±0.15 N·m)
MP117 (CHASSIS)
(8820001750)
MP40 (CHASSIS)
(8930048350)
MP97 (CHASSIS)
(8930082640)
W206 (CHASSIS)
(8920003390)
MP115 (CHASSIS)
(8930102560)
MP114 (CHASSIS)
(8110011760)
MP118 (CHASSIS)
(8930102450)
Torque: 1.0 N·m (±0.15 N·m)
MP92 (CHASSIS)
(8810003401)
W204 (CHASSIS)
(8910000220)
MP95 (CHASSIS)
(8810003161)
MP61 (CHASSIS) MP61 (CHASSIS)
(8950003640) (8950003640)
FRONT-L UNIT
FRONT-R UNIT
MP59 (CHASSIS) ×5
(8810007231)
MP40 (CHASSIS)
Torque: 1.0 N·m (±0.15 N·m)
(8930048350)
MP117 (CHASSIS)
(8820001750)
MP113 (CHASSIS)
(8010025190)
MP112 (CHASSIS)
(Refere to the parts list.)
MP116 (CHASSIS) ×2
(8850003920)
8-3
MP94 (CHASSIS) ×7
(8810007410)
Torque: 1.0 N·m (±0.15 N·m)
MP92 (CHASSIS)
(8810003401)
RF UNIT ASSEMBLY
(See the next page)
MP95 (CHASSIS) MP95 (CHASSIS)
(8810003161) (8810003161)
MP95 (CHASSIS)
(8810003161)
MP202 (CHASSIS)
(8930106070)
MP95 (CHASSIS)
(8810003161)
MP111 (CHASSIS)
(8010025141)
MP95 (CHASSIS)
(8810003161)
MP44 (CHASSIS) ×3
(8810008790)
Unless otherwise noted, the tighten to torque is 0.7 N·m (±0.1 N·m).
