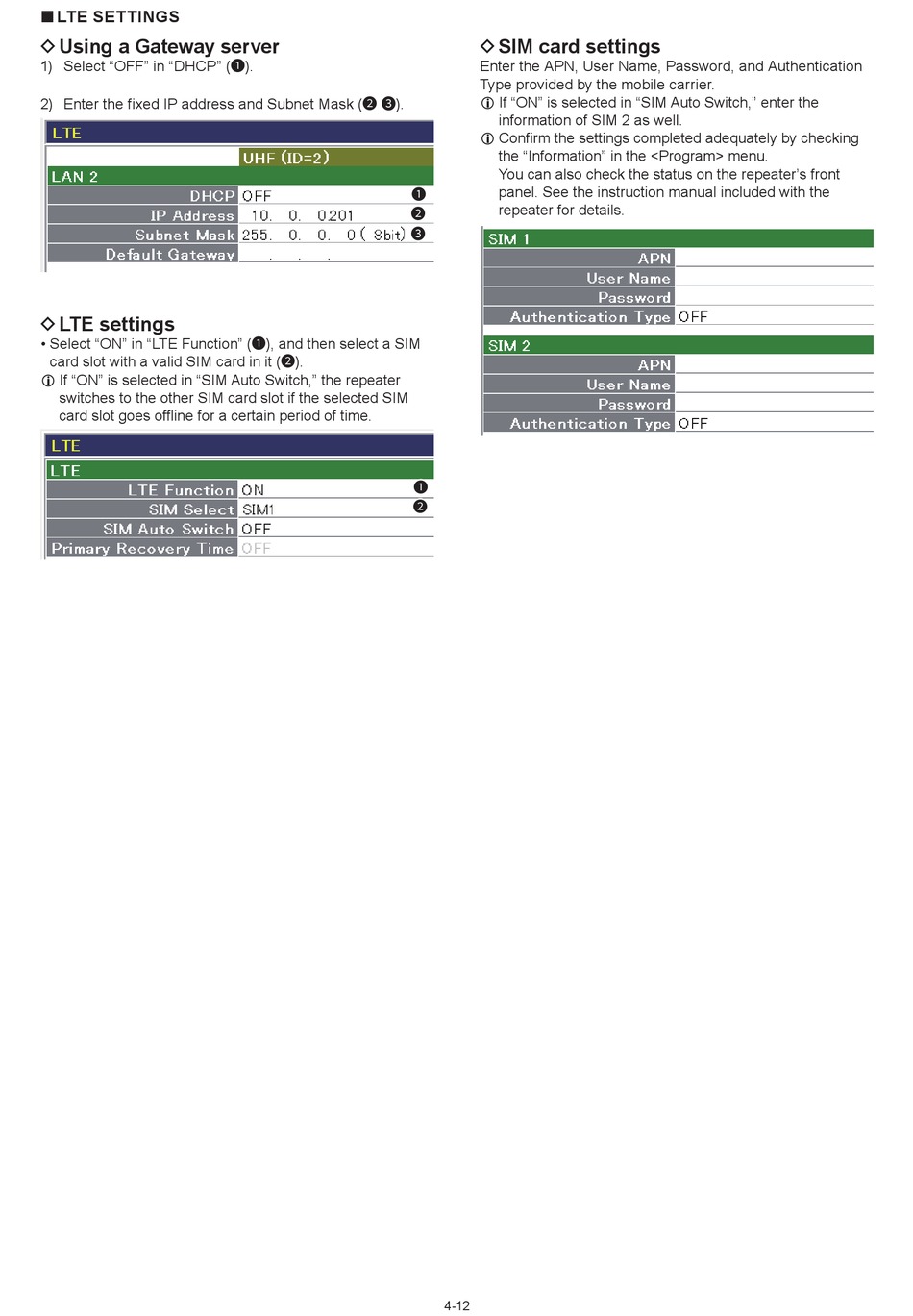

Icom ID-RP2010V Service Manual page 23

■ LTE SETTINGS
D Using a Gateway server
1) Select "OFF" in "DHCP" (1).
2) Enter the fixed IP address and Subnet Mask (2 3).
D LTE settings
• Select "ON" in "LTE Function" (1), and then select a SIM
card slot with a valid SIM card in it (2).
L If "ON" is selected in "SIM Auto Switch," the repeater
switches to the other SIM card slot if the selected SIM
card slot goes offline for a certain period of time.
D SIM card settings
Enter the APN, User Name, Password, and Authentication
Type provided by the mobile carrier.
L If "ON" is selected in "SIM Auto Switch," enter the
information of SIM 2 as well.
L Confirm the settings completed adequately by checking
the "Information" in the <Program> menu.
You can also check the status on the repeaterʼs front
panel. See the instruction manual included with the
1
repeater for details.
2
3
1
2
4-12
