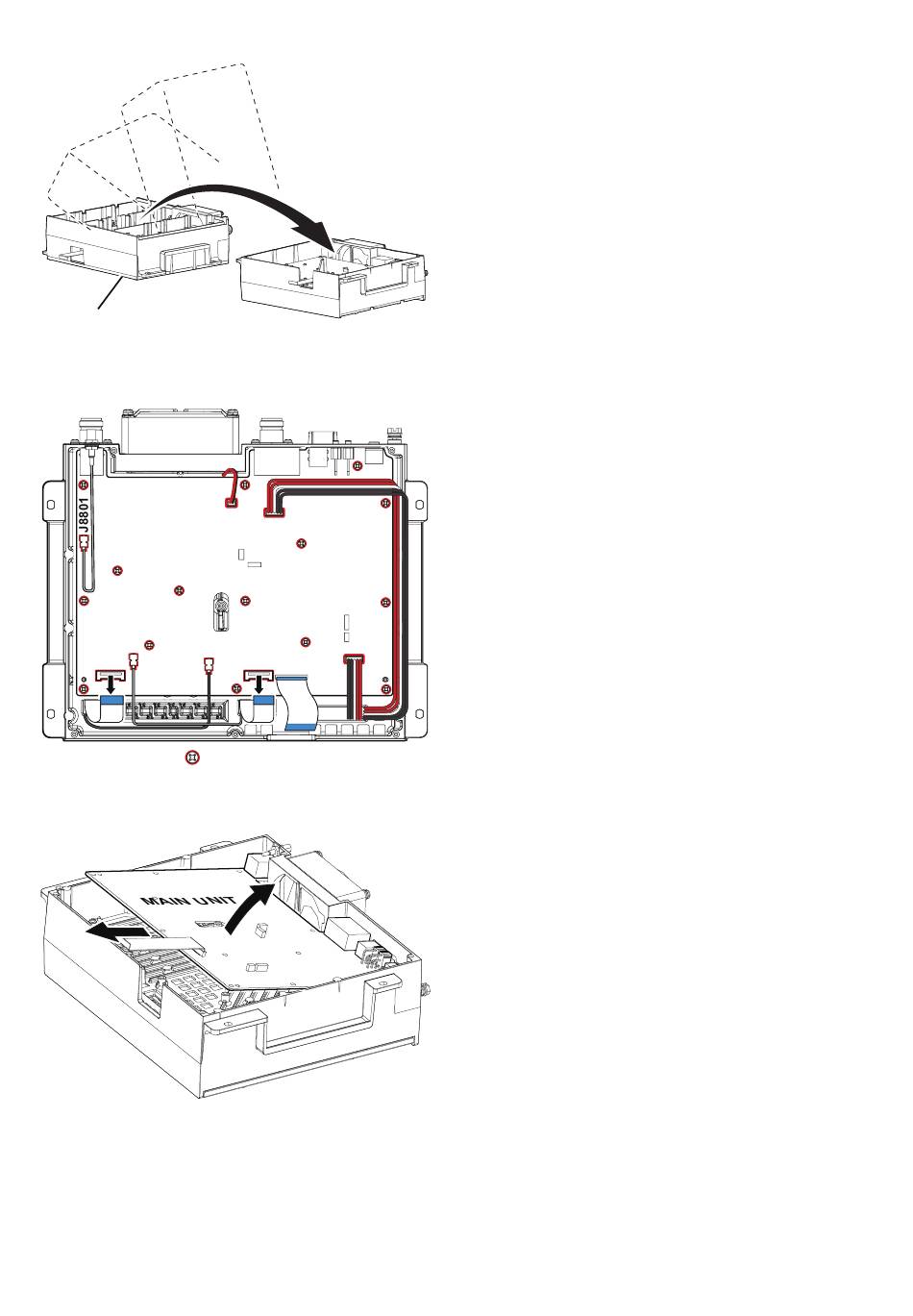

4. Removing the MAIN UNIT
1) Turn the RF UNIT ASSEMBLY upside down.
Chassis
(RF UNIT ASSEMBLY)
2) Remove the 15 screws, and disconnect the 8 cables from the
MAIN UNIT.
J2881
MAIN UNIT
J3081
J3101
J9001
×15 screws
3) Remove the MAIN UNIT from the chassis in the direc-
tion of the arrow.
J9151
J9541
J9101
3-3
