Icom ID-RP2010V Service Manual page 30

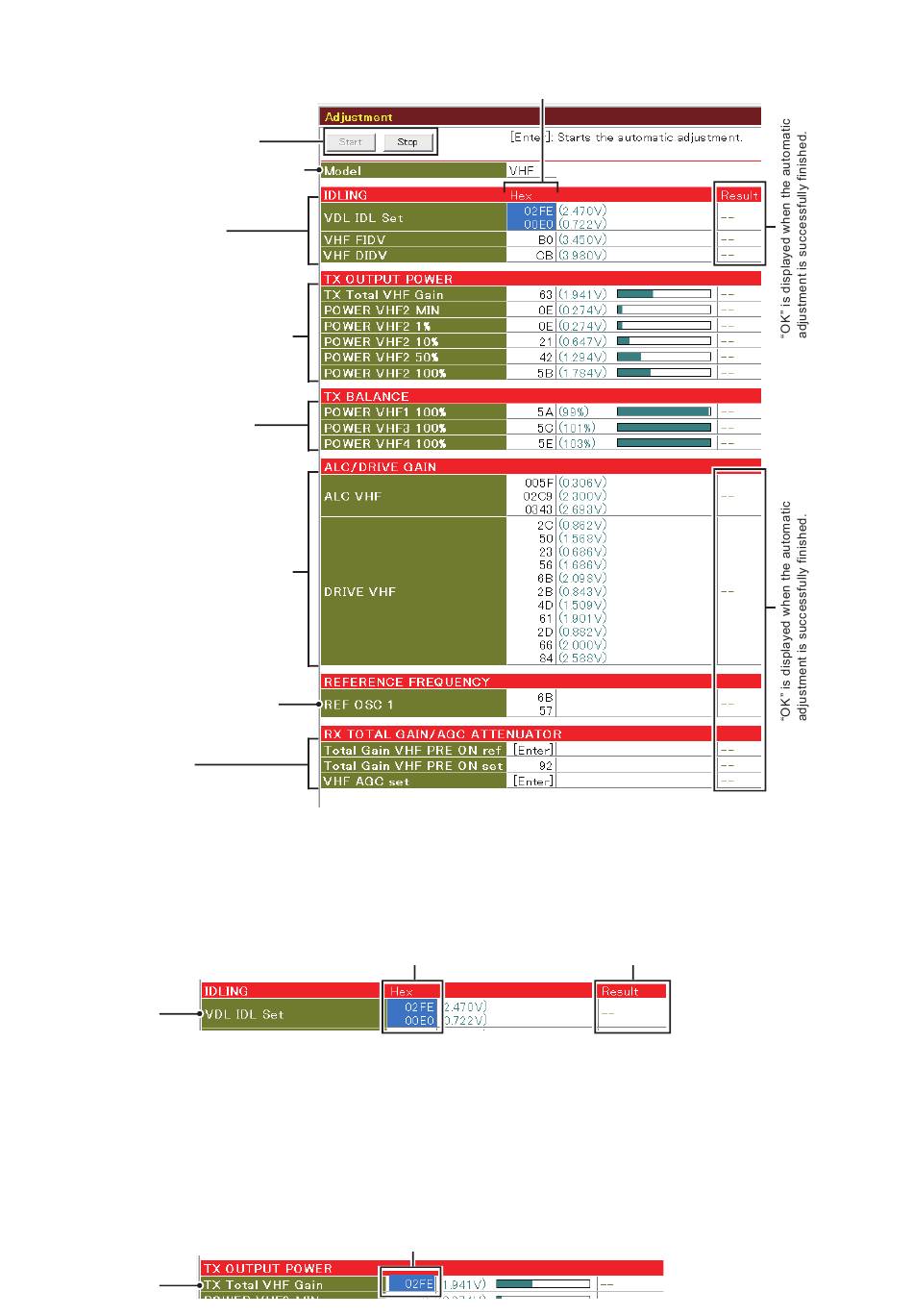

■ ABOUT THE ADJUSTMENT SCREEN
On the Adjustment screen, you can adjust the repeater.
• Perform the Repeater All Reset after you have finished the adjustment.
• Click [Start] to start the adjustment.
• Click [Stop] to quit the adjustment.
"VHF" is displayed when the repeater setting
data have been successfully loaded.
Idling current adjustment
(Automatic)
Transmit output power adjustment
(Manual)
Transmit balance adjustment
(Manual)
ALC and DRIVE GAIN adjustments
(Automatic)
Reference frequency adjustment
(Automatic)
Receive adjustments
(Automatic)
■ COMMON ADJUSTMENT PROCEDURE
For the Automatic adjustments
1) Click on the adjustment value in hexadecimal for the item.
• The cell is highlighted in blue and selected.
2) Push the PC's [ENTER] key.
• "OK" is displayed and the adjustment value is stored.
Adjustment item
For the Manual adjustments
1) Click on the adjustment value in hexadecimal for the item.
• The cell is highlighted in blue.
2) Push the PC's [ENTER] key.
• The cell is selected.
3) Push the PC's [←] or [→] key to adjust the value.
4) If you want to cancel the adjustment, push the PC's [ESC] key.
• The adjustment value returns to its original value.
5) Push the PC's [ENTER] key.
• "OK" is displayed and the adjustment value is stored.
Adjustment item
Adjustment value in hexadecimal
Adjustment value in hexadecimal
Adjustment value in hexadecimal
6-5
"OK" is displayed.
