SECTION 4 OPTIONAL PRODUCT INSTALLATION
NOTE: For the latest information, refer to the UX-262 SETTING GUIDE that is available from the Extranet.

4-1 INSTALLING THE LTE MODULE (UX-262)

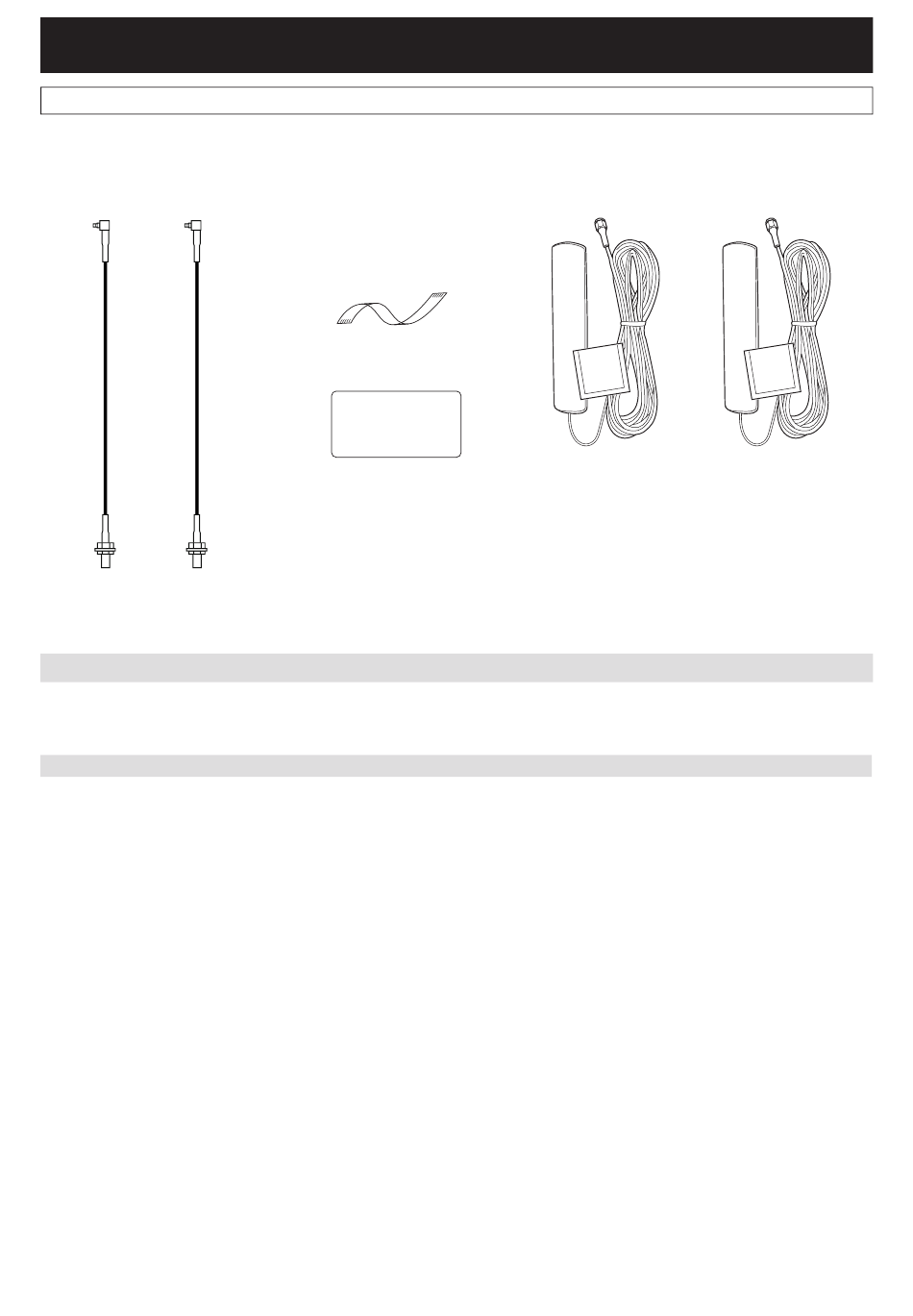

■ SUPPLIED ACCESSORIES
Coaxial cables
(Cable length: 30 cm, 11.8 in)
NOTE: Place the repeater within reach of the antenna cables to paste the LTE antennas on a window glass.
About the certification sticker:
For the USA version, paste the supplied certification sticker on the repeater case to show that the repeater is certified.
CAUTION: DO NOT paste the sticker where it blocks vents on the case. This may damage the repeater.
D Preparation
Carefully check your repeater settings before installing the LTE unit.
The system with a single repeater:
Confirm the repeater is connected to a Gateway Server.
The system with multiple repeaters:
Install the unit to a repeater that is connected to a Gateway Server.
Connect the gateway server to the ID-RP1200VD in DD mode if it is included in your system. The system will not work if it is
connected to other repeaters.
Spare flat cable
(7.5 × 80 mm, 0.3 × 3.1 in)
Certification sticker
(For only the USA version)
4-1
LTE antennas*
(Cable length: 3 m, 9.8 ft)
*Includes a cleaning cloth
