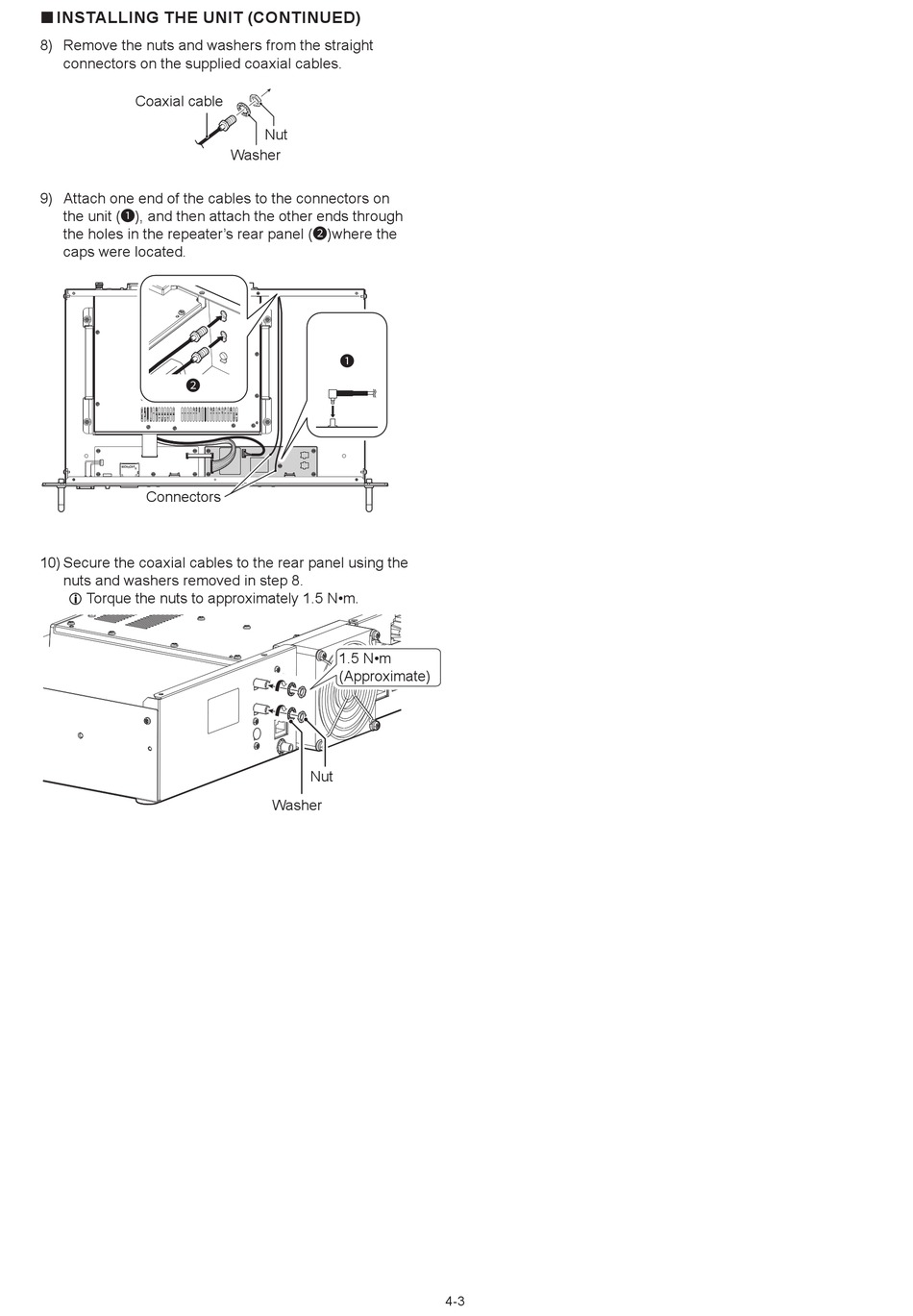

■ INSTALLING THE UNIT (CONTINUED)
8) Remove the nuts and washers from the straight
connectors on the supplied coaxial cables.
Coaxial cable
9) Attach one end of the cables to the connectors on
the unit (1), and then attach the other ends through
the holes in the repeaterʼs rear panel (2)where the
caps were located.
2
Connectors
10) Secure the coaxial cables to the rear panel using the
nuts and washers removed in step 8.
L Torque the nuts to approximately 1.5 N•m.
Nut
Washer
1
1.5 N•m
(Approximate)
Nut
Washer
4-3
