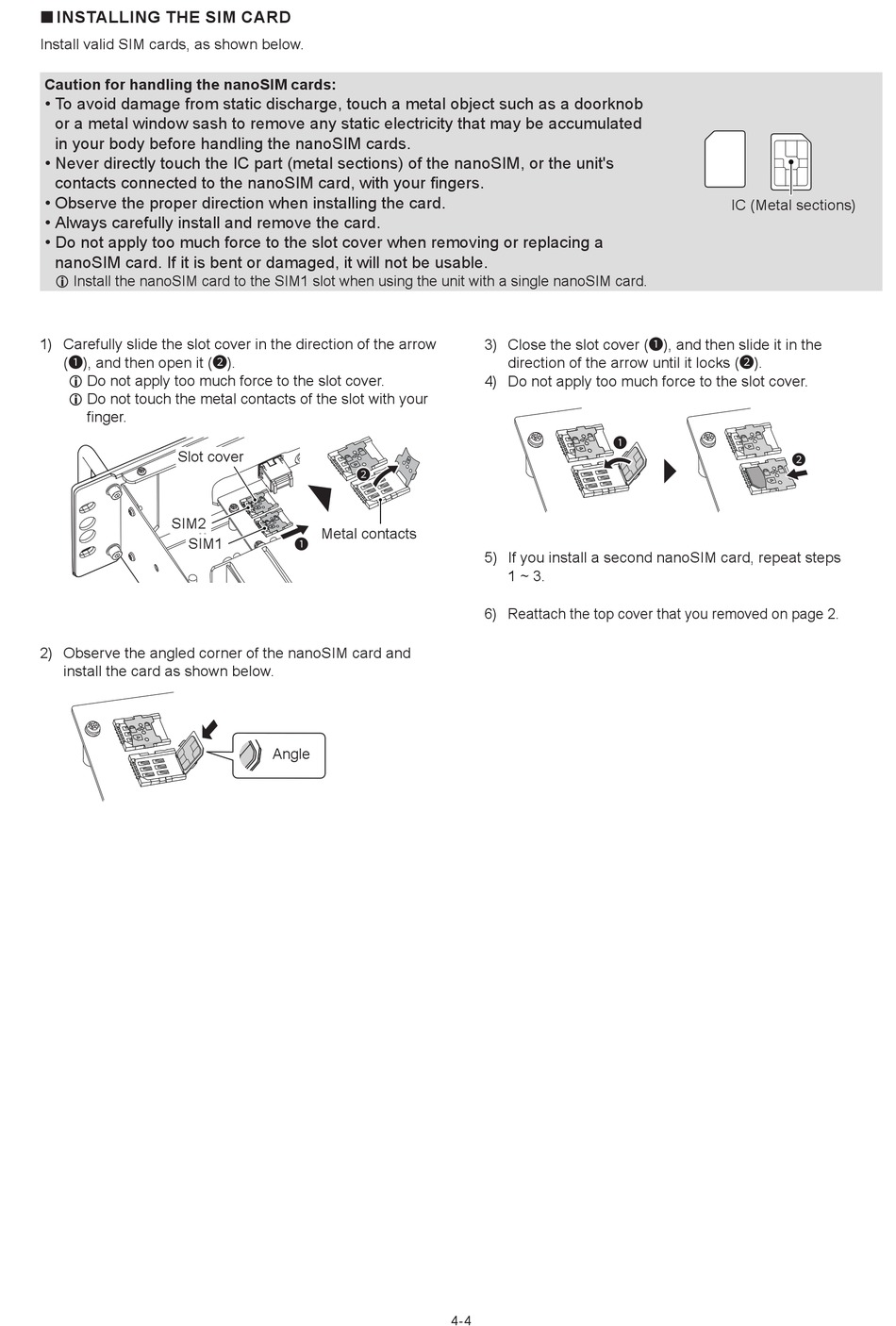

■ INSTALLING THE SIM CARD
Install valid SIM cards, as shown below.
Caution for handling the nanoSIM cards:
• To avoid damage from static discharge, touch a metal object such as a doorknob
or a metal window sash to remove any static electricity that may be accumulated
in your body before handling the nanoSIM cards.
• Never directly touch the IC part (metal sections) of the nanoSIM, or the unit's
contacts connected to the nanoSIM card, with your fingers.
• Observe the proper direction when installing the card.
• Always carefully install and remove the card.
• Do not apply too much force to the slot cover when removing or replacing a
nanoSIM card. If it is bent or damaged, it will not be usable.
L Install the nanoSIM card to the SIM1 slot when using the unit with a single nanoSIM card.
1) Carefully slide the slot cover in the direction of the arrow
(1), and then open it (2).
L Do not apply too much force to the slot cover.
L Do not touch the metal contacts of the slot with your
finger.
Slot cover
SIM2
SIM1
2) Observe the angled corner of the nanoSIM card and
install the card as shown below.
●
2
Metal contacts
1
Angle
3) Close the slot cover (1), and then slide it in the
direction of the arrow until it locks (2).
4) Do not apply too much force to the slot cover.
1
5) If you install a second nanoSIM card, repeat steps
1 ~ 3.
6) Reattach the top cover that you removed on page 2.
4-4
IC (Metal sections)
●
