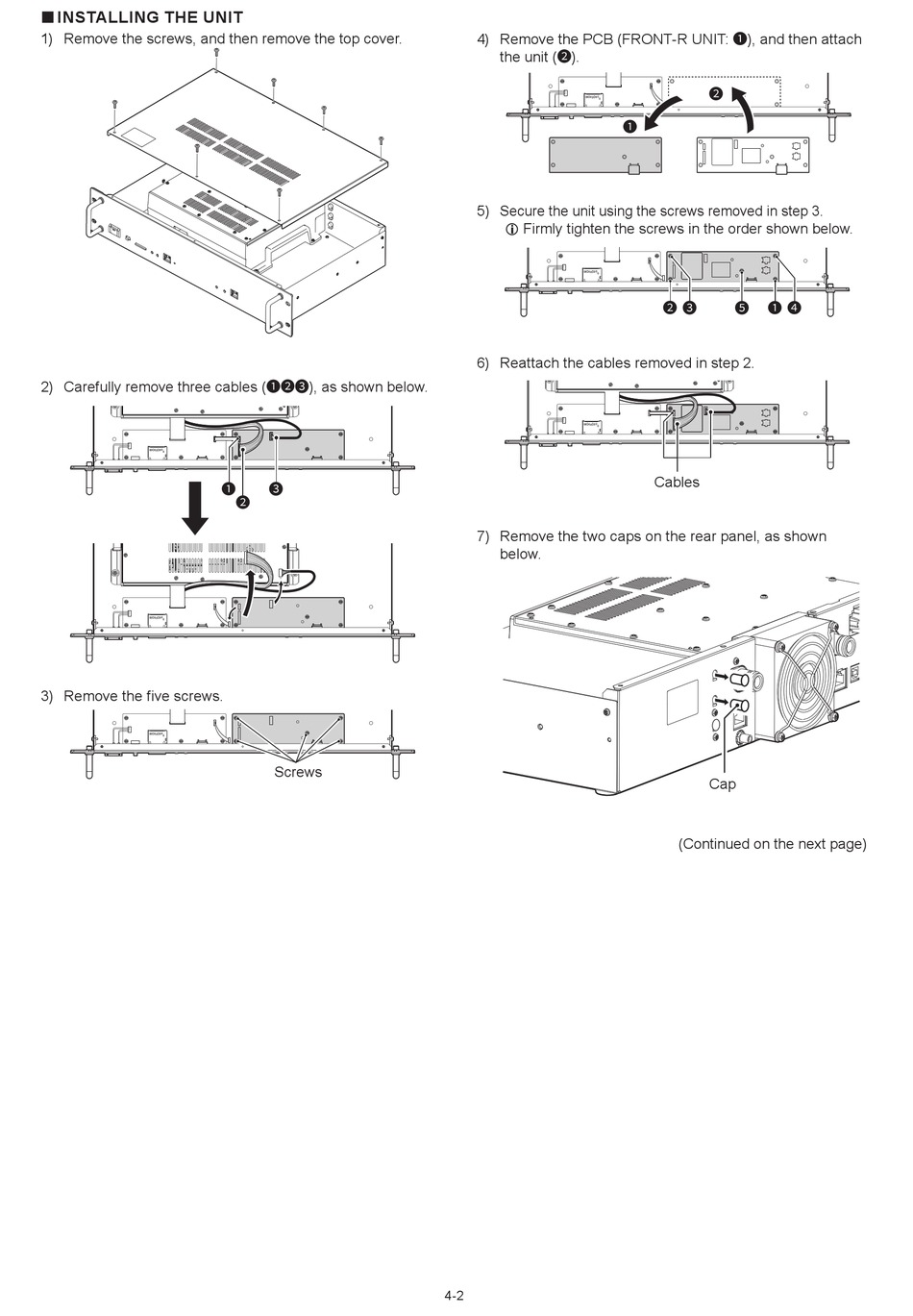

■ INSTALLING THE UNIT
1) Remove the screws, and then remove the top cover.
2) Carefully remove three cables (123), as shown below.
3) Remove the five screws.
1
3
2
Screws
4) Remove the PCB (FRONT-R UNIT: 1), and then attach
the unit (2).
5) Secure the unit using the screws removed in step 3.
L Firmly tighten the screws in the order shown below.
6) Reattach the cables removed in step 2.
7) Remove the two caps on the rear panel, as shown
below.
4-2
2
1
2 3
5
1 4
Cables
Cap
(Continued on the next page)
