The menu
Signal Processing (DTR)
Defines the conductor to which the DTR signal is connected (DTR = Data Terminal Ready).
DTR
Back
Next
1
2
3
DTR=DTR
Set
<
>
Exit
1
2
3
DTR=DTR- DTR signal is assigned to DTR line; DTR=READY- READY signal is assigned to DTR
line.
DTR = Pin 20 on 25-pin female RS232 connector.
DTR = Pin 4 on 9-pin female RS232 connector.
Confirm the setting by pressing the Set key (1). Press the Next key (4) to access the next group of
parameters.
Buffer Control (BuffCNTL)
This parameter serves to select the type of protocol, i.e. a certain set of rules and procedures for
ensuring error-free data exchanges between computer and printer.
Special Protocol
Back
Next
1
2
3
XON/XOFF
Set
<
>
Exit
1
2
3
Confirm the setting by pressing the Set key (1). Press the Next key (4) to access the next group of
parameters.
50

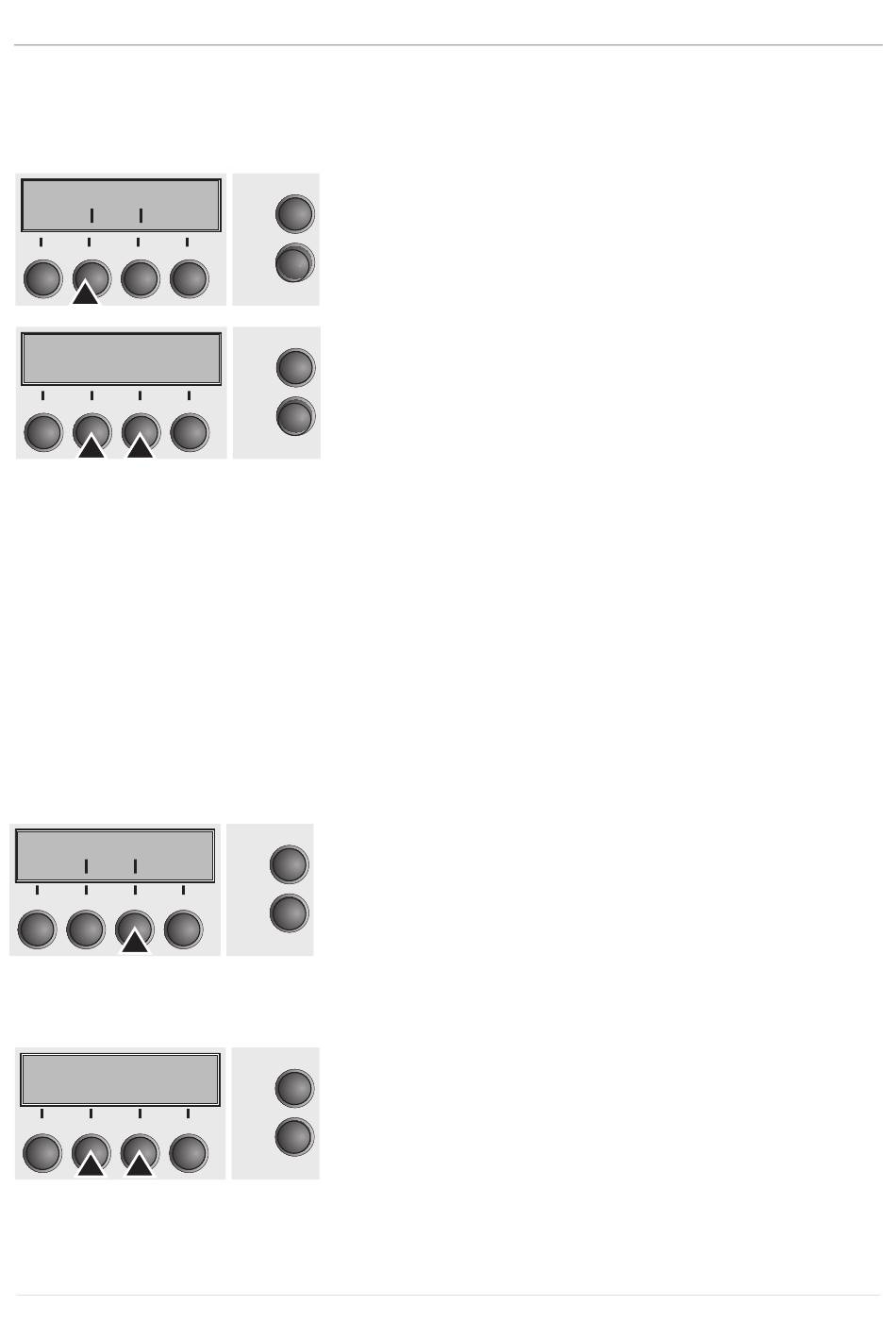

Press DTR (2) key.
Online
4
Setup
*
Online
4
Setup
Online
4
Setup
*
Online
4
Setup
Use the < (2) or > (3) key to select the desired setting.
Setting Options: DTR/READY
Default Setting: DTR
Press Protocol (3) key.
Use the < (2) or > (3) key to select the desired setting.
Setting Options: XON/XOFF, Robust XON/XOFF,
Default Setting: XON/XOFF
