Confirm the setting by pressing the Set key (1). Press the Next key (4) to access
the next group of parameters.

Signal Processing (DTR)

Defines the conductor to which the DTR signal is connected (DTR = Data
Terminal Ready).
Confirm the setting by pressing the Set key (1). Press the Next key (4) to access
the next group of parameters.

Selecting interface (Interf.)

Selects the interface. Printer is configured either for parallel, Ethernet or optional
serial connection or in automatic change for the parallel or the optional serial
interface (Shared).

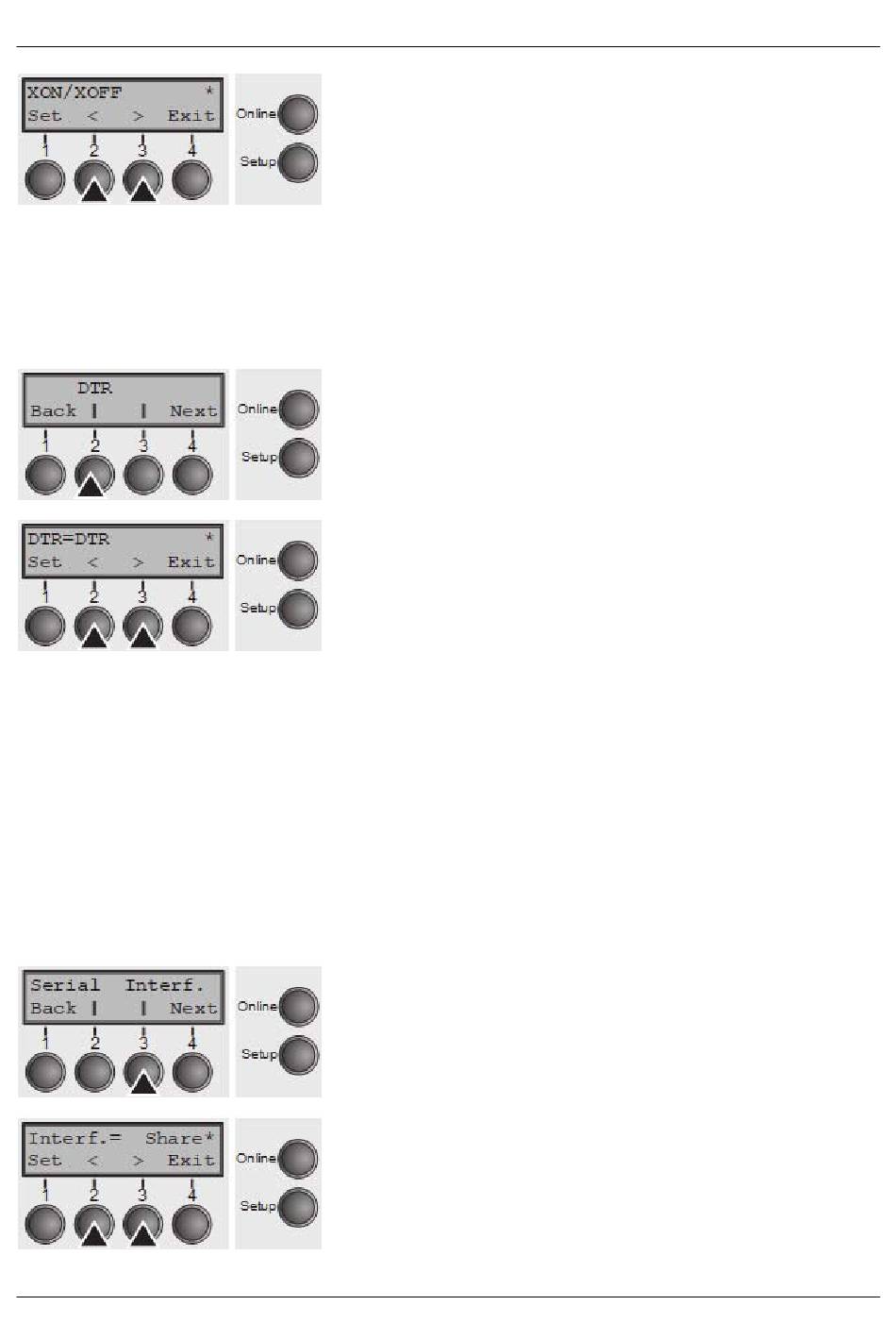

Use the < (2) or > (3) key to select the desired setting.
Setting Options: XON/XOFF, Robust XON/XOFF,
ENQ/STX, ETX/ACK, ACK/NAK
Default Setting: XON/XOFF
Press DTR (2) key.
Use the < (2) or > (3) key to select the desired setting.
Setting Options: DTR/READY
Default Setting: DTR
DTR=DTR: DTR signal is assigned to DTR line.
DTR=READY: READY signal is assigned to DTR line.
DTR = Pin 20 on 25-pin female RS232 connector.
DTR = Pin 4 on 9-pin female RS232 connector.
Press Interf. (3) key.
Use the < (2) or > (3) key to select the desired setting.
Setting Options: Share, Parallel, Serial
Default Setting: Share
