12.5 FC Protocol Overview
The FC protocol, also referred to as FC bus or Standard
bus, is the Danfoss standard serial communication bus. It
defines an access technique according to the master-
follower principle for communications via a serial bus.
One master and a maximum of 126 followers can be
connected to the bus. The master selects the individual
followers via an address character in the message. A
follower itself can never transmit without first being
requested to do so, and direct message transfer between
the individual followers is not possible. Communications
occur in the half-duplex mode.
The master function cannot be transferred to another node
(single-master system).
The physical layer is RS-485, thus utilizing the RS-485 port
built into the adjustable frequency drive. The FC protocol
supports different message formats:
•
A short format of 8 bytes for process data
•
A long format of 16 bytes that also includes a
parameter channel
•
A format used for texts
12.6 Network Configuration
12.6.1 Adjustable Frequency Drive Set-up
Set the following parameters to enable the FC protocol for
the adjustable frequency drive.
12 12
Parameter Number
8-30 Protocol
8-31 Address
8-32 FC Port Baud Rate
8-33 Parity / Stop Bits
Table 12.2 FC Protocol Parameters
190
Design Guide
Setting
Adjustable Frequency Drive
1–126
2400–115200
Even parity, 1 stop bit (default)
Rev. 2014-04-04 All rights reserved.
12.7 FC Protocol Message Framing
Structure
12.7.1 Content of a Character (byte)
Each character transferred begins with a start bit. Then 8
data bits are transferred, corresponding to a byte. Each
character is secured via a parity bit. This bit is set at "1"
when it reaches parity. Parity is when there is an equal
number of 1s in the 8 data bits and the parity bit in total.
A stop bit completes a character, thus consisting of 11 bits
in all.

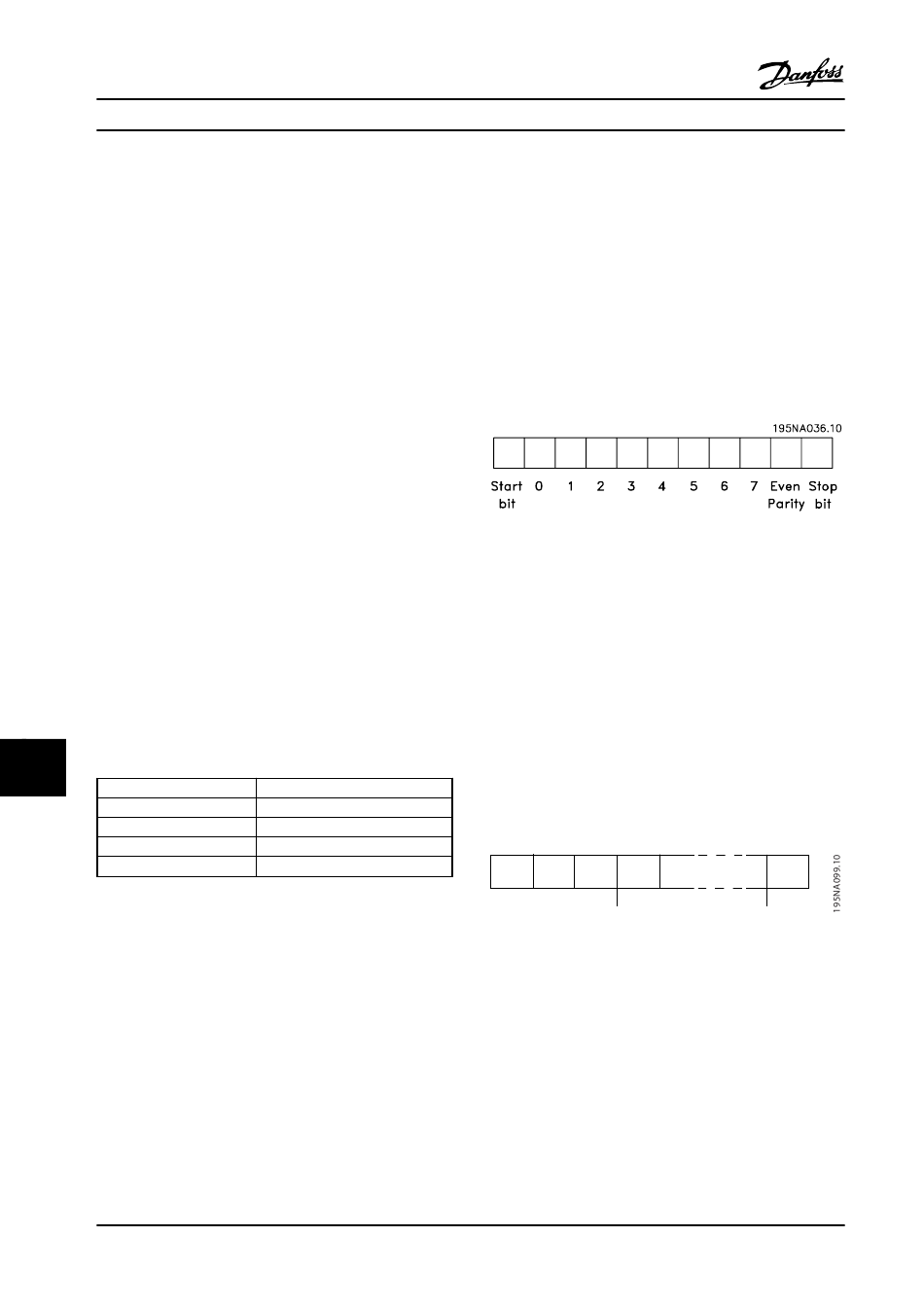

Figure 12.5 Content of a Character
12.7.2 Message Structure
Each message has the following structure:
1. Start character (STX)=02 hex
2. A byte denoting the message length (LGE)
3. A byte denoting the adjustable frequency drive
address (ADR)
A number of data bytes (variable, depending on the type
of message) follows.
A data control byte (BCC) completes the message.
STX LGE ADR
Figure 12.6 Message Structure
DATA BCC
