Options and Accessories
NOTICE!
Side-by-side installation is not possible when using the
IP21/IP4X/TYPE 1 Enclosure Kit.
11.4.7 Remote Mounting Kit for LCP
The LCP can be moved to the front of a cabinet by using
the remote built-in kit. The enclosure is the IP66. The
fastening screws must be tightened with a torque of max.
1 Nm.
The LCP enclosure is rated IP66
Enclosure
Max. cable length between and unit
Communication std
Table 11.15 Technical Data

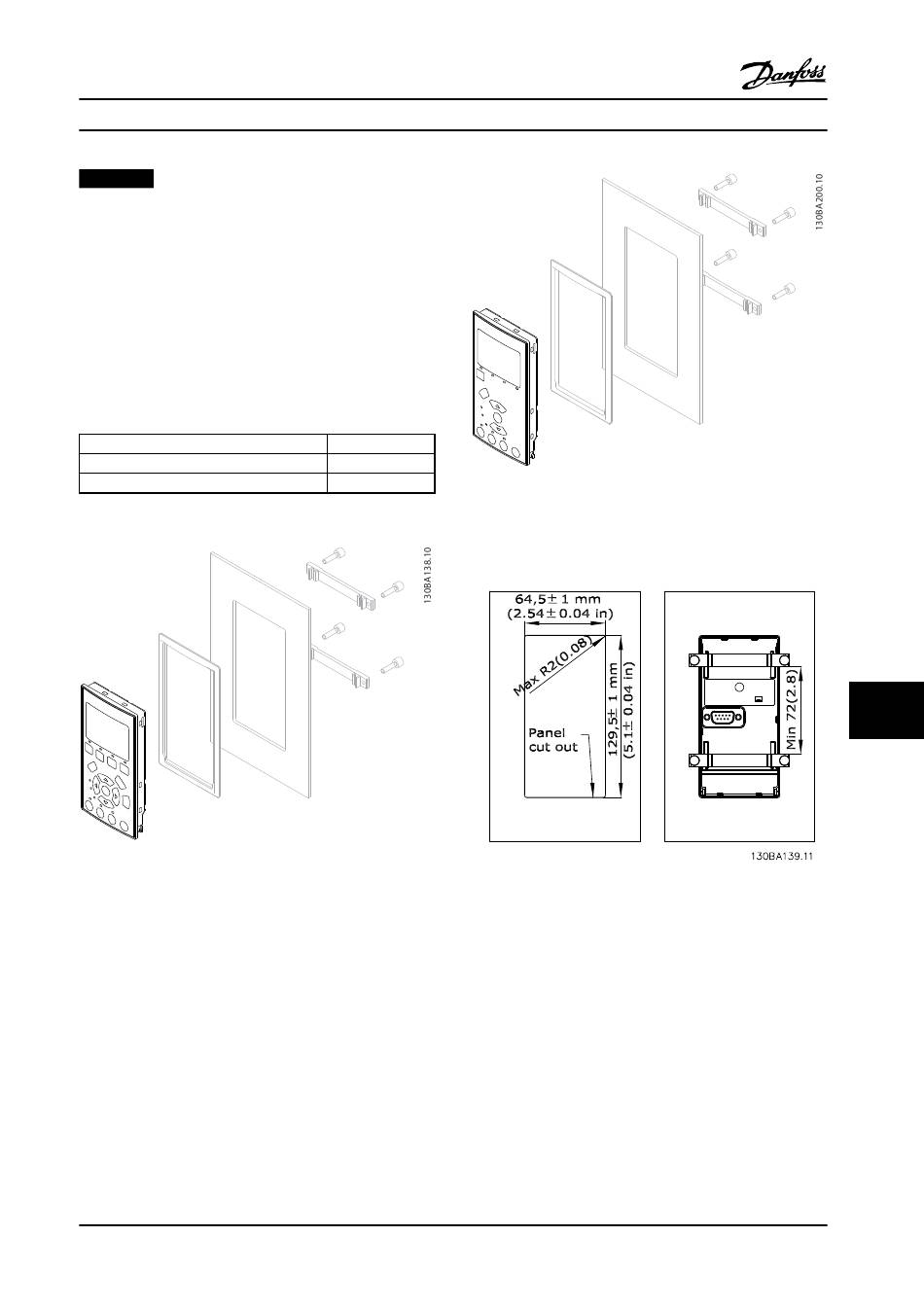

Figure 11.27 LCP Kit with Graphical LCP, Fasteners, 10 ft [3 m]
Cable and Gasket
Ordering No. 130B1113
MG33BF22
Design Guide
IP66 front
10 ft [3 m]
Figure 11.28 LCP Kit with Numerical LCP, Fasteners and
RS-485
Gasket
Ordering no. 130B1114
Figure 11.29 Dimensions
