Application Examples
12 13
External
24 VDC
10 10
Figure 10.6 External Electro-mechanical Brake
160
18 19 27 29 32 33 20
Start
I max
-
+
Mechanical Brake
Connection
Design Guide
10.1.3 Programming of Speed Control
The required motor speed is set via a potentiometer
connected to terminal 53. The speed range is 0 to
37
1,500 RPM corresponding to 0 to 10 V over the potenti-
ometer. Starting and stopping is controlled by a switch
connected to terminal 18. The Speed PID monitors the
actual RPM of the motor by using a 24 V (HTL) incremental
encoder as feedback. The feedback sensor is an encoder
(1024 pulses per revolution) connected to terminals
32 and 33.
L1
L2
L3
0.1 Amp
N
PE
F1
P 5-40 [0] [32]

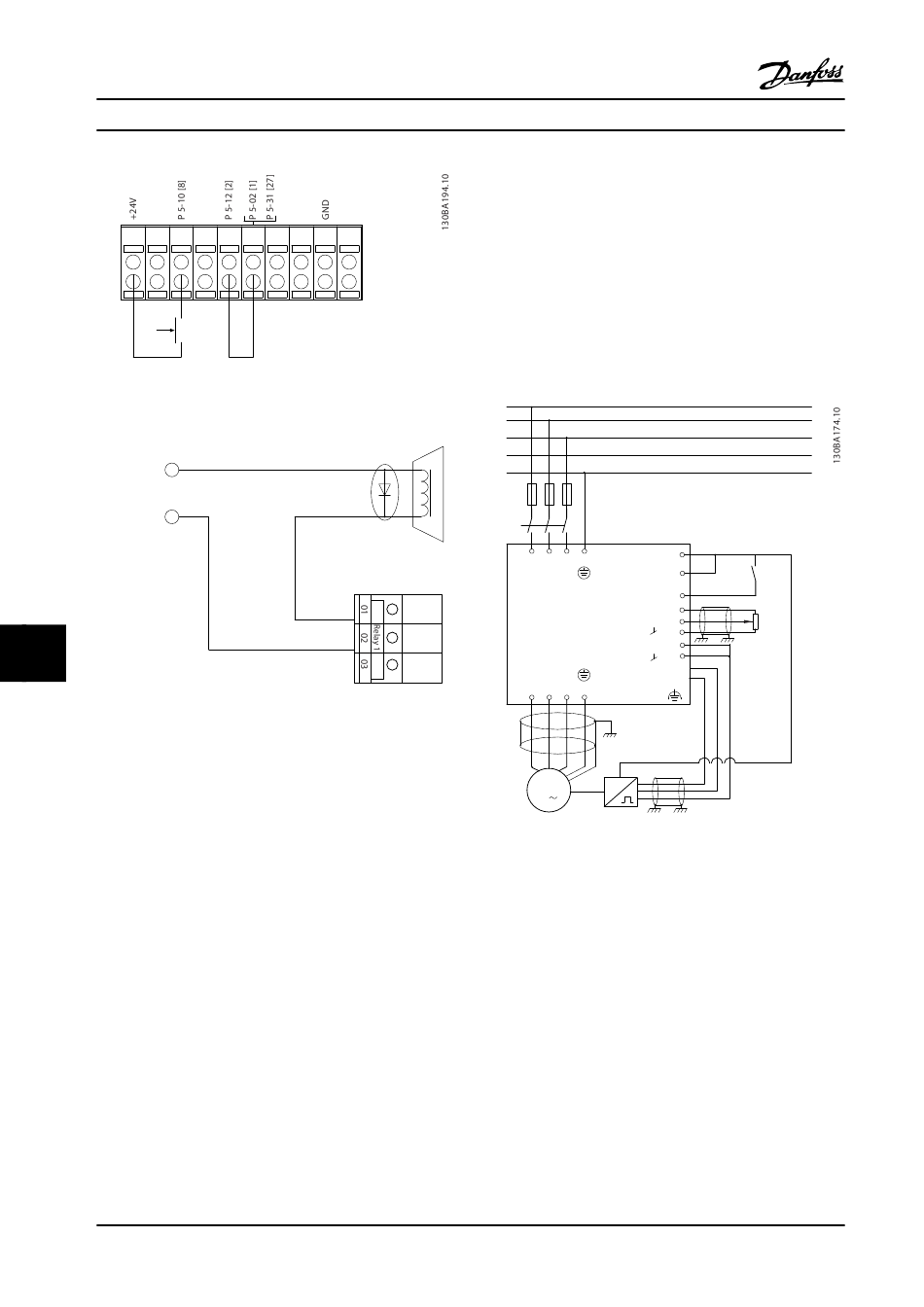

Figure 10.7 Example - Speed Control Connections
