Electrical Installation
4. Insert plug connectors 96 (U), 97 (V), 98 (W) (up
to 10 hp [7.5 kW]) and motor cable to terminals
labeled MOTOR.
5. Fasten shielded cable to the decoupling plate
with screws and washers from the accessory bag.
All types of three-phase asynchronous standard motors can
be connected to the adjustable frequency drive. Normally,
small motors are star-connected (230/400 V, Y). Large
motors are normally delta-connected (400/690 V, Δ). Refer
to the motor nameplate for correct connection mode and
voltage.

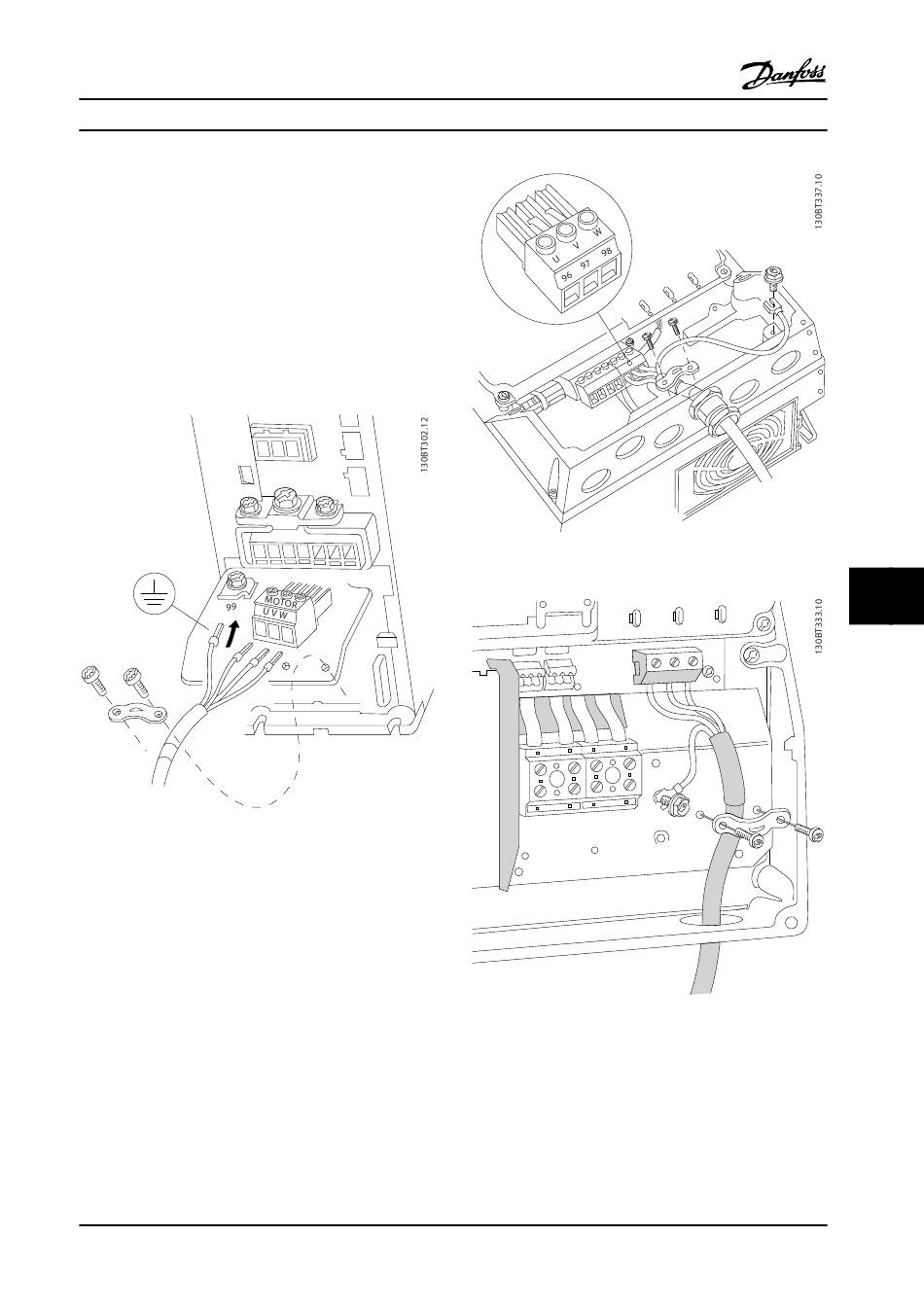

Figure 9.30 Motor Connection for Enclosures A1, A2 and A3
MG33BF22
Design Guide
MOTOR
Figure 9.31 Motor Connection for Enclosures A4/A5
Figure 9.32 Motor Connection for Enclosures B1 and B2
