Options and Accessories

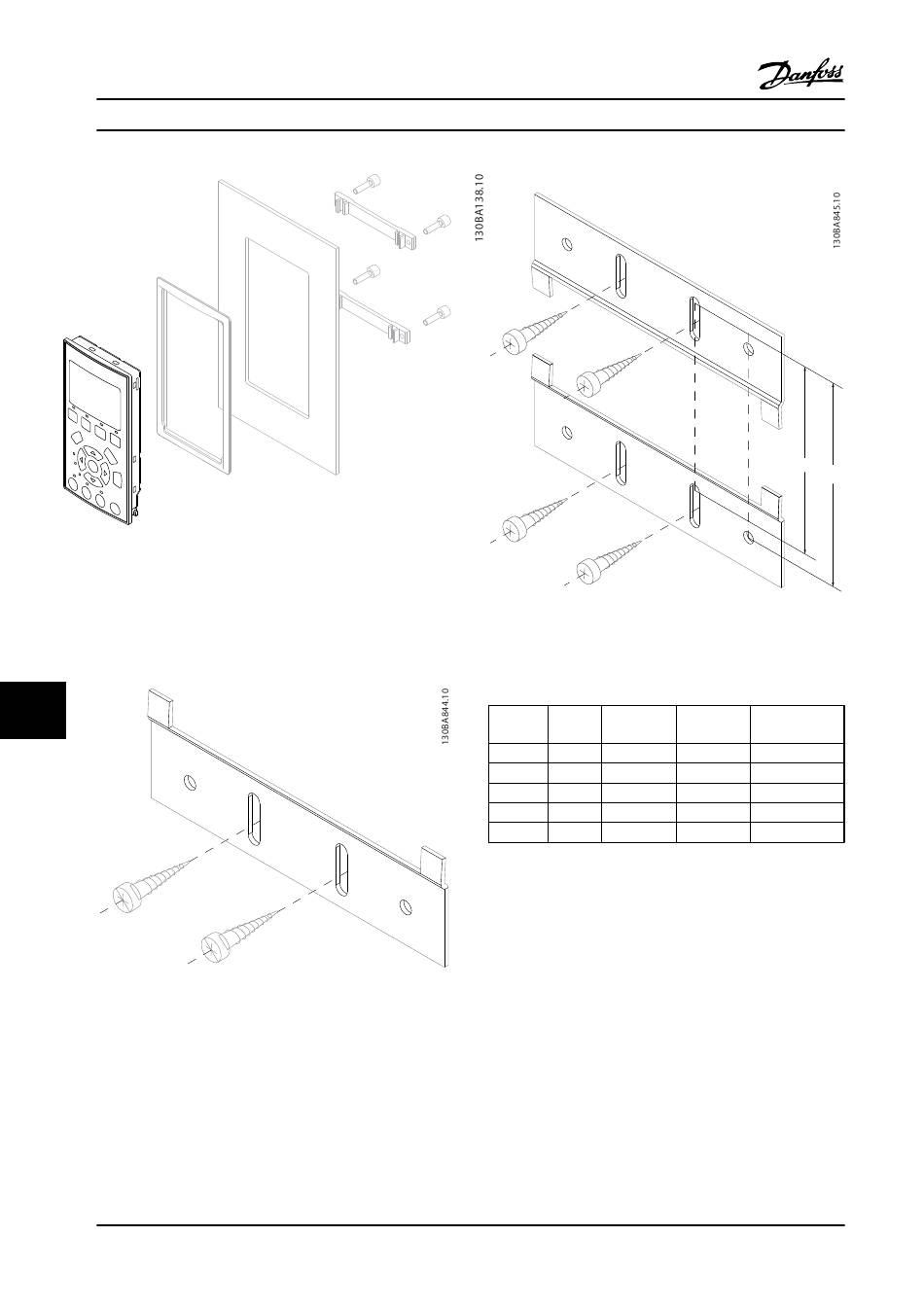

Figure 11.30 LCP Kit with Graphical LCP, Fasteners, 10 ft [3 m]
Cable and Gasket, for US only
11.4.8 Mounting Bracket for Enclosure
Types A5, B1, B2, C1 and C2
Step 1
11 11
Figure 11.31 Lower Bracket
Position the lower bracket and mount it with screws. Do
not tighten the screws completely, as this will make it
difficult to mount the adjustable frequency drive.
186
Design Guide
Step 2
Figure 11.32 Upper Bracket
Measure distance A or B, and position the upper bracket,
but do not tighten it. See dimensions in Table 11.16.
Enclosure
A5
B1
B2
B3
B4
Table 11.16 Details
Rev. 2014-04-04 All rights reserved.
IP A (ins [mm]) B (ins [mm])
55/66 18.90 [480] 19.49 [495]
21/55/66 21.06 [535] 21.65 [550]
21/55/66 27.76 [705] 28.35 [720]
21/55/66 28.74 [730] 29.33 [745]
21/55/66 32.28 [820] 32.87 [835]
A
B
Ordering
number
130B1080
130B1081
130B1082
130B1083
130B1084
MG33BF22
