Network Management Port

The network management port (labeled NET MGT) is an RJ-45 connector located on
the ALOM system controller card and can be accessed from the back panel. This port
needs to be configured prior to use.
NET MGT

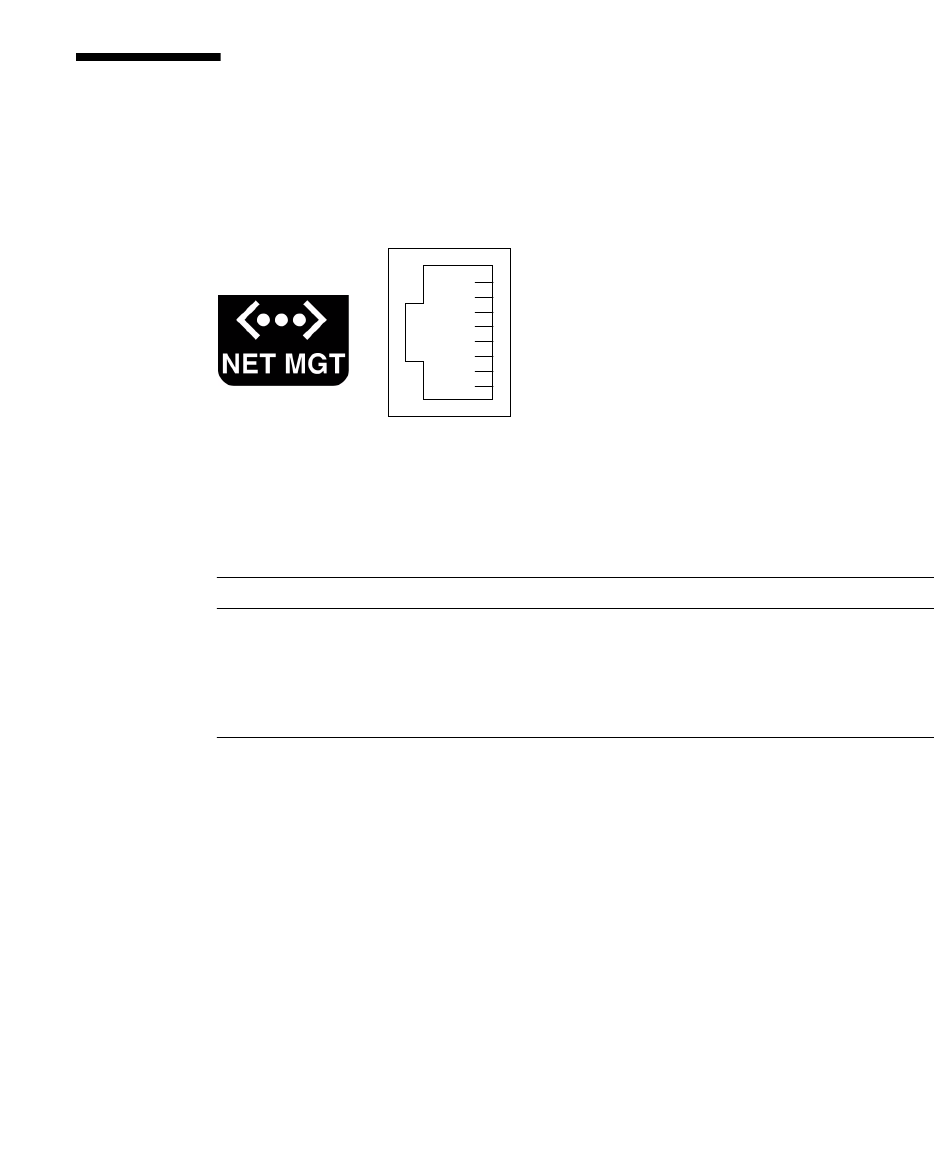

Network Management Port Pin Numbering
FIGURE B-4
Network Management Port Pin Signals
TABLE B-4
Pin Signal Description
1 Transmit Data +
2 Transmit Data –
3 Receive Data +
4 Common Mode Termination
1
8
Pin Signal Description
5 Common Mode Termination
6 Receive Data –
7 Common Mode Termination
8 Common Mode Termination
Appendix B Connector Pinouts 127
