Table 1-4 Fan Tray Leds; Figure 1-5 Fan Tray Status Leds - Sun Microsystems Netra 440 Service Manual

Fan Tray Status LEDs (0-2)
The fan tray LEDs are located behind the front cover, directly above each fan tray.
Note that these LEDs give information only for fan trays 0-2; they do not give
information on fan tray 3, located inside the system.

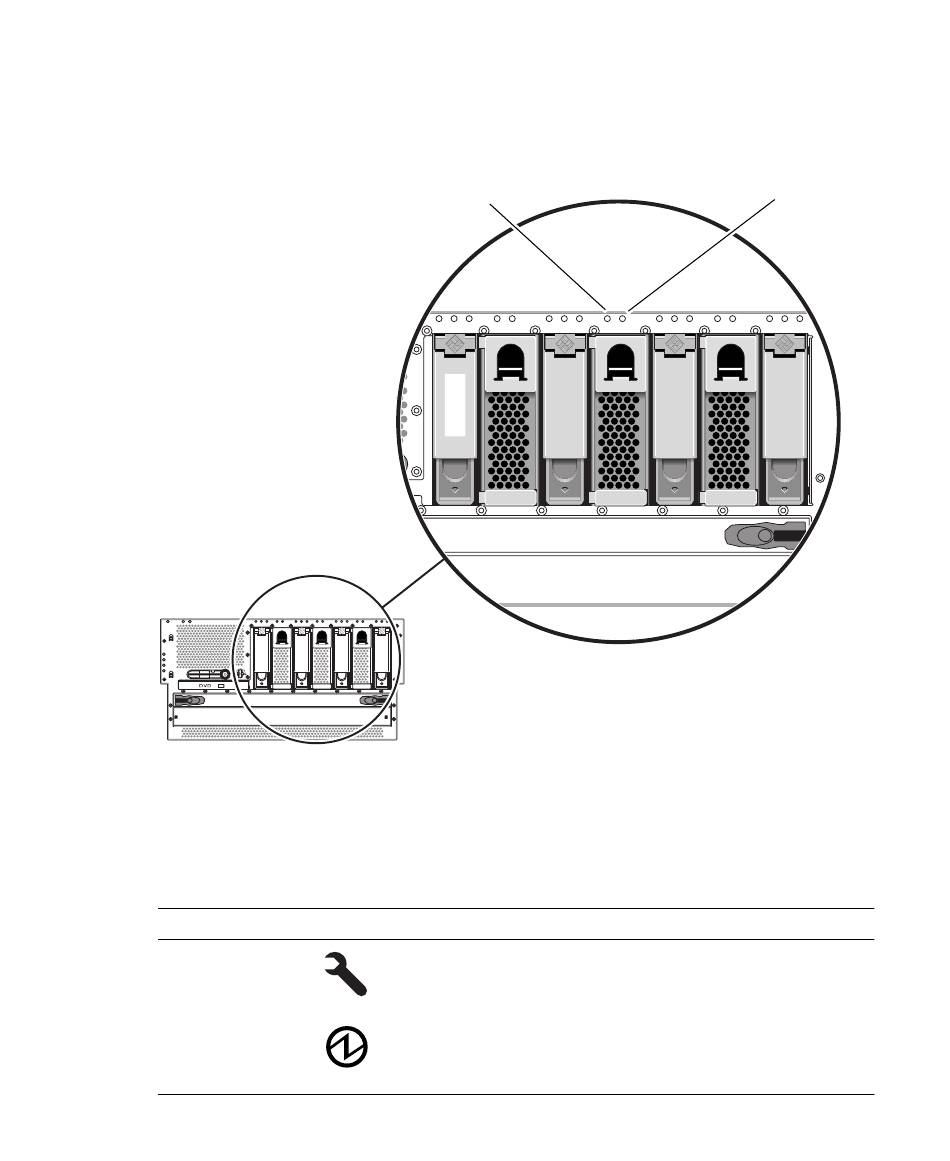

FIGURE 1-5
The following table describes the fan tray LEDs.
TABLE 1-4
Name
Service Required
Activity
8 Netra 440 Server Service Manual • August 2004
Service Required LED
SCC
Fan Tray Status LEDs
Fan Tray LEDs
Description
This amber LED lights when there is a fault detected with
the fan tray. Note that the Service Required LEDs on the
front and back panels also light when this occurs.
This green LED lights when the fan tray is on and
operating normally.
Active LED
