Serial Management Port (SERIAL MGT)

The serial management port (labeled SERIAL MGT) is an RJ-45 connector located on
the ALOM system controller card and can be accessed from the back panel. This port
is the default connection to the system. This is also the TTYA port for the system.

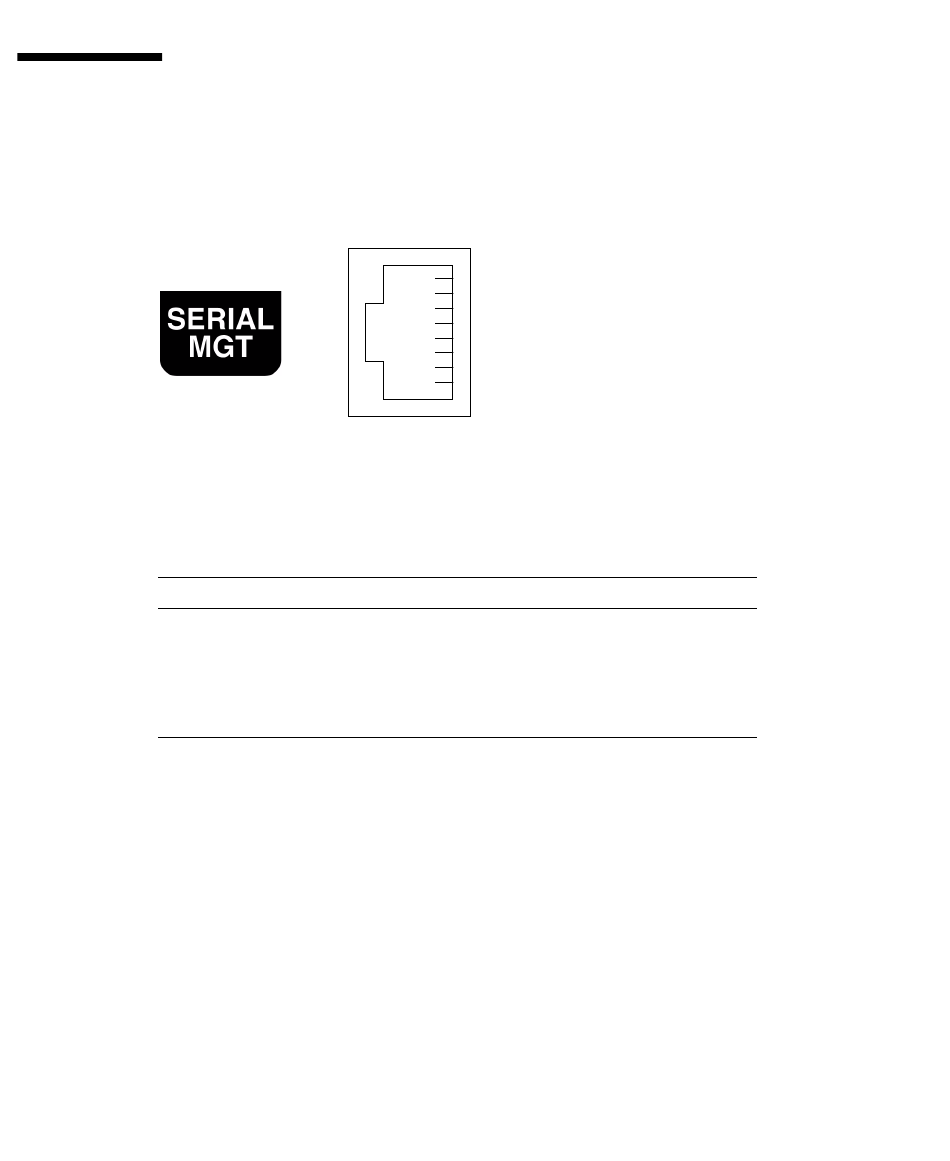

FIGURE B-5
TABLE B-5
Pin
1
2
3
4
128 Netra 440 Server Service Manual • August 2004
Serial Management Port Pin Numbering
Serial Management Port Pin Signals
Signal Description
Request to Send
Data Terminal Ready
Transmit Data
Ground
1
8
Pin Signal Description
5 Ground
6 Receive Data
7 Data Set Ready
8 Clear to Send
