8. Pull the PCI card from its slot.
FIGURE 4-26
FIGURE 4-27
Hold the card by the faceplate and its opposite edge. Pull up while rocking the card
from end to end until it is freed from its slot.
Caution – Do not apply excessive force to one end or one side of the card. Doing so
could damage the card.

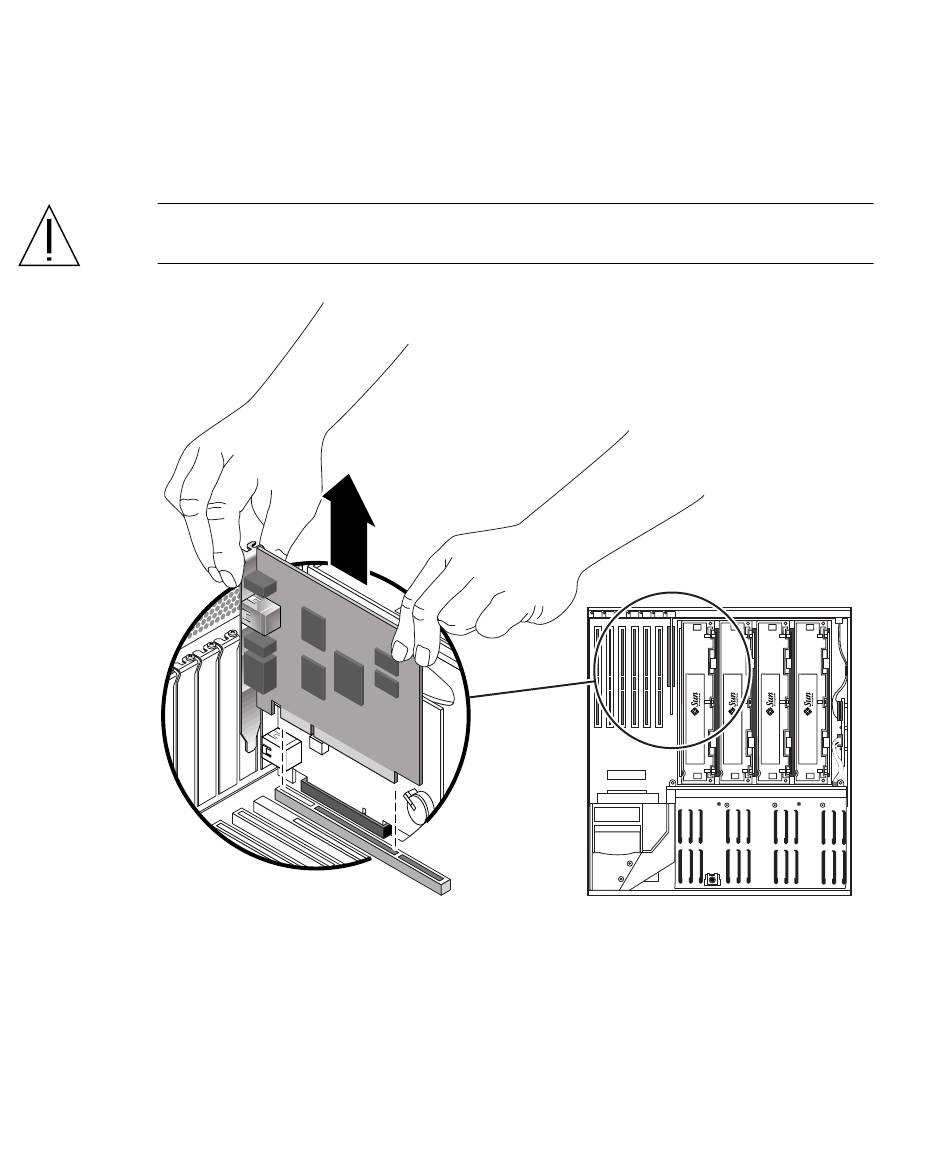

FIGURE 4-26
90
Netra 440 Server Service Manual • August 2004
shows a regular PCI card being removed from the system, and
shows a long PCI card being removed from the system.
Removing a Regular PCI Card
