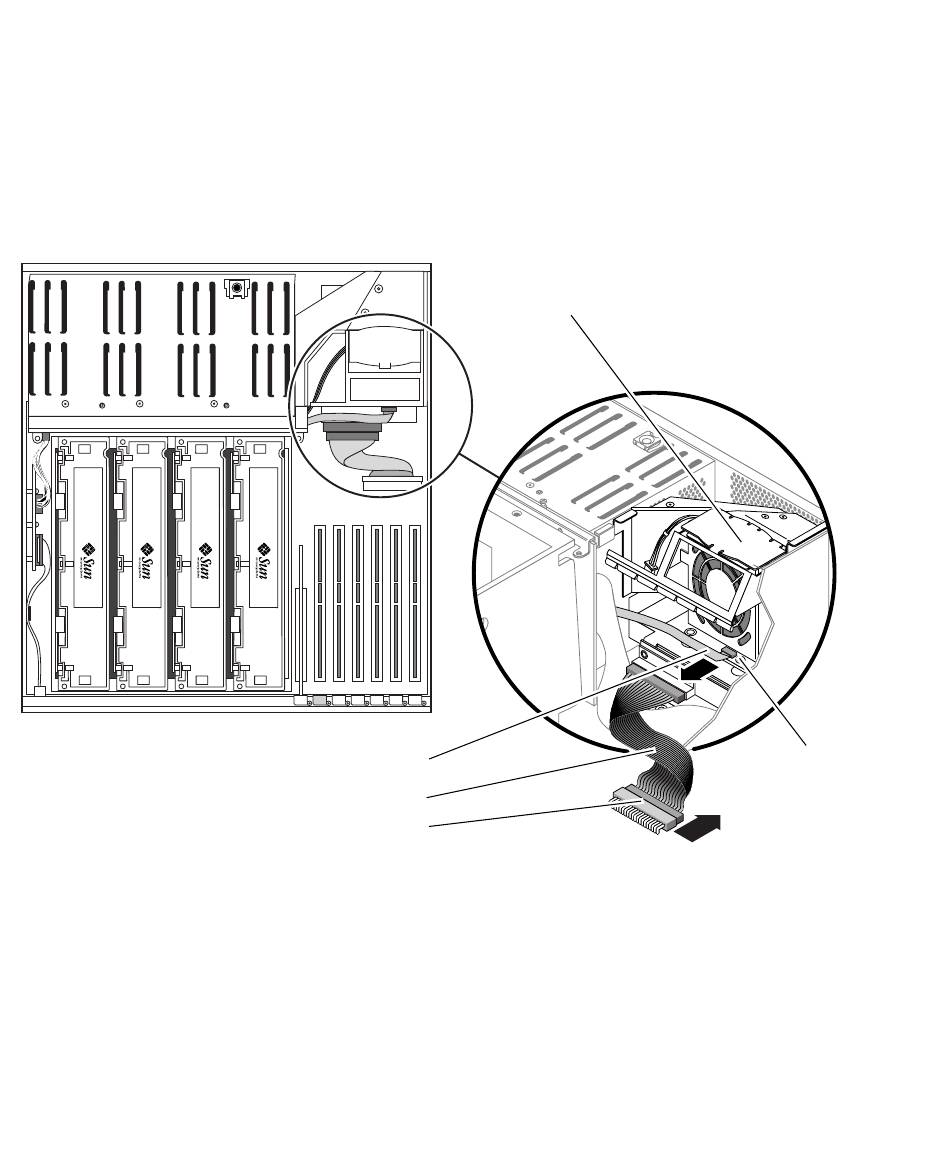

Figure 4-8 Locating J18 And P1 Connectors - Sun Microsystems Netra 440 Service Manual

9. Disconnect the connector board power cable from the J18 connector on fan tray 3
(
FIGURE 4-8
Pull the cable out of the connector.
10. Disconnect the P1 DVD cable from the P1 connector on the motherboard
(
FIGURE 4-8
Lift up the connector ejector levers as far as they go to release the DVD cable end
from the connector, then pull the DVD cable out of the connector.
Connector board power cable
Locating J18 and P1 Connectors
FIGURE 4-8
11. Remove the PCI cards from the system, if necessary.
If short PCI cards are installed in the PCI slots at the rear of the system, you do
■
not have to remove them from the system. Go to
If long PCI cards are installed in the PCI slots at the rear of the system, you must
■
remove them from the system before you can remove the system configuration
card reader. See
return here.
62 Netra 440 Server Service Manual • August 2004
).
).
DVD cable
P1 connector
"Removing a PCI Card" on page 86
Fan tray 3 assembly
Step 12.
for those instructions, then
J18 connector
