Network Management Port

The server has one 10BASE-T Ethernet management domain interface, labelled NET
MGT. For information on configuring this port for managing the server with ILOM,
refer to the Sun Netra T5220 Server Administration Guide.
Caution – If you are planning to use the network management (NET MGT) port,
you must use a shielded Ethernet cable to maintain your server's NEBS compliance.
The cable's shield must be grounded at both ends.

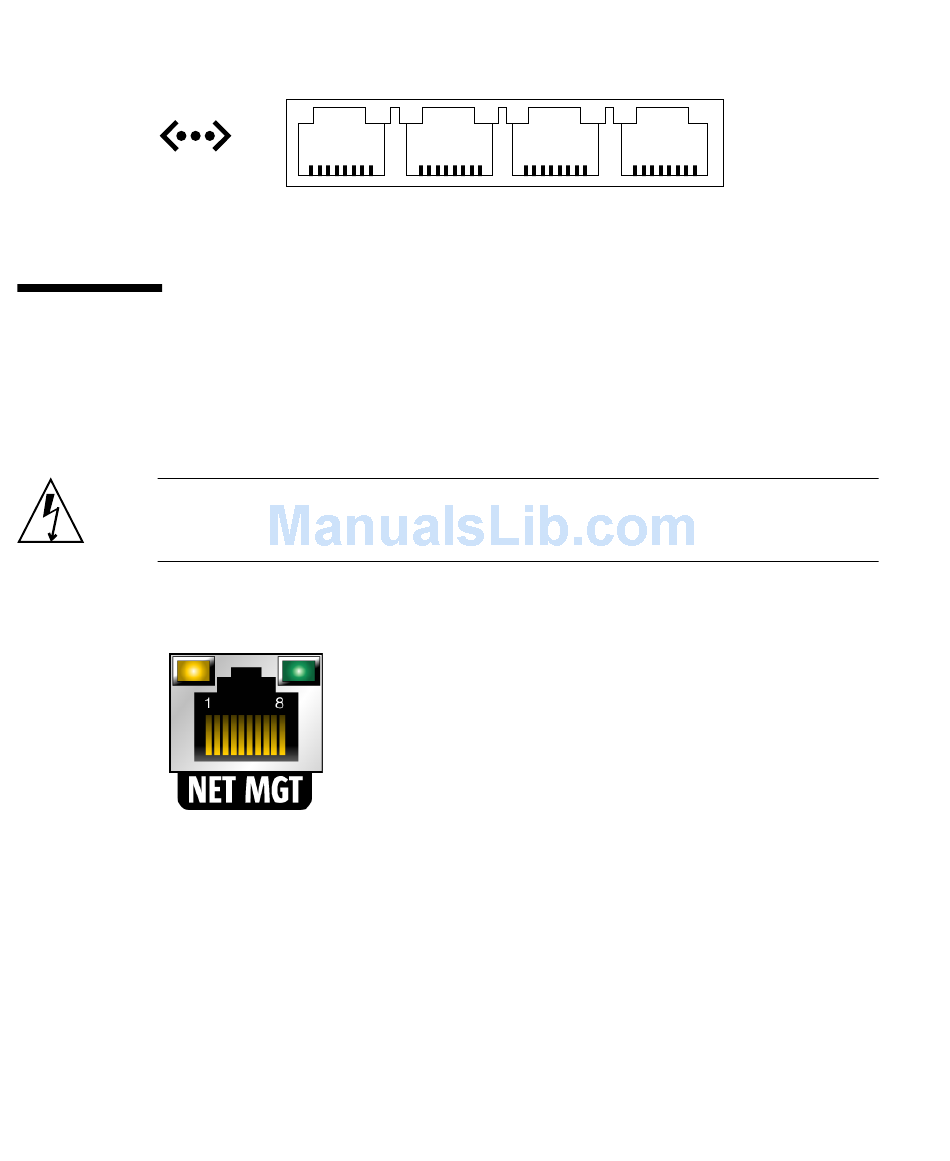

FIGURE A-2
A-2 Sun Netra T5220 Server Service Manual • January 2012
Gigabit Ethernet Port Pin Numbering
NET0 NET1
8 1 8
Network Management Port Pin Numbering
NET2 NET3
1 8 1 8 1
