2. Attach the antistatic wrist strap.
See "Avoiding Electrostatic Discharge" on page
3. Remove the top cover.
See "Installing the Top Cover" on page
4. Disconnect any external cables attached to the faceplate of the PCI card.
5. Disconnect any internal cables connected to the PCI card internal connectors.
6. Remove the Phillips No. 1 screw securing the card to the system back panel.
shows the screw being removed for a regular PCI card, and
FIGURE 4-23
shows the screw being removed from a long PCI card.

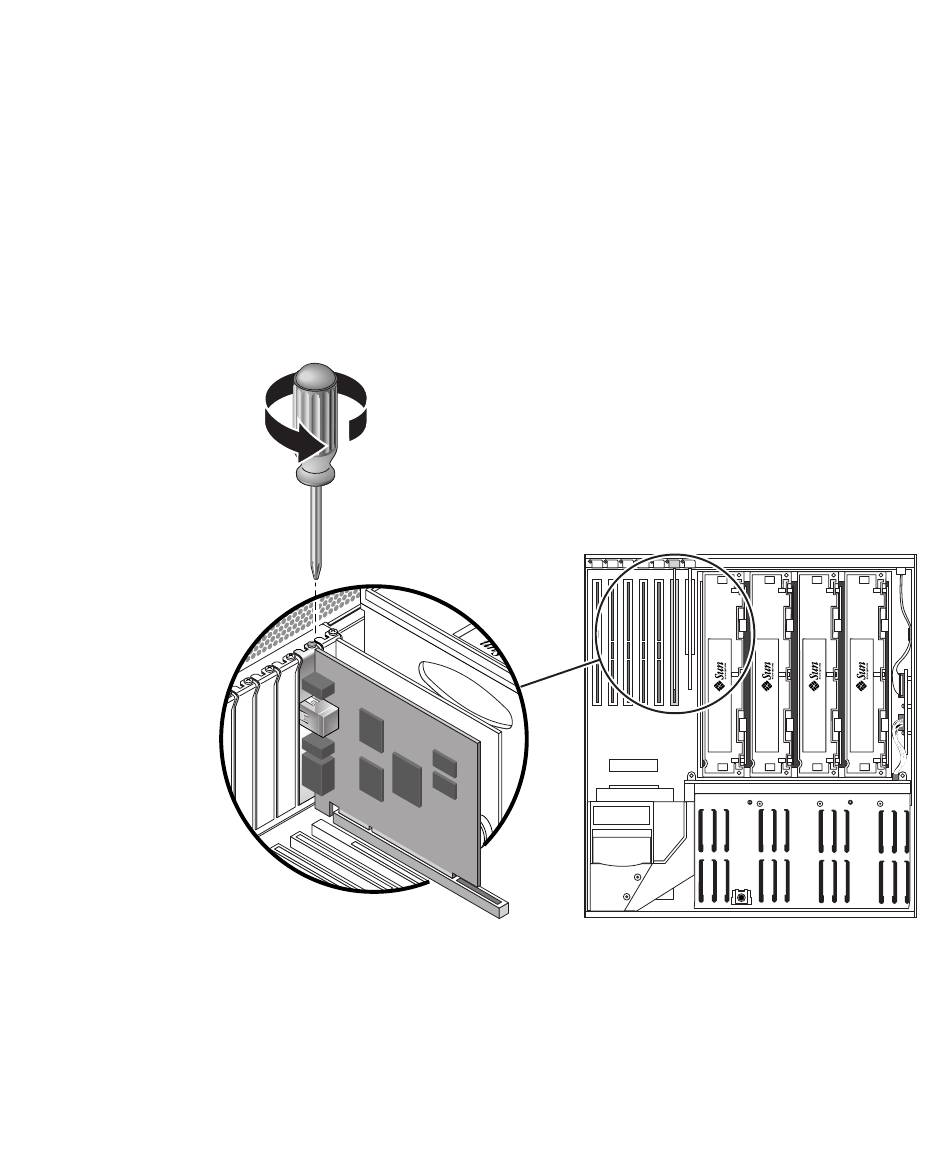

Removing the Screw for a Regular PCI Card
FIGURE 4-23
31.
Chapter 4 Removing and Replacing Cold-Swappable Components
32.
FIGURE 4-24
