10. Disconnect the cables from the following connectors on the rear of the SCSI
backplane (the side facing the rear of the system):
Alarm input connector
■
SCSI power to motherboard connector
■
shows the locations of these connectors.

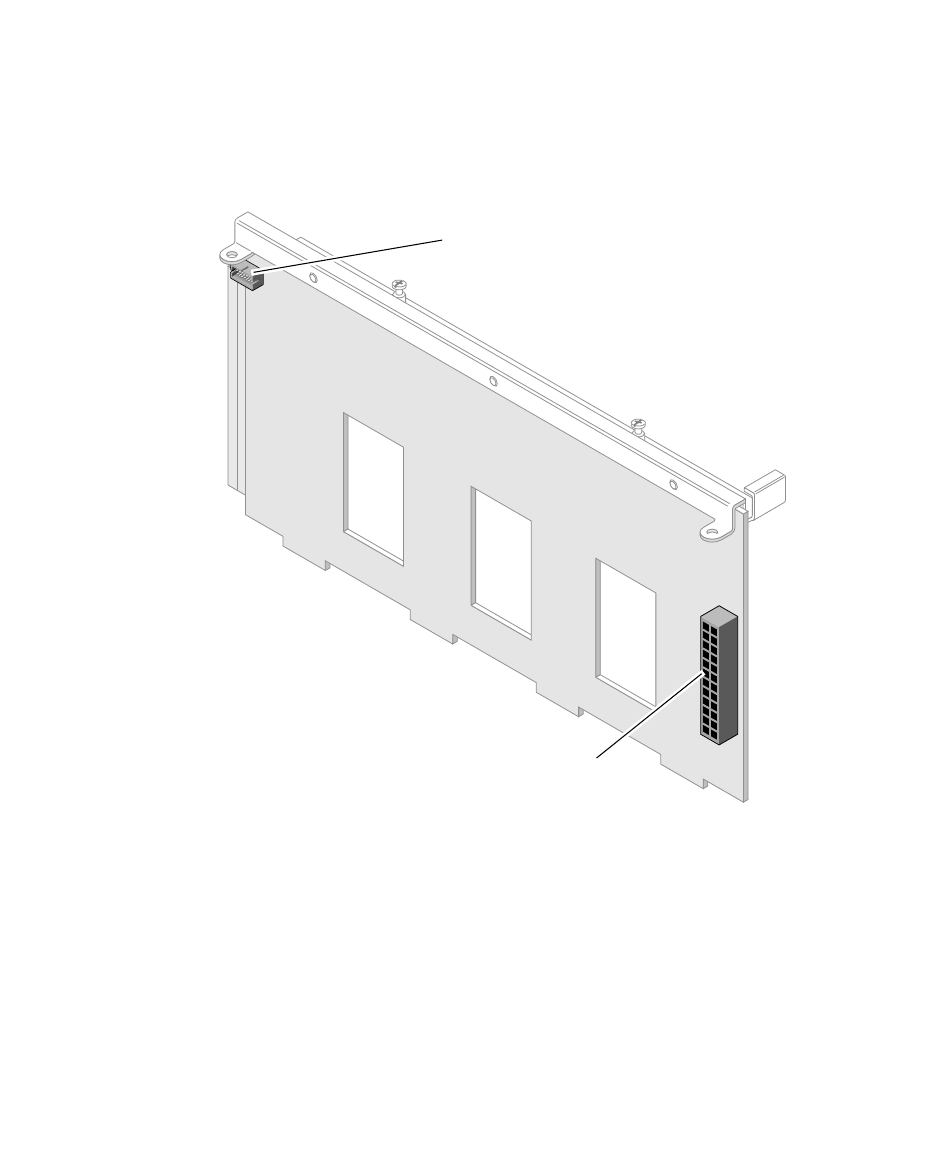

FIGURE 4-15
SCSI power to motherboard connector
SCSI Backplane Connectors, Rear
FIGURE 4-15
Alarm input connector
Chapter 4 Removing and Replacing Cold-Swappable Components
71
