Fiber Notes

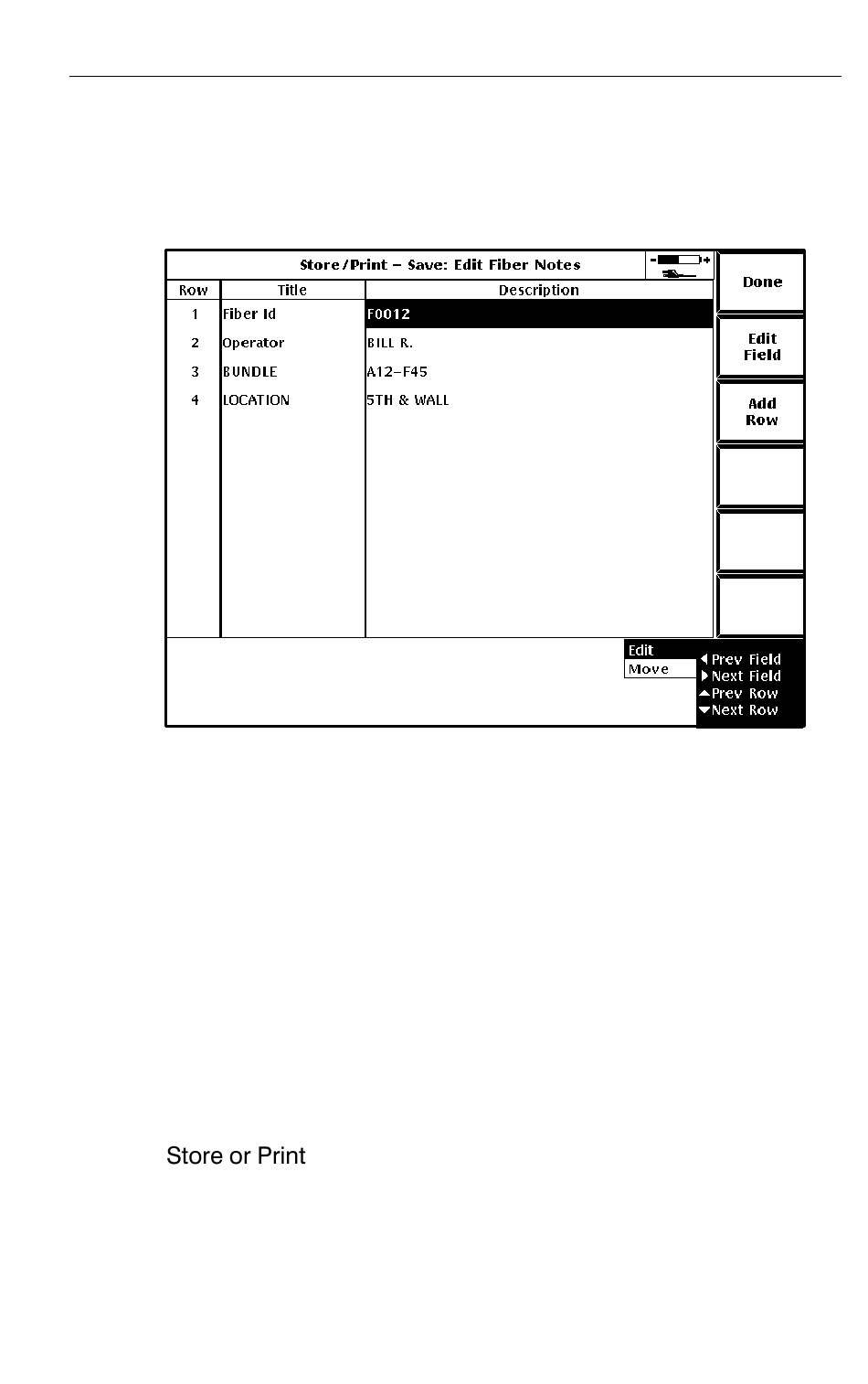

Figure 2–4: Typical Edit Fiber Notes Screen.
Through the file-storage system, you can enter and edit up to twelve
fiber notes associated with the current acquisition. Fiber notes are
saved when you save waveform or event-table data, or you can save
fiber notes alone into a file. Fiber notes are printed when you print
waveform or event-table files.
As shown in figure 2–4, notes 1 and 2 are defined as the fiber ID and
operator name. You cannot move or delete these notes, or change the
titles. (Applies to software version 8.0 and above.)
Enter and edit fiber notes for the current acquisition by pressing the
option.
View fiber notes for files on floppy disk or in internal memory on the
Load, Delete, and Print screens.
TFS3031 TekRanger/TekRanger 2 User Manual
softkey and selecting either the Save or the Print
Testing A Fiber
2–13
