Figure 3-2: Nicad Battery Disconnection, Removal And - Tektronix ATECTekRanger User Manual

Recharging the NiCad Battery
Step 4. Install the new battery by reversing the removal sequence.
Battery compartment cover

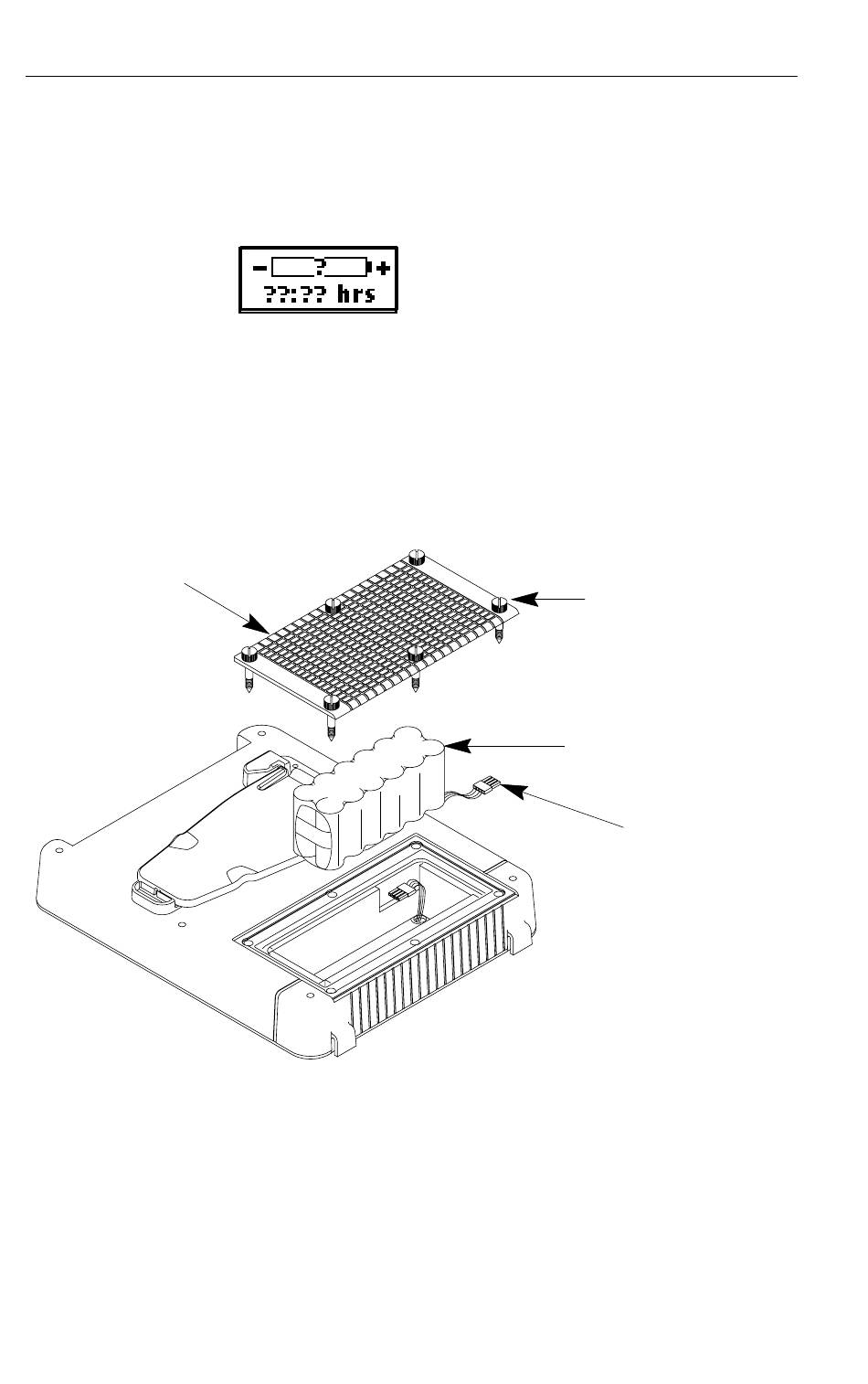

Figure 3–2: NiCad Battery Disconnection, Removal and Replacement
3–6
indicator in upper right screen displays question marks
until full recharge or discharge is reached. The question
marks are also displayed for about 10 seconds when the
unit is first turned on, as well as when the AC adapter is
unplugged, until a valid time estimate is calculated.
TFS3031 TekRanger/TekRanger 2 User Manual
When a NiCad battery is discon-
nected then reconnected, or a new
NiCad battery is installed, the battery
Loosen these
NiCad Battery
screws
Battery cable
plug
