Cleaning

Cleaning the Connector Adapter

Step 1. Blow through each end of the connector adapter barrel with
Step 2. Dampen a lint-free pipe cleaner with electronics-grade
Step 3. Gently insert the dampened pipe cleaner into the barrel of
Step 4. Pull the pipe cleaner completely through the barrel.
Step 5. Blow the barrel completely dry with dust-free canned air.
If the connector adapter is extremely dirty repeat the procedure with
a second pipe cleaner.
Canned Air

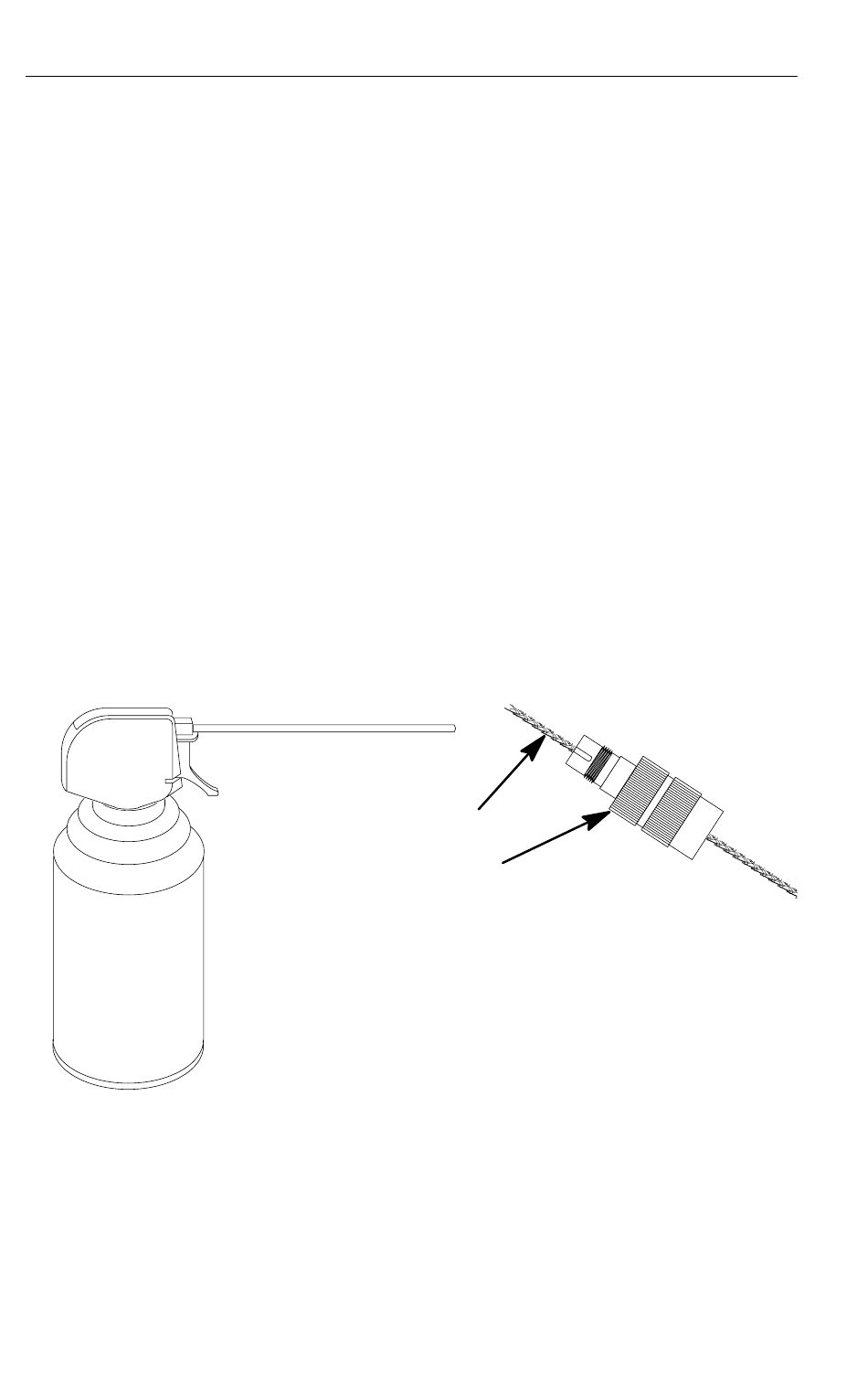

Figure 4–3: Cleaning the Connector Adapter
4–4
dust-free canned air (see Figure 4–3).
alcohol. The pipe cleaner absorbent should be about 0.35
cm (0.15 inch) in diameter, and the wire part of the pipe
cleaner should be less than 0.1 cm (0.04 inch) in diameter.
the connector adapter. Be careful not to scratch the barrel
with the wire while inserting it.
Connector adapter
TFS3031 TekRanger/TekRanger 2 User Manual
Pipe cleaner
