Fiber Test Procedure

The following example describes how to test and make measure-
ments on a fiber. This example is typical of a new first-time test after
instrument power on.

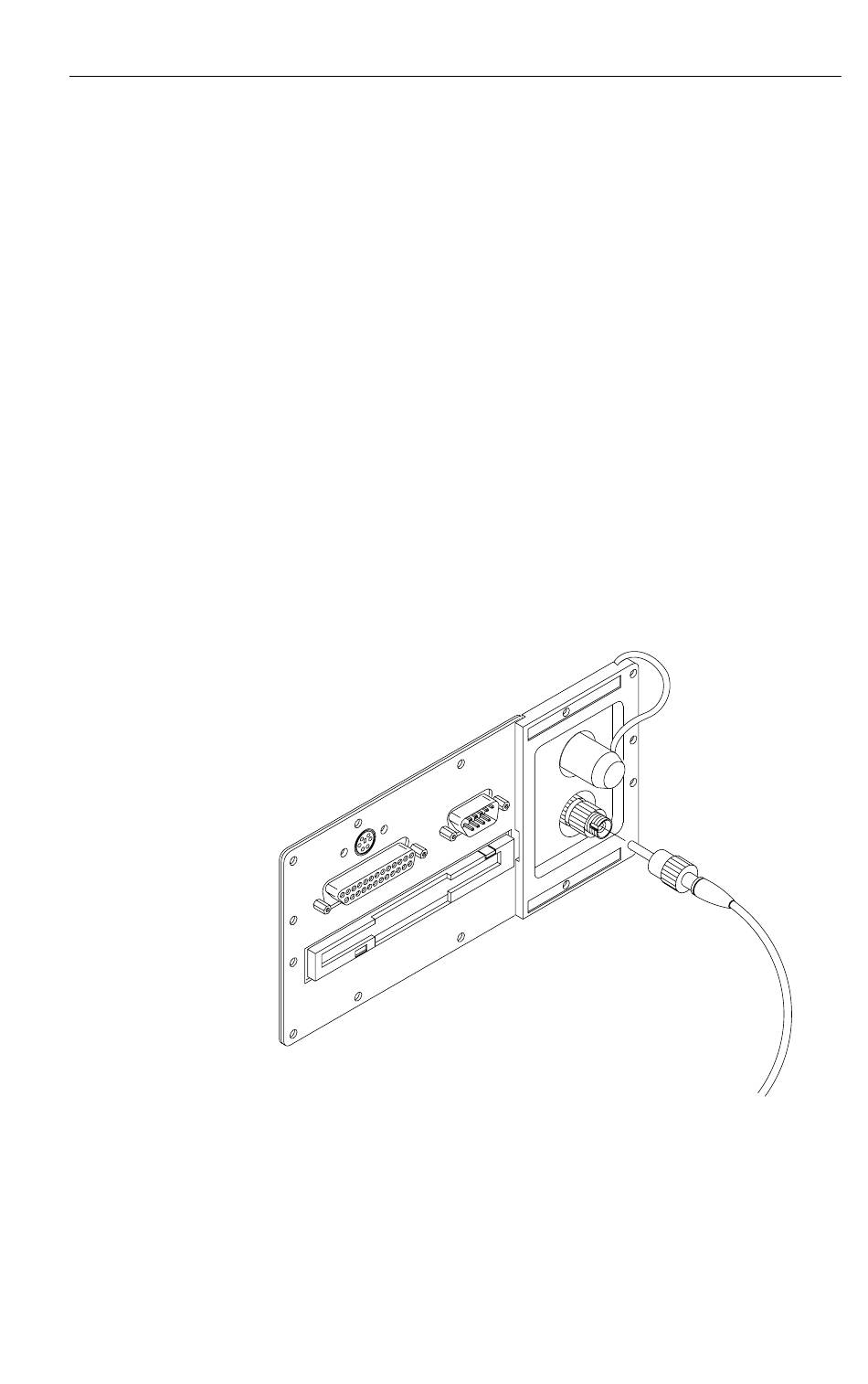

Step 1. Connect the test fiber to the connector adapter on the
TFS3031 TekRanger/TekRanger 2 User Manual
appropriate Laser Output port (on dual-port instruments).
Connect the fiber directly to the port or use a jumper cable.
The connection should be finger tight.
The connector adapter and fiber connector must match. If
necessary, see page 1–2 for connector adapter installation
instructions.
Note: If both singlemode and multimode Laser Output ports
are installed, singlemode will be on top and multimode on
bottom. If one Laser Output port is installed, it will always be
on the bottom whether singlemode or multimode. The ports
are identified by label.
Testing A Fiber
2–3
