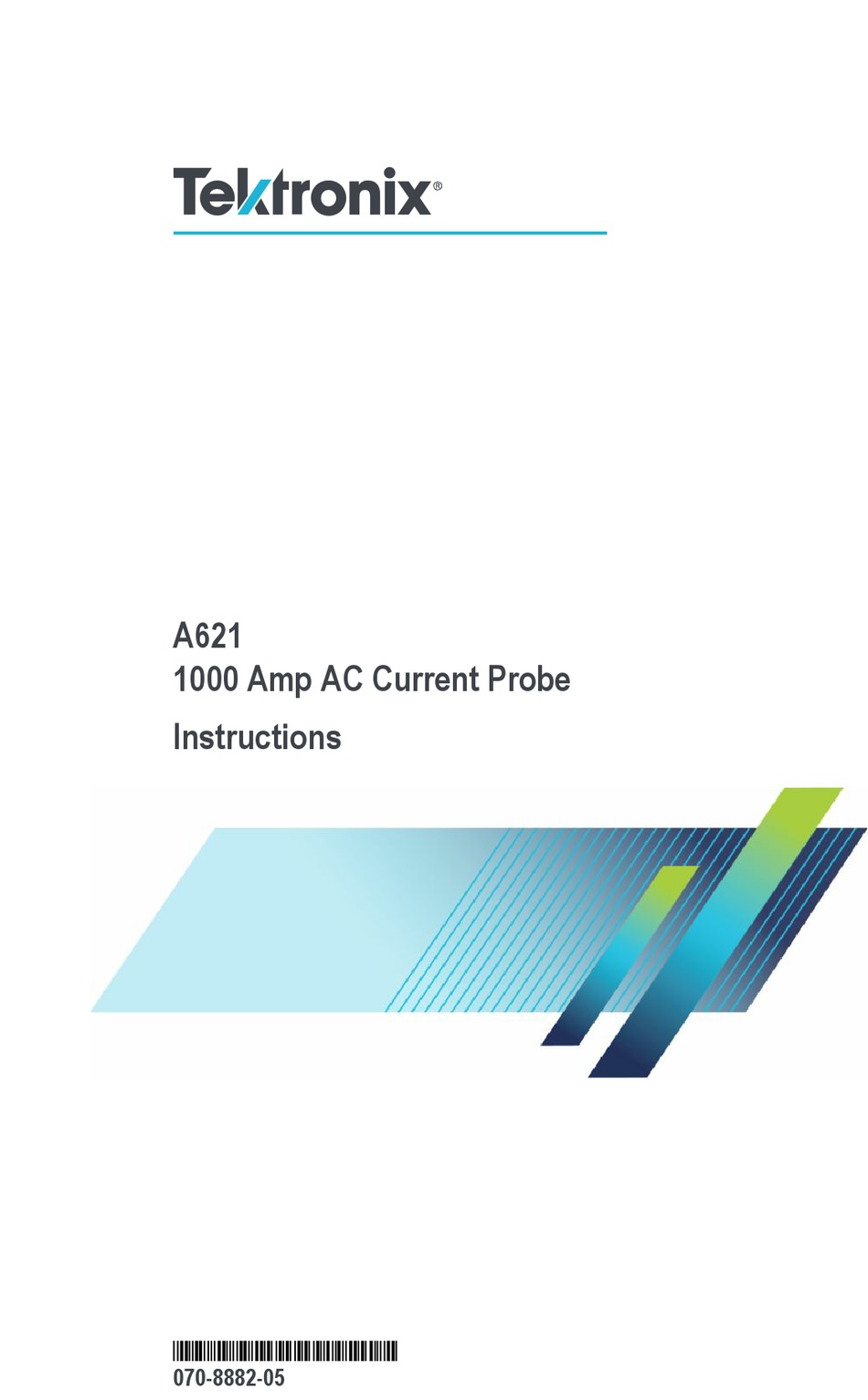

- Page 1 A621 1000 Amp AC Current Probe Instructions *P070888205* 070-8882-05...
- Page 3 A621 1000 Amp AC Current Probe Instructions www.tek.com 070-8882-05...
- Page 4 Copyright Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
- Page 5 product.
-
Page 7: Important Safety Information
Category (CAT) ratings and voltage or current rating. Do not apply a potential to any terminal, including the common terminal, that exceeds the maximum rating of that terminal. Do not use the probe anywhere beyond the tactile barrier. A621 Instructions... - Page 8 Do not connect a current probe to any wire that carries voltages, current, or fequencies above the current probe rating. The tactical barrier is located at the base of the jaw. Refer to the A621 current probe figure in the section of this document.
-
Page 9: Service Safety Summary
These terms may appear in this manual: WARNING. Warning statements identify conditions or practices that could result in injury or loss of life. CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property. A621 Instructions... -
Page 10: Terms On The Product
(This symbol may also be used to refer the user to ratings in the manual.) The following symbols may appear on the product: A621 Instructions... -
Page 11: Compliance Information
Compliance information This section lists European contact information, safety, and environmental standards with which the instrument complies. European contact: Tektronix UK, LTD Western Peninsula Western Road Bracknell, RG12 1RF United Kingdom Safety compliance This section lists the safety standards with which the product complies and other safety compliance information. - Page 12 The area is protected from direct sunshine, rain, or direct wind. Pollution Degree 4. Pollution that generates persistent conductivity ■ through conductive dust, rain, or snow. Typical outdoor locations. A621 Instructions...
-
Page 13: Environmental Compliance
Other circuits within the product do not have either rating. Environmental compliance This section provides information about the environmental impact of the product. Product end-of-life handling Observe the following guidelines when recycling an instrument or component: A621 Instructions xiii... - Page 14 This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2012/19/EU and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Tektronix Web site (www.tek.com/productrecycling). A621 Instructions...
-
Page 15: Operating Basics
1000 amps RMS on Tektronix TDS, TAS, or general purpose oscilloscopes. The A621 is especially useful where the display and measurement of distorted current waveforms and harmonics is required. The A621 is also compatible with DMMs by using the BNC- to-banana plug adapter (see Replaceable parts on page 12). -
Page 16: Operating Procedure
Refer to the following figure. NOTE. Clamping around both the “hot” and neutral wires may give you a zero reading. Figure 2: Connecting the A621 (Remember to unclamp the probe from the conductor before disconnecting it from your meter or instrument.) Adjust the probe range and oscilloscope channel as necessary to get a clear view of the signal. - Page 17 To increase the measurement sensitivity of the A621, loop additional turns of the wire under test through the jaws. See Figure 3. The sensitivity of the A621 will be multiplied times the number of loops in the jaws. For example: 10 mV/A X 4 turns = 40 mV/A.
- Page 18 Operating basics Figure 4: Increasing the A621 sensitivity A621 Instructions...
-
Page 19: Maintenance
Do not immerse the probe in liquids or use abrasive cleaners. Specifications These characteristics apply to an A621 probe installed on a Tektronix TDS320 oscilloscope. The oscilloscope must be warmed up for at least 20 minutes and be in an environment within the limits specified in Table 3: Environmental characteristics on page 7. - Page 20 Table 2: Physical characteristics Dimensions 206 mm x 48 mm x 105 mm (8.11 x 1.89 x 4.13 inches) Maximum conductor size 54 mm (2.13 inches) Cable length 1.5 m (5 feet) Weight 650 g (1.43 lb) Figure 5: Physical dimensions A621 Instructions...
- Page 21 0 °C to +50 °C (+32 °F to +122 °F) Non-operating (storage) --20 °C to +80 °C (--4 °F to +176 °F) Humidity 0° C to 40° C, 95% humidity 40° C to 50° C, 45% humidity Typical response curves A621 Instructions...
- Page 22 Maintenance A621 Instructions...
-
Page 23: Performance Verification
Maintenance Performance verification This procedure verifies that the A621 performs as specified. It can also be an acceptance check. There are no A621 adjustments. This procedure is valid when: ■ The system is operated in an environment that conforms to the A621 environmental specifications (0 °C to 50 °C unless otherwise... - Page 24 For the accuracy check you will need a simple current loop. Wind 100 turns of 20 AWG ( ≈0.9 mm diameter) coated wire around a cylindrical form approximately 7.5 cm (3 inches) in diameter. Requires Tektronix TM500 Series or Tektronix TM5000 Series Power Module A621 Instructions...
- Page 25 Vertical deflection to 500 mV / div. ■ Coupling to DC Set the A621 sensitivity switch to 100 mV / A and center the trace on the oscilloscope screen. Clamp the A621 around the 100 turn current loop. If necessary, readjust the signal generator output to read between...
-
Page 26: Preparation For Shipment
■ A BNC-to-banana plug adapter (for use with DMM's) Tektronix part number 012-1450-XX The A621 does not have any user replaceable parts. If you should have trouble with your probe, contact your local Tektronix Service Center or representative for help.
