Figure 2-14: Typical Load Screen - Tektronix ATECTekRanger User Manual

Load

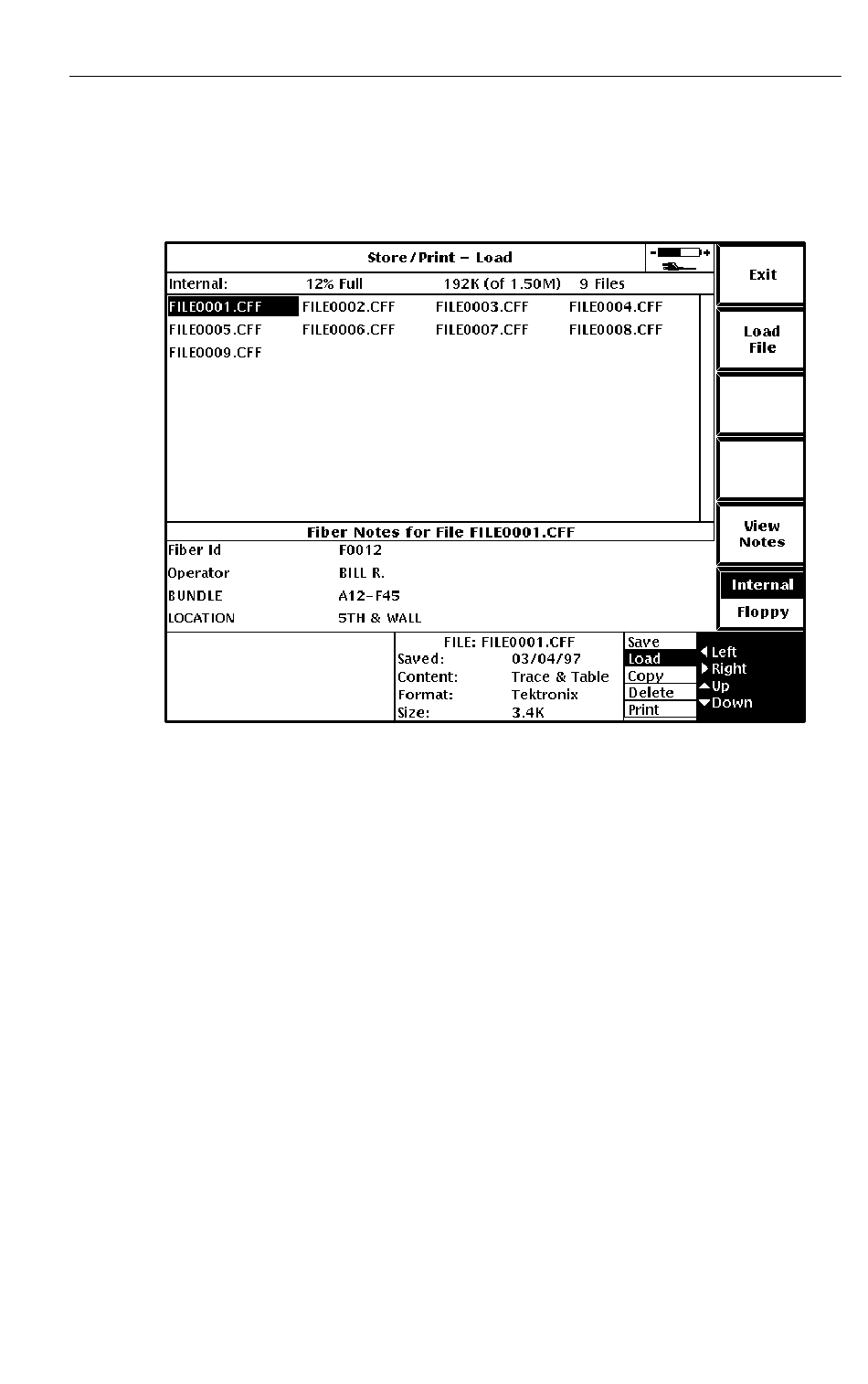

Figure 2–14: Typical Load Screen.
The Load option retrieves a file from storage and displays it on the
screen. What gets loaded depends on file content (the value of File
Content setup when the file was saved – see page 1–44).
Note that Text-formatted files other than fiber-note files cannot be
loaded onto the screen.
When loading a waveform, event-table, or setup file the current test
is cleared from the screen. Then the file contents in storage are
loaded onto the screen as a new test.
If the File Content setup is set to Trace, Table, or Table and Trace,
either or both the waveform and table are loaded along with
associated test setups.
If the File Content setup is set to Setups, only instrument setups are
loaded onto the screen. The waveform and event table displays are
blank.
