Cleaning

Exposing the Laser Output Port for Cleaning

Remove the connector adapter by unscrewing it counterclockwise
and pulling it off the Laser Output port.
When the connector adapter is removed the Laser Output port is
accessible for cleaning.
NOTE. The connector adapter and Laser Output port are keyed for
proper mating during reinstallation.

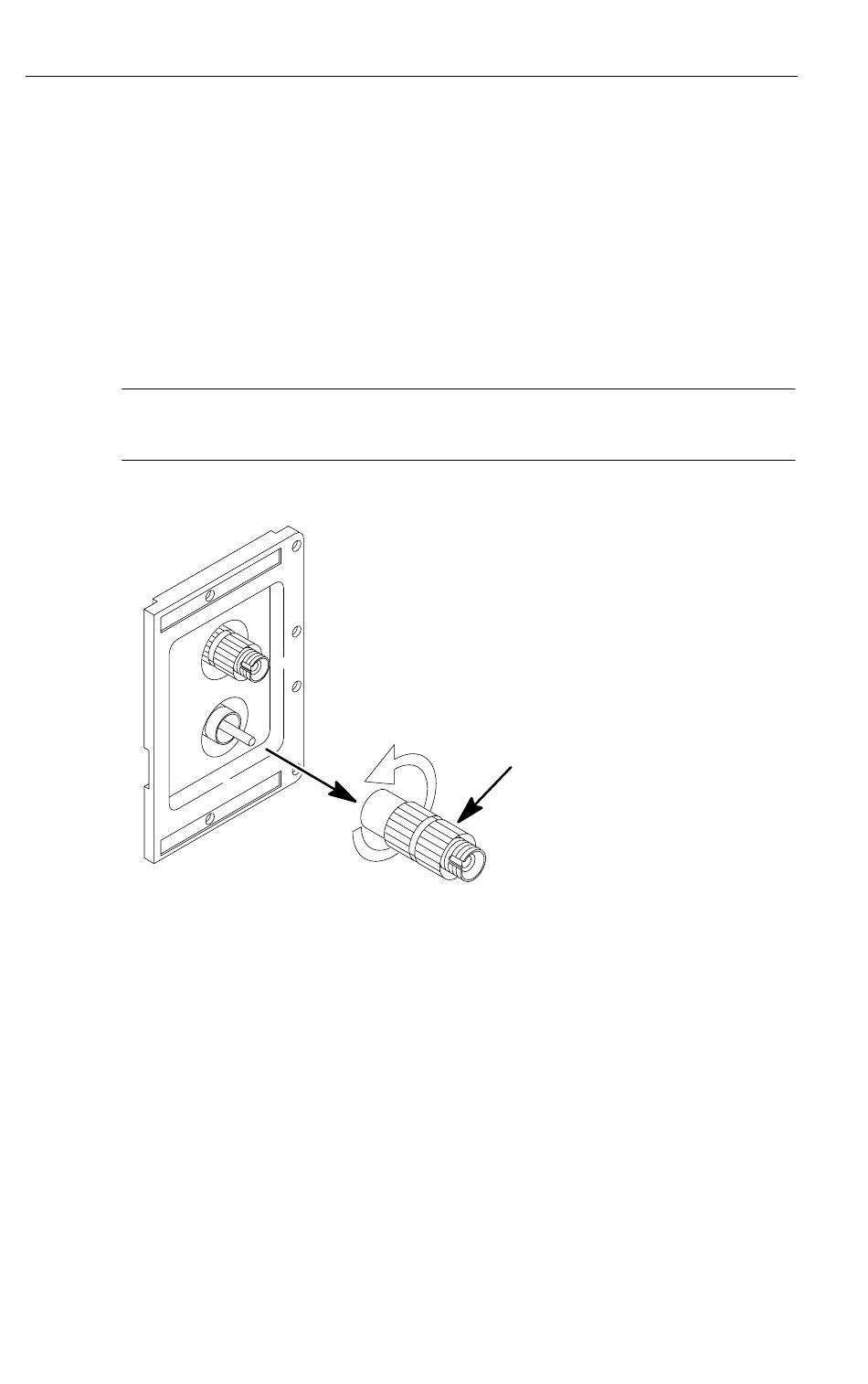

Figure 4–1: Exposing the Laser Output port for Cleaning
4–2
TFS3031 TekRanger/TekRanger 2 User Manual
Unscrew connector adapter
counterclockwise and pull off
of Laser Output port.
