Figure Legend

Power Cord Connector

The power cord connector is an IEC-compatible connector at the rear panel.
Connect a standard grounding AC cord to the connector on the Library, and
connect the other end to a reliably grounded AC outlet or to a storage cabinet
power outlet.
To maintain safety compliance, use an approved power cord:
I
United States — UL listed
I
Canada — CSA certified
I
Europe — Harmonized marked <HAR> or nationally certified

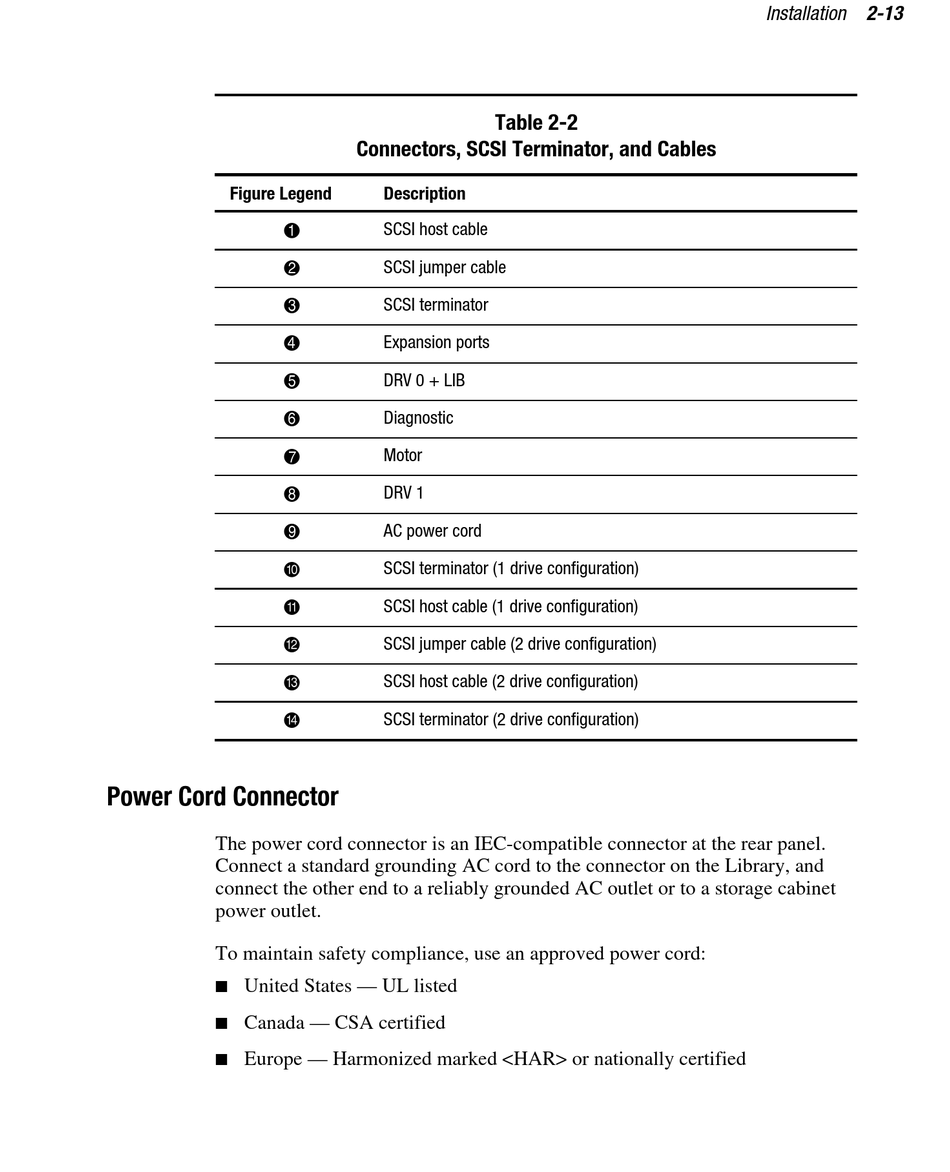

Connectors, SCSI Terminator, and Cables
Description
1
SCSI host cable
2
SCSI jumper cable
3
SCSI terminator
4
Expansion ports
5
DRV 0 + LIB
6
Diagnostic
7
Motor
8
DRV 1
9
AC power cord
:
SCSI terminator (1 drive configuration)
;
SCSI host cable (1 drive configuration)
<
SCSI jumper cable (2 drive configuration)
=
SCSI host cable (2 drive configuration)
>
SCSI terminator (2 drive configuration)
Table 2-2
Installation 2-13
