HP StorageWorks
DAT 320 and 160 SAS
External tape drive
Start Here
IMPORTANT INFORMATION ABOUT YOUR NEW TAPE DRIVE
The recommended and simplest way of connecting a tape drive to your HP or non-HP
SAS server, is to purchase and install one of the supported HBAs, see
www.hp.com/go/connect. A cable is supplied with the tape drive to connect to an
external port on a dedicated HBA.
The supplied cable may also be used to connect to an active external port on the host
SAS controller.
An alternative option for HP ProLiant servers is to connect to an internal port on the
server's SAS controller. This option uses an HP SAS split cable, which must be
purchased separately. Be sure to purchase the correct cable for your connector type -
mini-SAS or Infiniband-style SAS.
• HP SAS split cables contain four data paths, which normally support up to four
hard disks. Both the HP SAS Infiniband and the HP Mini-SAS split cables divert
one of these data paths to the tape drive.
• Use this option with care; it requires a clear understanding of your hard disk
configuration.
For the most up-to-date information about supported SAS HBAs and cabling
configurations, refer to www.hp.com/go/connect and be sure to check the details of the
specific tape drive and server combination that you require.
© 2009 Hewlett-Packard Development Company, L.P.
Printed in the EU
www.hp.com
DW093-90901
All manuals and user guides at all-guides.com
For detailed, step-by-step installation instructions, print the "User Guide" from the
Documentation link on the HP StorageWorks CD-ROM.
WARNING: To avoid personal injury or damage to the server or tape drive,
disconnect your server from the mains power supply before installing the tape drive.
To avoid damage to server or tape drive observe all recommended anti-static and
power-grounding precautions, as specified in your server and tape drive manuals.
For detailed safety information, see the Safety Booklet on the CD-ROM.
1
Refer to www.hp.com/go/connect
Before you install your tape drive, always refer to www.hp.com/go/connect
• Is connection to your SAS server supported?
• Which HBAs are recommended for dedicated tape connect?
• If you connect to the host SAS controller (not recommended), does it have an active
external port? The supplied cable is suitable for this installation.
• If you decide to connect to an internal SAS port, which HP SAS cable should you purchase
- mini-SAS or Infiniband-style?
• If you connect to an internal port on the host SAS controller, does it have a spare SAS
port to which you can attach the HP SAS split cable or must you use the HP SAS split
cable to replace one of the existing cables? If so, will you lose the use of a hard disk
drive bay and which one will it be?
Not sure how to use go/connect?
Select tape backup and navigate down to the Hardware Compatibility table for your
make of server. The server/tape drive matrix shows top-level compatibility, but be sure to
click on the box for your combination of server and tape drive to display a further page
with detailed connectivity information.
2
Decide on your installation model
This poster describes how to connect an HP StorageWorks DAT 320 or DAT 160 SAS
tape drive to an external port using the supplied SAS cable or to an internal port using
one of the HP SAS split cables.
You may damage your server configuration, if you follow the wrong cabling instructions.
Use the following diagram to determine which instructions on this poster are appropriate
for your server.
Server has spare
Yes
separate HBA for
dedicated tape
support?
No
OPTION 1:
Server has spare Install new HBA
Yes Yes
(Recommended)
PCI slot for addition and any required
Connect to
of dedicated HBA? drivers
external port
No
Host HBA Host HBA has
Yes Yes
supports tape active external
drive port?
No
No
Server has spare
No
PCI slot for
cable?
Yes
Host HBA has OPTION 2:
No
Yes
spare internal Connect to spare
SAS port?
internal port
No
No
Need to
disconnect bay?
Yes
OPTION 3:
No Yes
Cannot install
OK to lose bay? Replace existing
SAS drive
SAS cable
NOTE: The supplied cable connects to an external HBA. If you wish to connect
the tape drive to an internal port on the server's host SAS controller, be sure to
purchase the appropriate split cable for your connector type (Infiniband-style or
mini-SAS).
Options 2 and 3 require a spare PCI slot because the cable and SAS connector to
the tape drive are threaded through a PCI slot on the server's back panel. Option 1
requires a spare PCI slot if you install a dedicated HBA (recommended).
Option 1: Connect to an external SAS port
(recommended for all HP and non-HP servers)
A SAS cable for connection to an external port is provided with the DAT 320 tape drive.
This is suitable for connecting to a dedicated HBA (recommended) or to an active external
port on the host controller. See http:\\www.hp.com\go\connect
Supplied SAS Cable
to find out:
TIP: The CD-ROM contains a driver install package for Windows. We recommend
that you use the installer package to install the drivers BEFORE you connect the tape
drive.
1. Connect the SAS cable to the server
1 SAS Cable 2 SAS connector
2. Connect the cables to the tape drive
1 SAS cable 2 Power cord 3 Power switch (DAT 320 only)
NOTE: The power switch on the DAT 160 is on the rear panel.
3. Power up the tape drive and server
Switch on the tape drive and power up the server. Watch the boot screen carefully after
installation. Check to see that the new SAS tape drive is listed in the boot sequence.
If there are any error or unexpected messages go back and check the SAS cabling carefully.
4 Complete the installation
• Install drivers. The HP Tape driver (available on the CD-ROM or from
http: www.hp.com/support) is recommended for use with Windows operating
systems, but always check whether your software application requires you to use its
own driver. For other operating systems patch to the latest version of the operating
system and following the instructions in the patch documentation. See also the "UNIX
Configuration Guide" on the CD-ROM.
• Upgrade your software application to ensure it works correctly with the tape drive.
When selecting the media to use with the backup application, you should select 8mm
media with DAT 320 and DAT 160 tape drives. We do NOT recommend native
backup applications, such as Windows Backup, because they do not support the full
features of the tape drive and may cause performance problems.
• HP StorageWorks Library & Tape Tools (L&TT) is the recommended diagnostic and
support tool for your HP tape drive. Use it to verify installation and confirm that your
tape drive is functioning correctly before you use it for backup. It is available free at
www.hp.com/support/tapetools.
3
Choosing and looking after media
For optimum performance and storage capacity, always use the recommended cartridg
with your tape drive, and normally use only one cartridge per day.
for recommended HBAs.
NOTE: The DAT 320 tape drive is not compatible with 4 mm DAT 72/DDS-4 me
It may only be used with DAT 320 and DAT 160 media.
DDS data cartridge compatibility
DDS-4
DAT 320 not supported not supported
read/write read/write
DAT 160
(C5718A)
* Capacity assumes 2:1 compression.
NOTE: Many tape drive and backup failures are caused by damaged or badly
handled tape media. For detailed information on media care and best practice
to order online, refer to www.hp.com/go/storagemedia/dds.
DDS cleaning cartridge compatibility
Q2039A
DAT 320 supported
DAT 160 not supported
NOTE: DAT 320 tape drives: only use the cleaning cartridge if the Clean LED i
flashing. DAT 160 tape drives: HP recommends weekly cleaning.
4

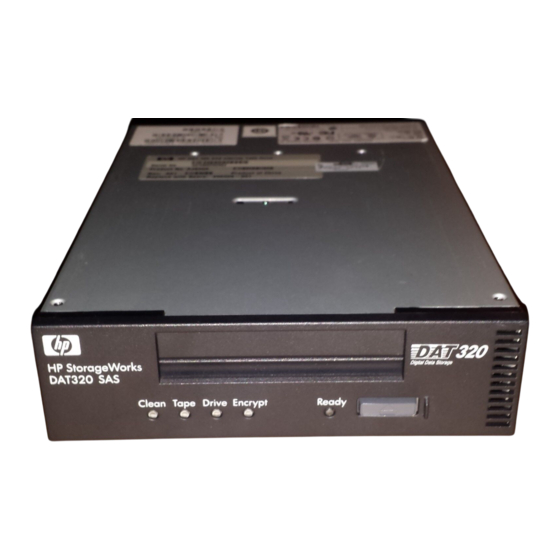

Understanding the front panel LEDs
DAT 320 and DAT 160
Clean – amber
• Off: the drive does not require cleaning
• Flashing: the drive needs cleaning
Tape – amber
• Off: no fault has been detected
• Flashing: the cartridge currently in the drive is
faulty (damaged or unsupported).
Drive – amber
• Off: no fault has been detected
• Flashing: the drive mechanism has detected a
hardware error
Ready – green
• On: the drive is ready for use and there is
media in the drive
• Off: drive power is off or there is no media
loaded
• Flashing: the drive is busy
For detailed information about other LED sequences and how to operate your DAT ta
drive refer to the "User Guide" on the CD-ROM.
Options 2 & 3 are shown overleaf
These offer an alternative cabling solution for some
HP ProLiant servers only
DAT 72 DAT 160 DAT 320
320 GB*
read/write
read/writ
(C801 1A)
(Q2032A
160 GB*
read/write
not supporte
(C8010A)
(C801 1A)
C8015A C5709A
not supported not supported
supported not supported
DAT 320 drives only
Encrypt – blue
• Off: no encryption activity, encryption
parameters are not loaded
• On: encryption parameters loaded, drive
ready to read/write encrypted data
• Flashing: reading/writing encrypted data
• Fast flash (with Drive LED): encryption rel
error
NOTE: The DAT 320 tape drive
includes hardware capable of
supporting data encryption and
decryption. To make use of this
feature you need a backup
application that supports hardw
encryption and DAT 320 media
